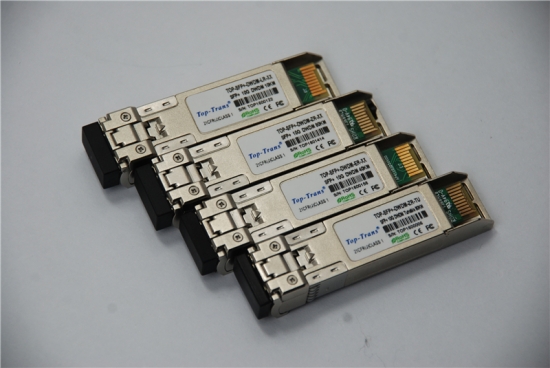

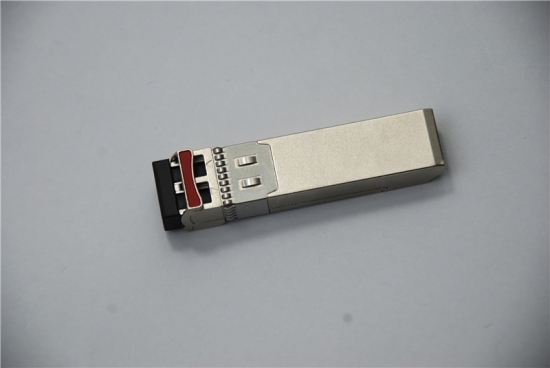

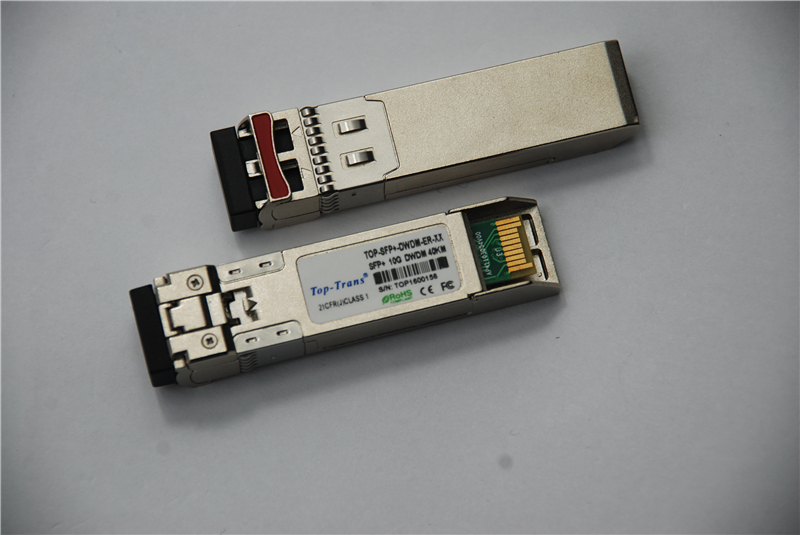

10G DWDM SFP ITU Grid 1170-1610nm 40km Telecom Equipment

This SFP+ ER DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km.


The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

  • item no.:

    TOP-SFP+-DWDM-ER-XX
  • lead time:

    1-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    EXW
  • price range:

    1-6/335$
  • Warranty:

    3 Years
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    40km
  • Wavelength:

    DWDM
product details

10G DWDM SFP ITU Grid 1170-1610nm 40km Telecom Equipment


PRODUCT FEATURES

Compliant with SFF-8431,SFF-8432 and IEE802.3ae

Cooled EML transmitter and PIN receiver

Suitable for use in 100GHz channel spacing DWDM systems

Digital Diagnostic Monitor Interface

Hot pluggable

link length up to 40km

10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.

Low power consumption

Operating case temperature: 0 to 70 °C



APPLICATIONS

10GBASE-ER

10G Fiber Channel


Quality Guarantee:

Top-trans SFP passed quality system verifications: CE, RoHS, FCC.


Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


Warranty:

If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


Shipping:

1. International Express: DHL, FedEx, UPS, TNT and EMS or others according to customers.

2. Customers specifying freight forwarders or negotiable shipping methods!

3. Delivery Time: 1 working day after received payment.


Payment Terms:
1. Payment: T/T, Western Union, MoneyGram,HSBC, as well as Cash Payment

2. MOQ: 1pcs

3. Warranty : 1 year

4. Package Informations: According to quantity ,we can provide professional package, 10/20/36 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
