Cisco Compatible RJ45 Copper SFP transceivers are high performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE802.3u. Copper SFP Transceiver Module supports 100Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports 10/100 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 25Mbps on each pair. The 10/100Base-T module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.
item no.:
Top-SFP-TF2lead time:
2-7 Working Days After Payment Receivedproduct orgin:
Chinabrand:
Top-Transshipping port:
ShenzhenWarranty:
3 YearsCondition:
CompatibleTemperature:
0°C to 70°CData Rate:
10/100 MDistance:
100 MWavelength:
N/AConnector:
RJ45

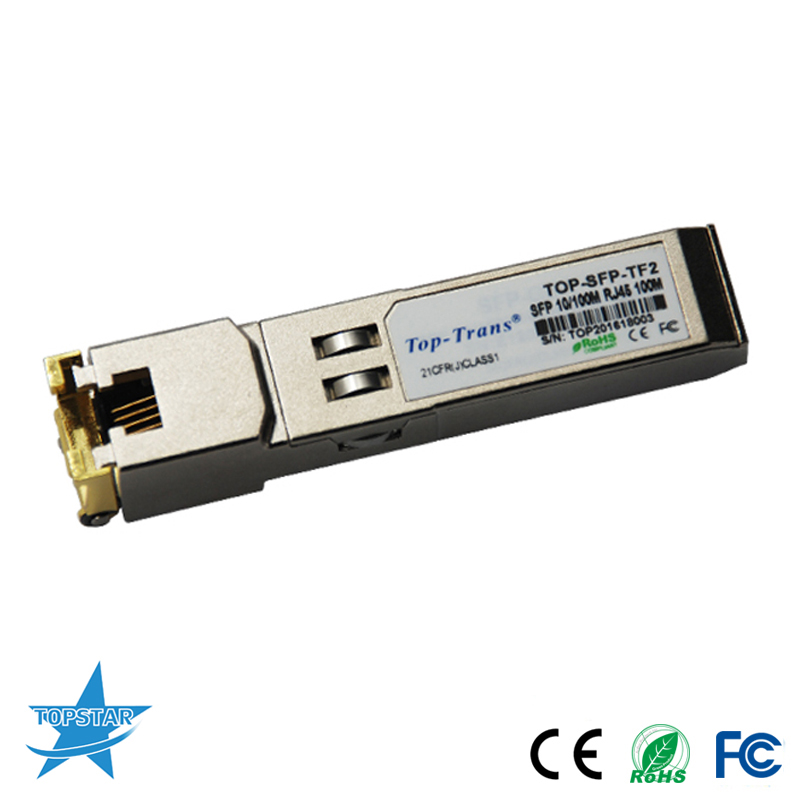

Cisco Compatible RJ45 Copper SFP Transceiver Module 10/100/1000Base-T
Cisco Compatible RJ45 Copper SFP is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.
Product Features
Hot-pluggable SFP footprint
Extended case temperature range (0°C to +70°C )
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Compatible with IEEE802.3u
Access to physical layer IC via 2-wire serial bus
A 10/100BASE-TX/ 100BASE-FX converter
Applications
This 100Base-TX Copper SFP Transceiver supports the SFP based switch100Base-FX ports that accept standard 100Base-FX optics SFP.

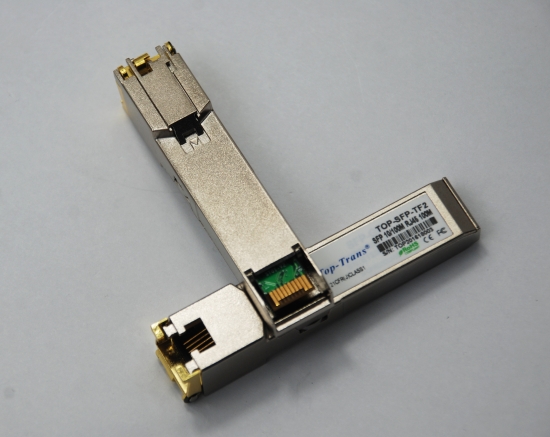

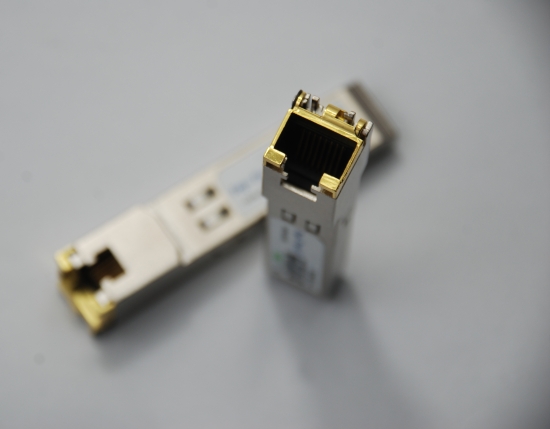

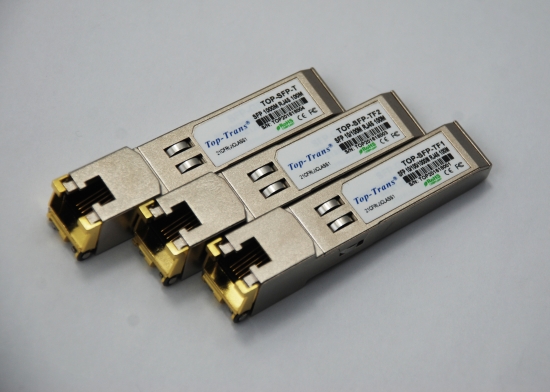

Below is the picture of 10/100Base-T
Professional Service
Copper SFP Transceiver Module is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
Compatibility
Tested in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc. devices to guarantee 100% compatibility with your target equipment.
OEM& ODM
Customized label and package. Both OEM and ODM service are offered.
