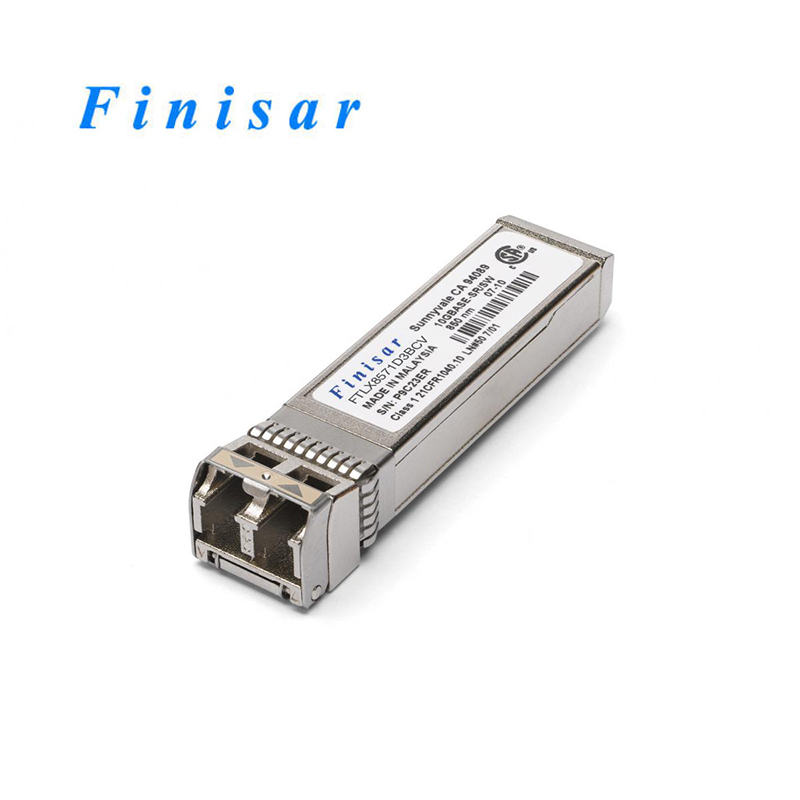

Compatible Finisal FTLX8574D3BCV 10G/1G Dual Rate (10GBASE-SR and 1000BASE-SX) 400m Multimode Datacom SFP+ Optical Transceiver

Compatible Finisal FTLX8574D3BCV 10G/1G Dual Rate (10GBASE-SR and 1000BASE-SX) 400m Multimode Datacom SFP+ Optical Transceiver,Distance:400 m,Data Rate (max):10.3 Gb/s,Protocol:Optical Gigabit Ethernet Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant,Low End Case Temperature (°C):0,High End Case Temperature (°C):70,Diagnostics:Digital,Transmitter:VCSEL,Receiver:PIN,Voltage Supply:3.3,Connector:LC,Wavelength:850nm Band

item no.:
10G SFP+ LC 400m
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
10.3 Gb/s
Distance:
400m
Wavelength:
850nm
Connector:
LC

contact now

product details

Product Description:

Distance:400 m
Data Rate (max):10.3 Gb/s
Protocol:Optical Gigabit Ethernet Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:850nm Band

Product Feature:

Hot-pluggable SFP+ footprint
Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
Power dissipation < 1W
RoHS-6 compliant (lead-free)
Single 3.3Vpower supply
Maximum link length of 400m on OM4 MMF
Uncooled 850nm VCSEL laser
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
Commercial temperature range: -5°C to 70°C
