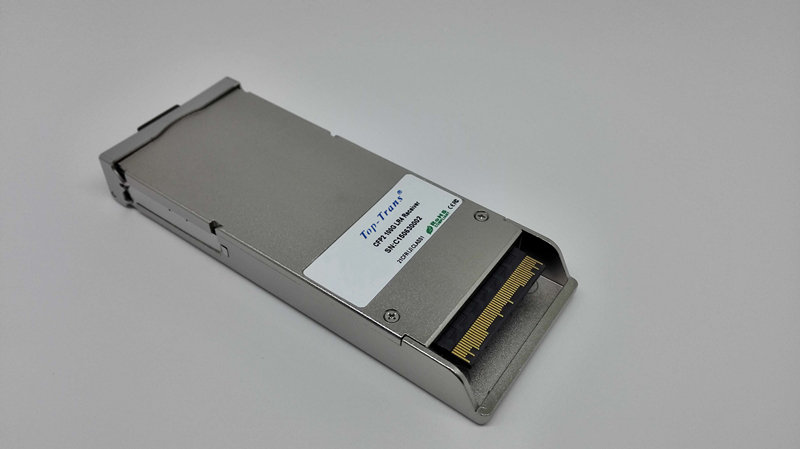

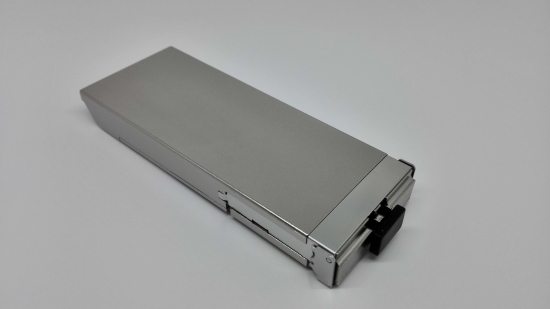

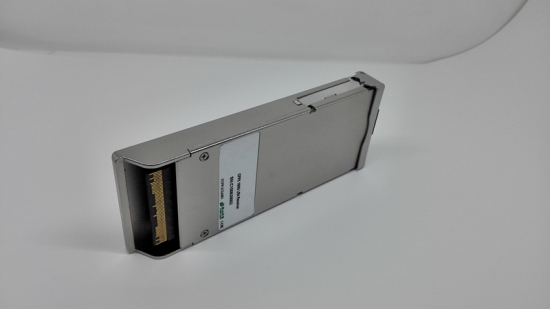

Topstar's CFP2 transceivers are designed for use in 100 Gigabit Ethernet links over 10km single module fiber, and it compliant to the CFP MSA CFP2 HW Specification and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics are available via MDIO as specified in the CFP MSA Management Interface Specification.
item no.:
TOP-CFP2-100G-LR4lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transpayment:
EXWWarranty:
3 YearsTemperature:
0℃~70℃Data Rate:
100GDistance:
10kmWavelength:
CWDMConnector:
Duplex LC
Finisar FTLC1121SDNL Compatible 100GBASE-LR4 10km 100gbase CFP2 Dimensions
Features
Hot Pluggable CFP2 MSA package
IEEE 802.3ba 100GBASE-LR4 compliant
CFP-MSA-CFP2-HW-Specification compliant
Up to 10km for G.652 SMF
Receiver: 4 x 25Gb/s PIN ROSA
Transmitter: 4 x 25Gb/s WDM TOSA (1295.56,1300.05,1304.58,1309.14nm)
4 x 28G Electrical Serial Interface (CEI-28G-VSR)
MDIO management interface with Digital Diagnostic
+3.3V power supply
Power consumption less than 9W
Compact size: 107.5 x 41.5 x 12.4 mm
Operating case temperature: 0 to +70 ℃
Duplex LC Receptacle
ROHs-6 compliant
Applications
100GE Routers and Switches
100G DWDM/OTN
100G Network Security And Monitoring
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
