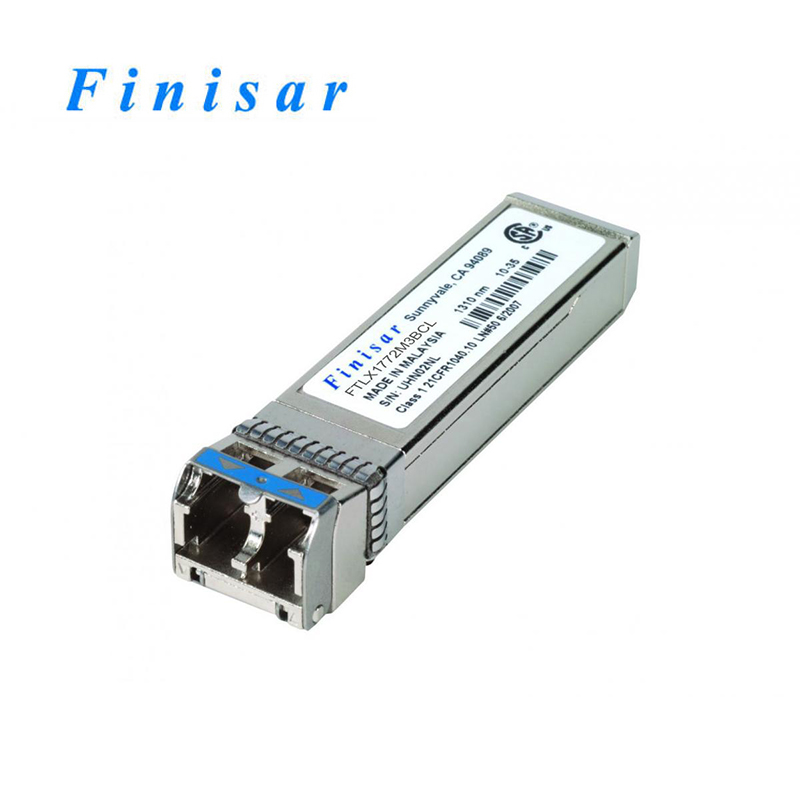

Compatible Finisar FTLX1772M3BCL 10G 40km 1310nm SFP+ Optical Transceiver

Low End Case Temperature (°C):-5，High End Case Temperature (°C):75，Diagnostics:Digital，Transmitter:DFB Laser，Receiver:APD，Voltage Supply:3.3，Connector:LC，Wavelength:1310nm Band

item no.:
10G SFP+ LC 40km
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
-5-75
Data Rate:
11.3 Gb/s
Distance:
40km
Wavelength:
1310nm
Connector:
LC

contact now

product details

Product Description：

Distance:40 km
Data Rate (max):11.3 Gb/s
Protocol:8x Fibre Channel Compatible SONET OC-192 Compatible 10x Fibre Channel Compatible 10 Gigabit Ethernet Compatible
Low End Case Temperature (°C):-5
High End Case Temperature (°C):75
Diagnostics:Digital
Transmitter:DFB Laser
Receiver:APD
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature：

Hot-pluggable SFP+ footprint
17dB optical link budget for up to 40km over G.652 single mode fiber
Supports 6.144, 8.5G and from 9.83 to 11.3 Gb/s bit rates
Uncooled 1310nm DFB laser
Power dissipation <1.5W
-5°C to 75°C temperature range
RoHS-6 compliant (lead-free)
Single 3.3V power supply
Uncooled 1310nm DFB laser
Duplex LC connector
Built-in digital diagnostic functions

Products series:

Topstar are one of the leading Manufacturers and Supplier of Fiber Optical transceivers in Shenzhen. Our main core business as below:

Original SFP module:We are a professional supplier of original (Finisar/ Cisco/ Brocade/ Huawei/ Avago/ Source/ WTD/ JDSU/ INTEL, etc) sfp module, more than 200,000pcs inventory per month in warehouse satisfy your one-stand demand.
