Optical Transceiver Module
40GB QSFP+
new products

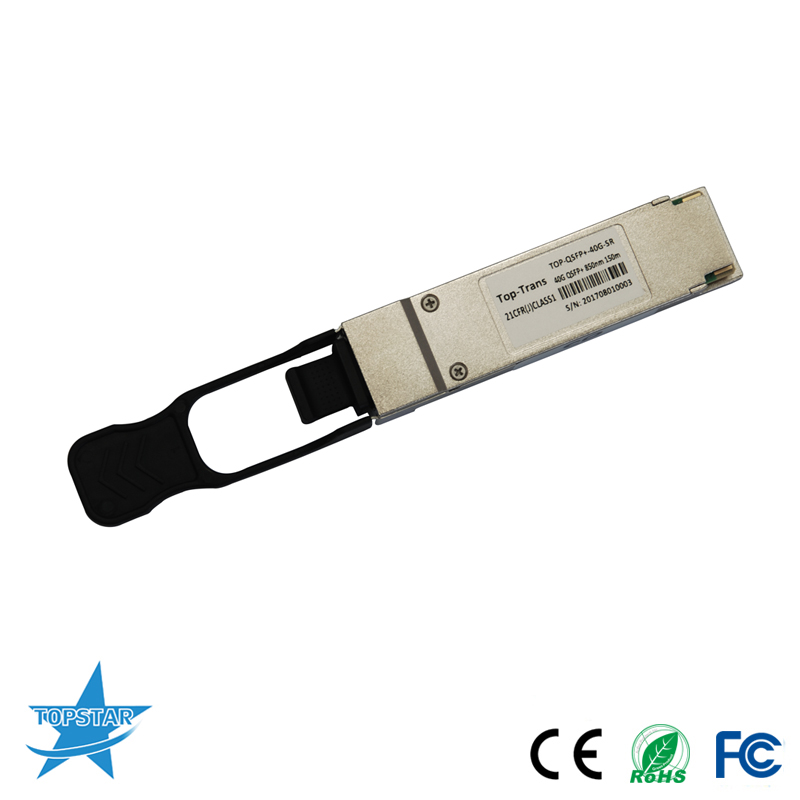

Compatible With Brocade XBR-40G-SR4-INT-0286 QSFP 40G 850nm 150m For Switch 57-1000129-01

RoHS Compliant 40Gb/s QSFP+ 850nm 150m Optical Transceiver Compatible With Brocade XBR-40G-SR4-INT-0286 57-1000129-01,is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications.

  • item no.:

    TOP-QSFP-40G-SR
  • brand:

    Brocade
  • Warranty:

    3 Years
  • Temperature:

    0~70℃
  • Data Rate:

    40G
  • Distance:

    150M
  • Wavelength:

    850nm
  • Connector:

    LC Duplex
product details


Compatible With Brocade XBR-40G-SR4-INT-0286 QSFP 40G 850nm 150m For Switch 57-1000129-01

PRODUCT FEATURES

  • 4 channels full-duplex transceiver modules
  • Transmission data rate up to 10.5Gbps per channel
  • 4 channels 850nm VCSEL array
  • 4 channels PIN photo detector array
  • Low power consumption <1.5W
  • Hot Pluggable QSFP form factor Maximum link length of 150m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
  • Single MPO connector receptacle
  • Built-in digital diagnostic functions
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant
APPLICATIONS
  • 40GBASE-SR4 40G Ethernet
  • Datacom/Telecom switch & router connections
  • Data Aggregation and Backplane Applications
  • Proprietary Protocol and Density Applications
  • Infiniband transmission at 4ch SDR, DDR and QDR
