The Topstar’s100Gb/s transceiver module for optical communication applications compliant to 100GBASE-SR4 of the IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of VCSEL optical signals over 4 multimode fibers for 100Gb/s optical transmission. Reversely, on the receiver side, the module receives 4 channels of VCSEL optical signals over 4 multimode fibers and then converts them to 4 output channels of electrical data.
item no.:
TOP-CFP4-100G-SR4lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transpayment:
EXWWarranty:
3 YearsTemperature:
0℃~70℃Data Rate:
100GDistance:
100mWavelength:
850nmConnector:
MPO

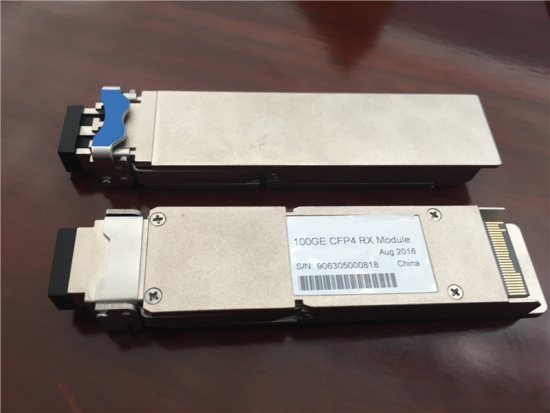

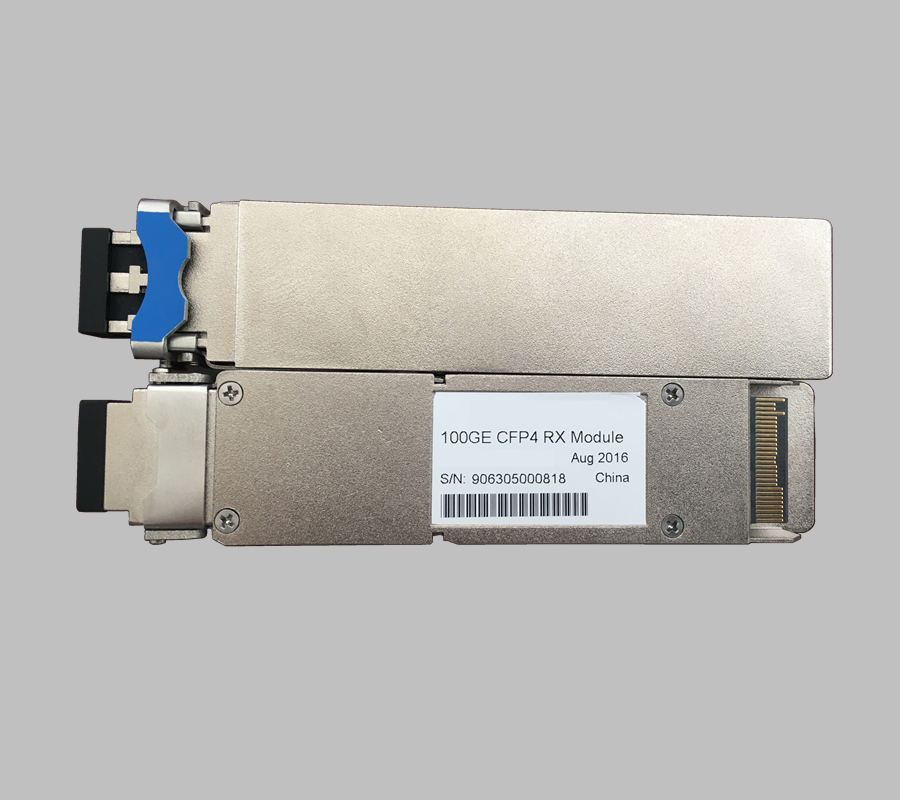

Finisar FTLC9141SENM Compatible 100GBASE-SR4 and OTN Multirate 850nm 100m CFP4 Module
Features
Hot pluggable CFP4 MSA form factor
Supports 103.1Gb/s to 112.2Gb/s aggregate bit rates
Compliant to IEEE 802.3bm 100GBASE-SR4
Power class 2 (<2.5W max)
Up to70m on OM3 and 100m OM4 MMF transmission
Up to 28Gb/s data rate per channel
Operating case temperature: 0~70oC
4x28G Electrical Serial Interface (CEI-28G-VSR)
MDIO management interface with digital diagnostic monitoring
Maximum power consumption 2.5W
Utilizes a standard 12/8 lane optical fiber with MPO connector
RoHS 6 compliant(lead free)
4×28Gb/s 850mm VCSEL-based transmitter
Applications
100GBASE-SR4 Ethernet
OTN OTU4
128G Fiber Channel
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
