Optical Transceiver Module
32G/16G/8G/10G SFP+ Transceiver
new products

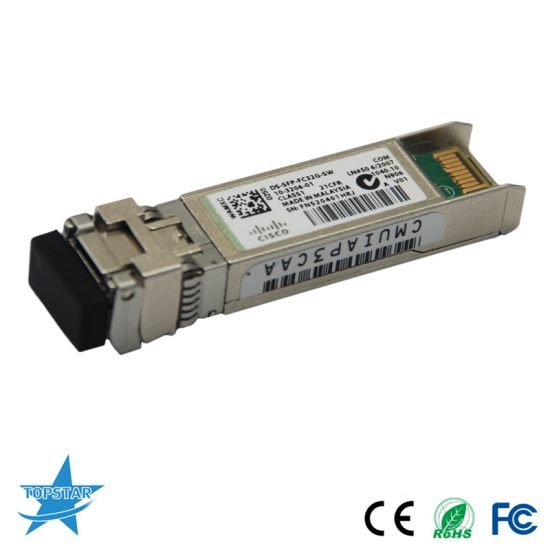

OEM 32G SFP+ 850nm Fiber Optical Transceiver Swicth equipment

OEM 32G SFP+ 850nm Fiber Optical Transceiver Swicth equipment


  • Up to 28.05 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • Built-in CDR with shut off control
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • 35m on 50/125μm MMF
  • 100m over M5F MMF (50/125μm OM4)
  • 70m over M5E MMF (50/125μm OM3)
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply


  • Operating temperature range: 0°C to 70°C/-40°C to 85°C



  • item no.:

    32G SFP+ SR 100m
  • brand:

    Top-Trans
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    32G
  • Distance:

    100m
  • Wavelength:

    850nm
  • Connector:

    LC
product details

Features

  • Up to 28.05 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • Built-in CDR with shut off control
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant
  • 35m on 50/125μm MMF
  • 100m over M5F MMF (50/125μm OM4)
  • 70m over M5E MMF (50/125μm OM3)
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply


  • Operating temperature range: 0°C to 70°C/-40°C to 85°C



Applications

  • Tri Rate 8.5/14.025/28.05 Gb/s Fibre Channel through Rate Select

Specifications

  • Distance:100 m
  • Data Rate (max):28.05 Gb/s
  • Protocol:8x Fibre Channel Compliant 16x Fibre Channel Compliant 32x Fibre Channel Compliant
  • Operating temperature range: 商业级0°C to 70°C/工业级-40°C to 85°C可选
  • Diagnostics:Digital
  • Transmitter:VCSEL
  • Receiver:PIN
  • Voltage Supply:3.3
  • Connector:LC
  • Wavelength:850nm Band
