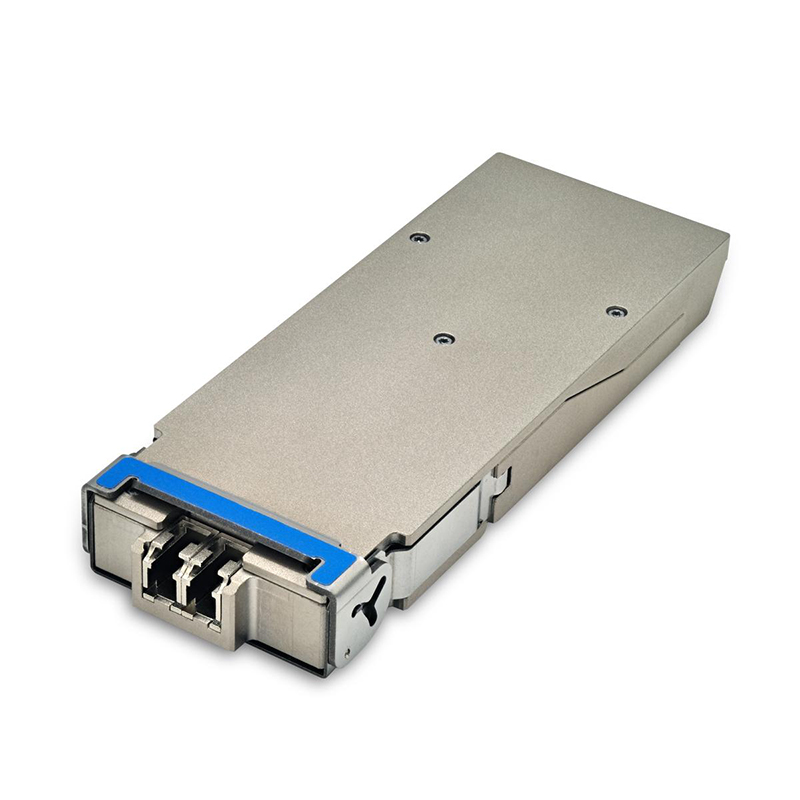

Used Finisar FTLC1122RDNL 100GBASE-LR4 10km Gen2 CFP2 Optical Transceiver

Low End Case Temperature (°C):0，High End Case Temperature (°C):75，Diagnostics:Digital，Transmitter:4x LWDM DFB Laser，Receiver:PIN，Voltage Supply:3.3，Connector:LC，Wavelength:1310nm Band

item no.:
100G CFP2 LR4 10km
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-75
Data Rate:
100G
Distance:
10km
Wavelength:
1310nm
Connector:
LC

contact now

product details

Product Description:

Distance:10 km
Data Rate (max):103.1 Gb/s
Protocol:100G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):75
Diagnostics:Digital
Transmitter:4x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Feature:

Hot-pluggable CFP2 form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation < 5W
RoHS compliant
Commercial case temperature range of 0°C to 75°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x26Gb/s DFB-based LAN-WDM transmitter
4x26G electrical interface
Duplex LC receptacles
MDIO management interface
