Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch
read more
The Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation,
read more
Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers
read more
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28
read more
Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers
read more
12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498
read more
Finisar’s FTLC9554REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA. They are capable of operating (a) without forward error correction (FEC) provided by the host, (b) with reduced Firecode 74 FEC present per IEEE 802.3by2 25GBASE-SR and Clause 74, or (c) with full RS FEC present per IEEE 802.3bm3 100GBASE-SR4, Clause 91, and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-2141. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.
item no.:
FTLC9554REPMlead time:
2-3 working daysproduct orgin:
Malaysiabrand:
Finisarshipping port:
Shenzhenpayment:
ex-wWarranty:
1 YearCondition:
NewTemperature:
0℃~70℃Data Rate:
100GDistance:
40mWavelength:
850nmConnector:
MPO

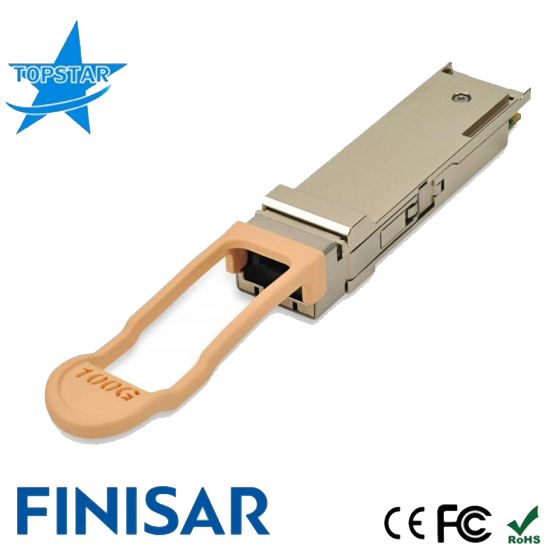

Finisar FTLC9554REPM 100G QSFP28 SR4 850nm 40m MPO Multimode 100G Ethernet Transceiver
Finisar’s FTLC9554REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber
Product Fectures
| Brand | Finisar |
| Original Place | Malaysia |
| Form Factor | QSFP28 |
| Part Number | FTLC9554REPM |
| Datarate | 100G |
| Distance | 40M |
| Fiber Type |
dual Fiber |
| Connector | MPO Connector |
| Temperature | 0-70°C |
|
Warranty |
1 year |
Details
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s to 112.2Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 40m on OM4 Multimode Fiber (MMF)
4x25Gb/s 850mm VCSEL-based transmitter
x25G electrical interface
Single MPO12 receptacle
I2C management interface
APPLICATIONS
100GBASE-SR4 100G Ethernet
128G Fibre Channel
4x28Gb/s Multimode OTN
prev :
Hot-pluggable Compatible FTLC9152RGPL QSFP28 Finisar 100G 100m SWDM4 QSFP28 Optical Transceivernext :
Used Finisar FTLC9551SEPM QSFP28 ONT OUT4/100GBASE-SR4 112.2Gb/s 850nm 100M OM4 MMF Transceiver
Finisar FTL410QE4C Compatible 40GBASE SR4 40GBASE-SR4 850nm 150m Gen4 QSFP+ Fiber Module
Finisar's FTL410QE4C 40G SR4 QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4* 10GBASE-SR.
Compatible Finisar FTLX8511D3BTL 10GB 10GBASE-SR 850nm 300M XFP Transceiver
This product is a 10Gb/s SR 850nm XFP transceiver module,which is 10GBASE 300M XFP. Finisar FTLX8511D3BTL transceiver has a maximum reach of 300m at 10.5 Gb/s data rate.
Compatible Finisar FTLX1413D3BCL 10GBASE-LR 10G 1310nm 10KM XFP Transceiver
This product is a 10Gb/s LR XFP transceiver module,which is 10GBASE 1310nm 10KM XFP. Finisar FTLX1413D3BCL transceiver has a maximum reach of 10km at 10.5 Gb/s data rate.
Compatible Finisar FTLC9152RGPL 100G QSFP28 850nm SR4 SWDM4 Transceiver
Finisar’s FTLC9152RGPL 100G QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. View datasheets, stock and pricing, or find other Fiber Optic Transceivers on www.opticalmodulemanufacturers.com.
Compatible Finisar FTLC9551SEPM 100GBASE-SR4 OTU4 & 128G Fibre Channel Multirate 100m QSFP28 Transceiver
Finisar’s FTLC9551SEPM QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. View datasheets, stock and pricing, or find other Fiber Optic Transceivers on www.opticalmodulemanufacturers.com.
Compatible Finisar FTLC9554REPM 100GBASE-SR4 100GB QSFP28 Optical Transceiver
Finisar’s FTLC9554REPM QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. View datasheets, stock and pricing, or find other Fiber Optic Transceivers on www.opticalmodulemanufacturers.com.
Compatible Finisar FTLC1152RGPL 100GE CWDM4 1310nm 2km QSFP28 Module
Finisar’s FTLC1152RGPL 2KM QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. View datasheets, stock and pricing, or find other Fiber Optic Transceivers on www.opticalmodulemanufacturers.com.
Compatible Finisar FTLC1152RGPL6 100G CWDM4 1310nm 500M Lite QSFP28
Finisar’s FTLC1152RGPL6 QSFP28 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. View datasheets, stock and pricing, or find other Fiber Optic Transceivers on www.opticalmodulemanufacturers.com.
