Compatible 100G QSFP28 4WDM 10km optical transceiver with Hot-pluggable For Fibre Channel and 100G Ethernet SMF 5G Network transceiver module

100G QSFP28
new products

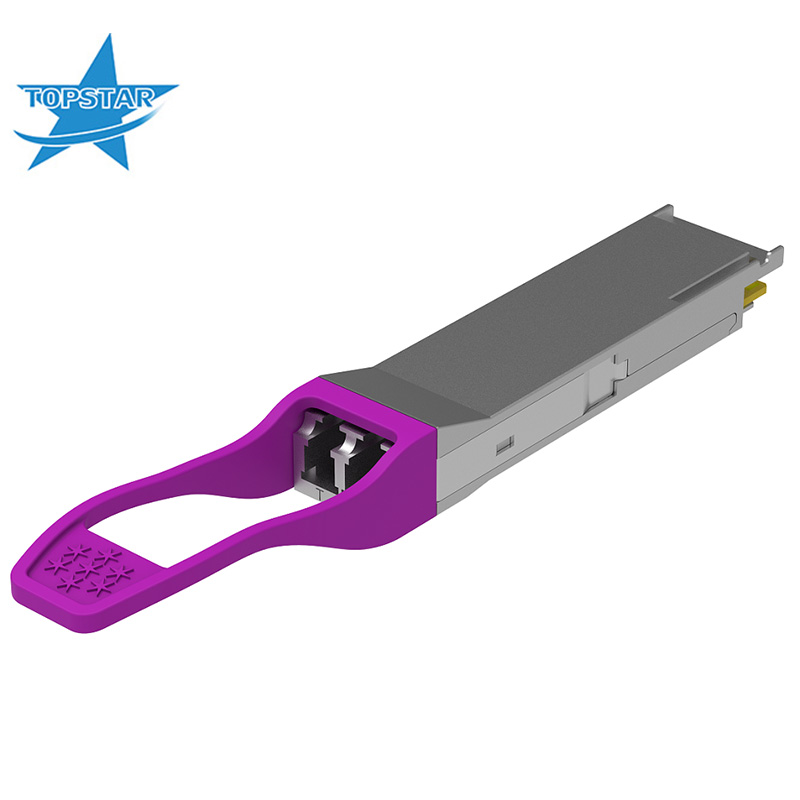

100G QSFP28 4WDM 10km
100G QSFP28 4WDM 10km

Compatible 100G QSFP28 4WDM 10km optical transceiver with Hot-pluggable For Fibre Channel and 100G Ethernet SMF 5G Network transceiver module

T100G QSFP28 4WDM 10km industrial optical transceiver (GQS-SPO101-4LR4T) is designed for 100G Ethernet and CPRI/eCPRI links reach up to 10km (w/ FEC) on duplex single-mode fibers.，

4 channels full-duplex transceiver module，Hot-pluggable QSFP28 form factor，4 channels uncooled CWDM DFB transmitter and PIN ROSA，Compliant with QSFP28 MSA, 4WDM4-10 MSA, and CPRI/eCPRI，Data rate up to 103Gbps，4 CWDM wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm，Reach up to 10km on SMF with FEC，Low power consumption < 3.5W，Duplex LC receptacles，Operating case temperature range -40 to 85°C (I-temp)，Single 3.3V power supply，RoHS-6 compliant (lead free)

  • item no.:

    100G QSFP28 4WDM 10k

  • brand:

    Top-Trans

  • Warranty:

    3 Years

  • Condition:

    New

  • Temperature:

    -40℃～+85℃

  • Data Rate:

    4X25Gb/s

  • Distance:

    10km

  • Wavelength:

    1271nm, 1291nm, 1311nm, and 1331nm

  • Connector:

    duplex LC
contact now
product details

5G Network Optical Module 100G Ethernet And Fiber Channel 100G QSFP28 4WDM 10km Optical Transceiver SMF Optical Transceiver Industrial-Temperature For Data Centers

Features

Distance
  10 km
Data Rate (max)
 103.1 Gb/s
Protocol
 100G Ethernet Compliant
Low End Case Temperature (°C)
 -40
High End Case Temperature (°C)
 85
Diagnostics
 Digital
Transmitter
 4x DFB Laser
Receiver
 PIN
Voltage Supply
 3.3
Connector
 LC
Wavelength
 1271nm, 1291nm, 1311nm, and 1331nm
Description

  • 4 channels full-duplex transceiver module
  • Hot-pluggable QSFP28 form factor
  • 4 channels uncooled CWDM DFB transmitter and PIN ROSA
  • Compliant with QSFP28 MSA, 4WDM4-10 MSA, and CPRI/eCPRI
  • Data rate up to 103Gbps
  • 4 CWDM wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm
  • Reach up to 10km on SMF with FEC
  • Low power consumption < 3.5W
  • Duplex LC receptacles
  • Operating case temperature range -40 to 85°C (I-temp)
  • Single 3.3V power supply
  • RoHS-6 compliant (lead free)
Applications
  • 100G Ethernet
  • CPRI/eCPRI
WHY CHOOSE US TOPSTAR
  • Professional testing equipments: Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner for producing process. Cisco/ Juniper/ Brocade/ Alcatel-lucent/Huawei/ERICSSON/ Datacom etc. guarantee compatibility.
  • Specialized in developing and producing the most Hi-tech products like: 40G QSFP+/ 100G CFP/CFP2/CFP4 / QSFP28 / 25G SFP28 / 200G QSFP56 /400G QSFP DD/400G OSFP .  Every month sales qty transceivers  more than 10W pcs .
  • OEM Compatible  transceivers  have  3-year warranty , support 3 months unconditional  return , 1 year replacement  or repair . Brand transceivers  have 1 year warranty .
  • Stocks holds more than 200,000 transceivers at any one time for immediate delivery. Shenzhen sales center, Shenzhen OEM/ODM factory , Shenzhen  warehouse , HK warehouse  , USA  San Francisco  branch  to support fast service and shipment .

tags : 100G QSFP28 4WDM 10km industrial optical transceiver SMF Duplex LC with Hot-pluggable Fibre Channel and 100G Ethernet 5G Network transceiver module
