Compatible 100G QSFP28 CWDM4 2km industrial optical transceiver For Fibre Channel and 100G Ethernet SMF Duplex LC 5G Network transceiver module

100G QSFP28
new products

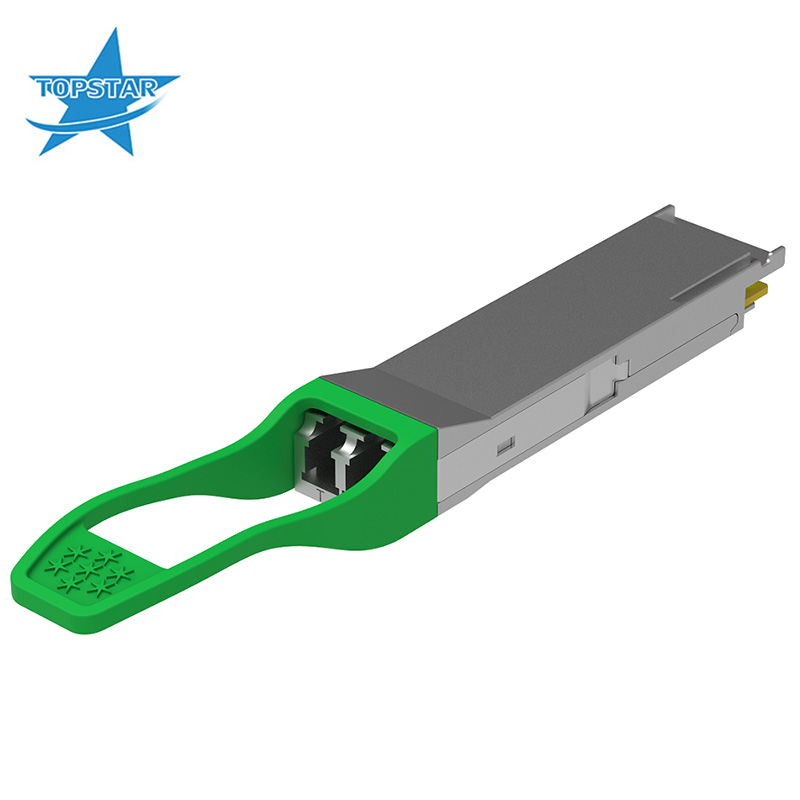

100GE CWDM4 2km QSFP28
100GE CWDM4 2km QSFP28

Compatible 100G QSFP28 CWDM4 2km industrial optical transceiver For Fibre Channel and 100G Ethernet SMF Duplex LC 5G Network transceiver module

QSFP28-100GE-2km QSFP28 transceiver modules are designed for use in 100G Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA, CWDM4 MSA, and relevant portions of IEEE P802.3bm. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. The optical transceiver is compliant per the RoHS Directive 2010.

  • item no.:

    100GE CWDM4 2 km QSF

  • brand:

    Top-Trans

  • Warranty:

    3 Years

  • Condition:

    New

  • Temperature:

    -40℃～+85℃

  • Data Rate:

    4X25Gb/s

  • Distance:

    2km

  • Wavelength:

    1310nm

  • Connector:

    duplex LC
contact now
product details

100GE CWDM4 2 km QSFP28 Optical Transceiver 5G Network Optical Module 100G Ethernet And Fiber Channel SMF Optical Transceiver Industrial-Temperature For Data Centers

Features


Distance
  2 km
Data Rate (max)
 103.1 Gb/s
Protocol
 100G Ethernet Compliant
Low End Case Temperature (°C)
 0
High End Case Temperature (°C)
 70
Diagnostics
 Digital
Transmitter
 4x DFB Laser
Receiver
 PIN
Voltage Supply
 3.3
Connector
 LC
Wavelength
 1310nm Band
Description

  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rate
  • 3.5W maximum power dissipation
  • Single 3.3V power supply
  • Maximum link length of 2km on Single Mode Fiber (SMF)
  • 4x25Gb/s 1310nm DFB-based transmitter
  • 4x25G electrical interface
  • Full digital diagnostics functions
  • Integrated 4-channel CWDM mux/demux for duplex LC operation
  • Duplex LC receptacles
Applications
  • 100GBASE-LR4 100G Ethernet
WHY CHOOSE US TOPSTAR

  • Professional testing equipments: Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner for producing process. Cisco/ Juniper/ Brocade/ Alcatel-lucent/Huawei/ERICSSON/ Datacom etc. guarantee compatibility.
  • Specialized in developing and producing the most Hi-tech products like: 40G QSFP+/ 100G CFP/CFP2/CFP4 / QSFP28 / 25G SFP28 / 200G QSFP56 /400G QSFP DD/400G OSFP .  Every month sales qty transceivers  more than 10W pcs .
  • OEM Compatible  transceivers  have  3-year warranty , support 3 months unconditional  return , 1 year replacement  or repair . Brand transceivers  have 1 year warranty .
  • Stocks holds more than 200,000 transceivers at any one time for immediate delivery. Shenzhen sales center, Shenzhen OEM/ODM factory , Shenzhen  warehouse , HK warehouse  , USA  San Francisco  branch  to support fast service and shipment .

tags : 5G Network transceiver module 100G QSFP28 CWDM4 2km industrial optical transceiver Fibre Channel and 100G Ethernet SMF Duplex LC Hot-pluggable QSFP28
