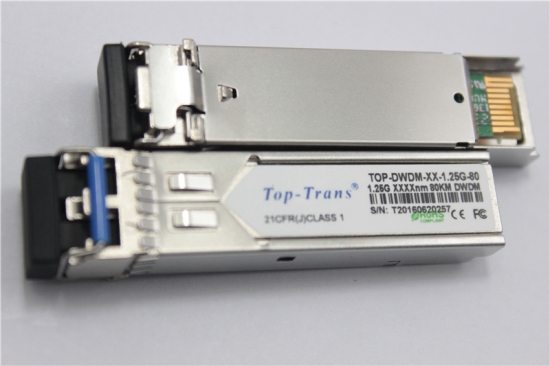

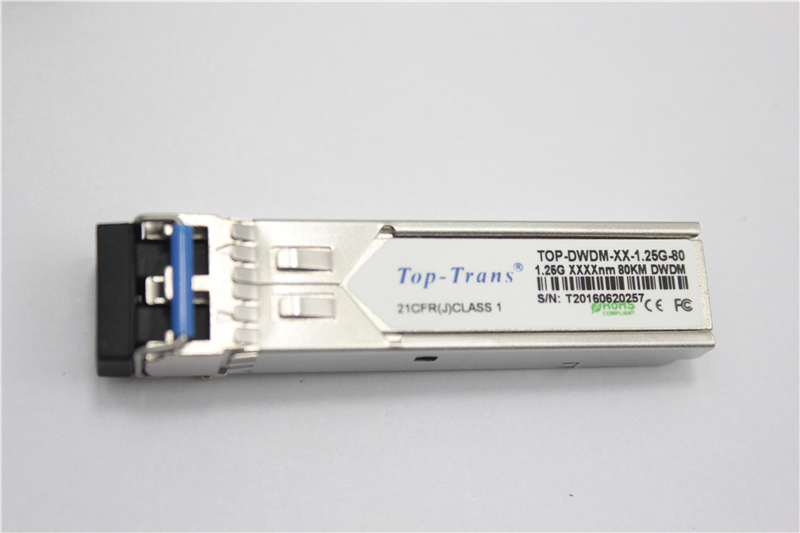

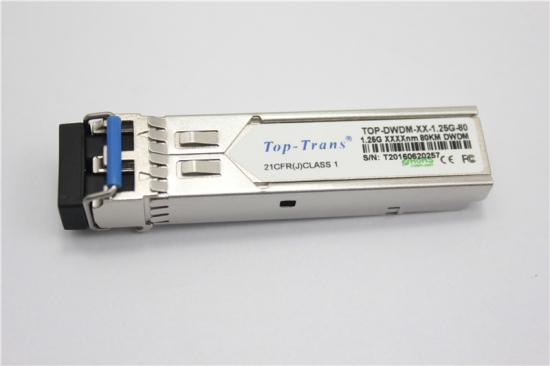

Topstar's TOP-DWDM-XX-1.25G-80 is a very compact 1.25Gb/s optical transceiver module for serial optical communication applications at 1.25Gb/s. The TOP-DWDM-XX-1.25G-80 converts a 1.25Gb/s serial electrical data stream to 2.67Gb/s optical output signal and a 1.25Gb/s optical input signal to 1.25Gb/s serial electrical data streams. The high speed 2.67Gb/s electrical interface is fully compliant with SFI specification.
item no.:
TOP-DWDM-XX-1.25-80lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
EXWprice range:
1-6/128$Warranty:
3 YearsTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
1.25GDistance:
80kmWavelength:
DWDMConnector:
Dual LC
SFP 1G Transceivers 1.25G C/L-Band ITU 80km DWDM Network Telecom Mux
Features
Hot-Pluggable
Duplex LC connector
Up to 2.67Gb/s data rate
100GHz ITU Grid, C Band
DWDM COOLED DFB transmitter, PIN photo-detector
SMF links up to 80km
2-wire interface for management specifications compliant with SFF 8472 Digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Temperature Range: 0~ 70°C
RoHS compliant
Applications
1G Fibre channel
DWDM Networks
Fibre channel
Professional Service

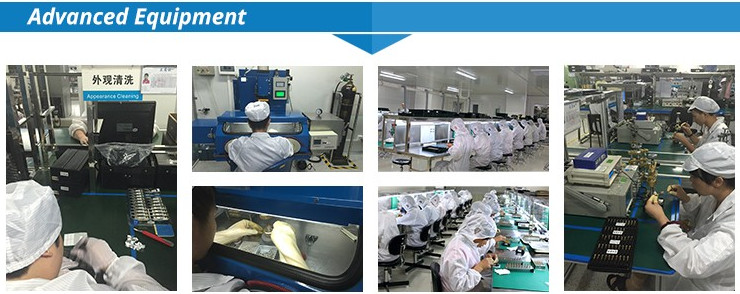

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
