INNOLIGHT TR-FC13T-NAM 100G QSFP28 Module CWDM4 IR4 1310m 2km

INNOLIGHT TR-FC13T-NAM 100G QSFP28 Module CWDM4 IR4 1310m 2km
  • item no.:

    QSFP28 100G LR4
  • lead time:

    2-3 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    ex-w
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    10℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    100G
  • Distance:

    2km
  • Wavelength:

    CWDM
  • Connector:

    LC
product details

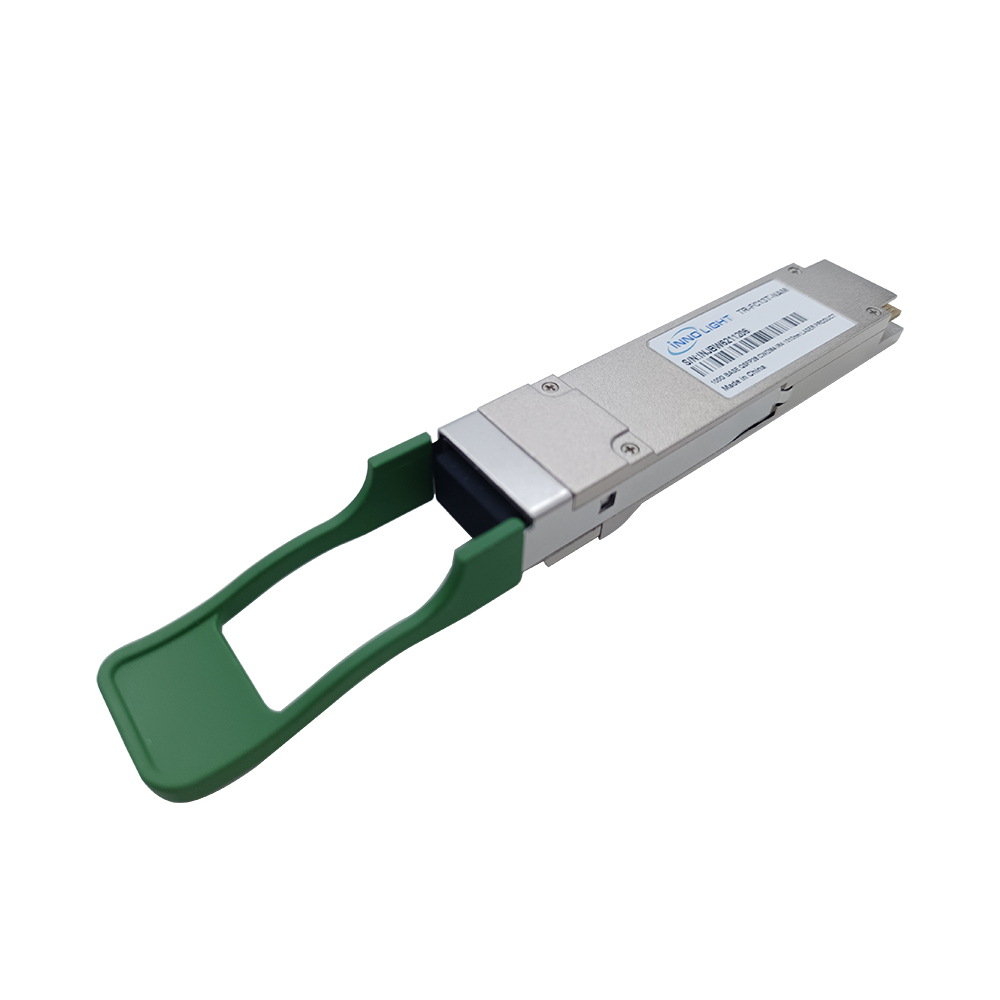

INNOLIGHT TR-FC13T-NAM 100Gb QSFP28 Module CWDM4 IR4 1310m 2km Optical Transceiver



Innolight's TR-FC13T-NAM QSFP28 100G Optical Transceiver's Overview

This 100G QSFP28 transceiver with central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.


This product converts the 4-channel 100Gb/s electrical input data into CWDM optical signals (light), by a driven 4-wavelength Distributed Feedback Laser (DFB) array. The light is combined by the MUX parts as a 100Gb/s data, propagating out of the transmitter module from the SMF. The receiver module accepts the 100Gb/s CWDM optical signals input, and de-multiplexes it into 4 individual 25Gb/s channels with different wavelength. Each wavelength light is collected by a discrete photo diode, and then outputted as electric data after amplified by a TIA and a post amplifier. Figure 1 shows the functional block diagram of this product.



Features


• QSFP28 MSA compliant
• 4 CWDM lanes MUX/DEMUX design
• Supports 103.1Gb/s aggregate bit rate
• 100G CWDM4 MSA Technical Spec Rev1.1
• Up to 2km transmission on single mode fiber (SMF) with FEC
• Operating case temperature: 0 to 70oC
• 4x25G electrical interface (OIF CEI-28G-VSR)
• Maximum power consumption 3.5W
• LC duplex connector
• RoHS compliant


Applications

• Data Center Interconnect

• 100G Ethernet

• Infiniband QDR and DDR interconnects

• Enterprise networking


Parameters for the Intel QSFP28 100G Optical Transceiver:

Fiber Type OS2 single-mode fiber
Connector LC duplex connector
Transmit and Receive Wavelength (nm) 1271, 1291, 1311 and 1331nm
Pull Tab Color Green
Tx power -6.5 to 2.5dBm
Rx sensitivity -10dBm
Power Consumption 3.5W
Dimensions (H x W x D)13.5 x 18.4 x 72.4 mm
