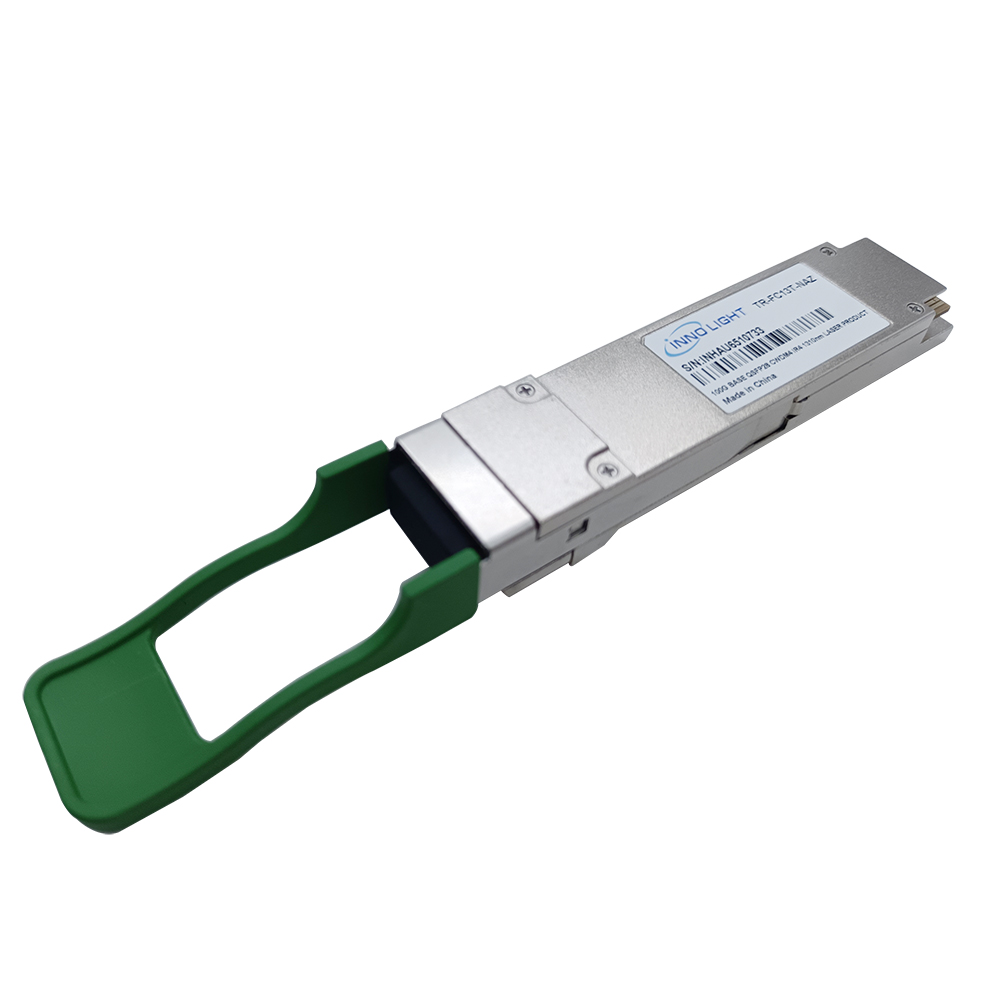

INNOLIGHT TR-FC13T-NAZ 100G QSFP28 Module CWDM4 2km For 100G Ethernet

100G QSFP28
new products

QSFP28 100G LR4
QSFP28 100G LR4

INNOLIGHT TR-FC13T-NAZ 100G QSFP28 Module CWDM4 2km For 100G Ethernet

The TR-FC13R-N00 QSFP28 100G receives 4 channels of 25Gb/s electrical data, which are processed by a 4- channel Clock and Data Recovery (CDR) IC that reshapes and reduces the jitter of each electrical signal.

  • item no.:

    QSFP28 100G LR4

  • lead time:

    2-3 working days

  • product orgin:

    China

  • brand:

    Top-Trans

  • shipping port:

    Shenzhen

  • payment:

    ex-w

  • Warranty:

    3 Years

  • Condition:

    New

  • Temperature:

    10℃~70℃/ -5℃~85℃/ -20℃~85℃

  • Data Rate:

    100G

  • Distance:

    2km

  • Wavelength:

    CWDM

  • Connector:

    LC
contact now
product details


INNOLIGHT TR-FC13T-NAZ 100G QSFP28 Module CWDM4 2km For 100G Ethernet



Fiber Type Single mode
Weight 0.06kg
Warranty 1 year
Tx power -6.5 to +2.5dBm
Rx sensitivity

-11.5 to +2.5 dBm

Extinction Ratio 3.5 dB
Power Consumption 3.5W
Applications 100G Ethernet



Features of QSFP28 100G TR-FC13T-NAZ


  • QSFP28 MSA compliant

  • 4 CWDM lanes MUX/DEMUX design

  • Supports 103.1Gb/s aggregate bit rate

  • 100G CWDM4 MSA Technical Spec Rev1.1

  • Up to 2km transmission on single mode fiber (SMF) with FEC

  • Operating case temperature: 0 to 70o C

  • 4x25G electrical interface (OIF CEI-28G-VSR)

  • Maximum power consumption 3.5W

  • LC duplex connector

  • RoHS compliant


APPLICATIONS of QSFP28 100G TR-FC13T-NAZ


  • Data Center Interconnect

  • 100G Ethernet

  • Infiniband QDR and DDR interconnects

  • Enterprise networking


Description of QSFP28 100G TR-FC13T-NAZ



Finisar’s TR-FC13T-NAZ QSFP28 100G is a transceiver module designed for 2km optical communication applications.


The design is compliant to 100GBASE CWDM4 MSA standard. The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals,


and multiplexes them into a single channel for 100Gb/s optical transmission.


Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
