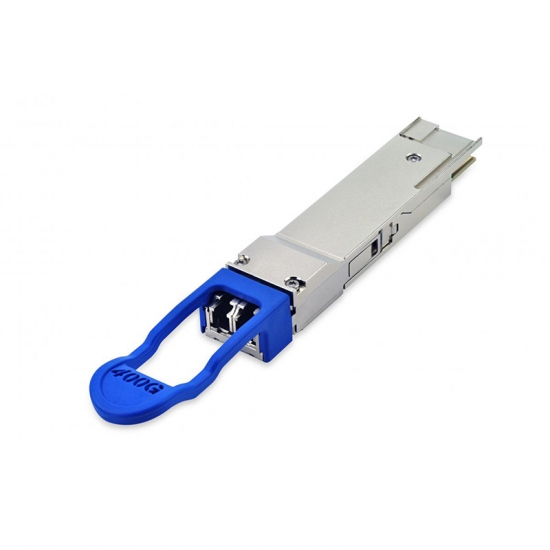

Used Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver
Distance:10 km，Data Rate (max):425 Gb/s，Protocol:400G Ethernet Compliant，Low End Case Temperature (°C):0，High End Case Temperature (°C):70，Diagnostics:Digital，Transmitter:8x LWDM DFB Laser，Receiver:PIN，Voltage Supply:3.3，Connector:LC，Wavelength:1310nm Band
item no.:
400G QSFP LR 10KMbrand:
FinisarWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
400GDistance:
10kmWavelength:
1310nmConnector:
Duplex LCProduct Descripiton:
Distance:10 km
Data Rate (max):425 Gb/s
Protocol:400G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:8x LWDM DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band
Product Feature:
Hot-pluggable QSFP-DD Type 2 form factor
Supports 425Gb/s aggregate bit rate
Power dissipation <13W
RoHS compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Aligned with IEEE 802.bs
8x50G PAM4 DFB-based LAN-WDM transmitter
8x50G PAM4 retimed 400GAUI-8 electrical interface
Duplex LC receptacles
I2C management interface
