FTCC1122E2PCL 200G QSFP56 transceiver modules are designed for use in 200 Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CMIS4.0, QSFP MSA and portions of IEEE P802.3bs. The optical transceiver is RoHS compliant as described in Application Note AN-2038.
item no.:
200GBASE-FR4 500mbrand:
Top-TransWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
200GDistance:
500mWavelength:
CWDM4Connector:
LCINNOLIGHT DATA CENTER
10G SFP+
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
| TR-PX13L-N00 | SFP+ LR | 10G | 1310nm DFB | PIN | -8.2 | 0.5 | - | -14.4 | <1w | 10km | 0-70 |
| TR-PX15E-N00 | SFP+ ER | 10G | 1550nm EML | PIN | -3 | 3 | - | -15.8 | <1.5w | 40km | 0~70 |
| TR-PX15Z-N00 | SFP+ ZR | 10G | 1550nm EML | APD | 0 | 4 | - | -24 | <1.8w | 80km | 0~70 |
25G SFP28
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
| TF-PYxxx-N00 | SFP28 AOC | 25G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 1.0 (each SFP28) | 100m | 0-70 |
| TR-PY85S-N00 | SFP28 SR | 25G | 850nm VCSEL | PIN | -8.4 | 2.4 | -10.3 | 2.4 | 1 | 100m | 0~70 |
| TR-PY13L-N00 | SFP28 LR | 25G | 1310nm DFB | PIN | -7 | 2 | -13.3 | 2 | 1 | 10km | 0~70 |
| TR-PY13E-N00 | SFP28 ER | 25G | 1310nm EML | APD | -3 | 6 | -21 | -4 | 1.5 | 40km | 0~70 |
| TR-PB85S-N00 | SFP28 32GFC SR | 28G | 850nm VCSEL | PIN | -6.2 | 2 | -10.3 | 2 | 1 | 100m | 0~70 |
| TR-PB13L-N00 | SFP28 32GFC LR | 28G | 1310nm DFB | PIN | -5 | 2 | -13.3 | 2 | 1.2 | 10km | 0~70 |
40G QSFP
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
| TR-QQ85S-N00 | QSFP+ eSR4 | 40G | 850nm VCSEL | PIN | -7.6 | 1 | -9.5 | 2.4 | 1.5 | 100m | 0-70 |
| TR-QQ85X-N00 | SFP28 SR | 40G | 850nm VCSEL | PIN | -7.3 | 1 | -9.9 | 2.4 | 1.5 | 300m | 0~70 |
| TR-QQ13T-N00 | QSFP+ IR4 | 40G | DFB CWDM | PIN | -7 | 2.3 | -11.7 | 2.3 | 3.5 | 10km | 0~70 |
| TR-QQ13L-N00 | QSFP+ LR4 | 40G | DFB CWDM | PIN | -7 | 2.3 | -21 | -4 | 1.5 | 40km | 0~70 |
| TR-QQ13E-N00 | QSFP+ ER4 | 40G | DFB CWDM | APD | -2.7 | 4.5 | -21.2 | -4.5 | 3.5 | 40km | 0~70 |
| TR-IQ13C-N00 | QSFP+ PSM IR4 | 40G | 1310nm DFB | PIN | -5.5 | 1.5 | -11.5 | 1.5 | 3.5 | 10km | 0~70 |
| TR-IQ13L-N00 | QSFP+ PSM LR4 | 40G | 1310nm DFB | PIN | -5.5 | 1.5 | -12.6 | 1.5 | 3.5 | 10km | 0~70 |
| TF-QQxxx-N00 | QSFP+ AOC | 40G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 1.5 (each QSFP+) | 100m | 0~70 |
| TR-QQ13Y-N00 | QSFP+ LX4(MMF/SMF) | 40G | DFB CWDM | PIN | -5 / -7 | 3.5 / 2.3 | -7 / -11.7 | 3.5 / 2.3 | 3.5 | 150m / 2km | 0~70 |
| TF-QPQXxxx-N00 | QSFP+ to 4x SFP+ AOC | 40G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 1.5 (QSFP+)0.8 (each SFP+) | 100m | 0~70 |
100G QSFP28
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
| TR-FC85S-N00 | QSFP28 SR4 | 100G | 850nm VCSEL | PIN | -8.4 | 2.4 | -10.3 | 2.4 | 2.5 | 100m | 0-70 |
| TR-FC13R-N00 | QSFP28 LR4 Ethernet | 100G | 1296-1309nm LWDM DFB | PIN | -4.3 | 4.5 | -10.6 | 4.5 | 4 | 10km | 0~70 |
| TR-FC13T-N00 | QSFP28 CWDM4 | 100G | DFB CWDM | PIN | -6.5 | 2.5 | -11.5 | 2.5 | 3.5 | 10km | 0~70 |
| TR-FC13D-N00 | QSFP28 ER4 Lite | 100G | 1296-1309nm LWDM EML | APD | -2.5 | 6.5 | -16.65 / -20.5 | -3.5 | 4.5 | 30km / 40km (w/ FEC) | 0~70 |
| TR-FC13D-NSN | QSFP28 ER4 Lite Dual Rates | 100G / 112G | 1296-1309nm LWDM EML | APD | -0.7 | 6.5 | -14.85 / -18.7 | -3.5 | 4.5 | 30km / 40km (w/ FEC) | 0~70 |
| TP-VC13Txxxx-N00 | QSFP28 PSM4 Pigtail | 100G | 1310nm DFB | PIN | -5.5 | 2 | -10.5 | 2 | 3.5 | 2km | 0~70 |
| TF-FCxxx-N00 | QSFP28 AOC | 100G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | N/A | 10km | 0~70 |
| TF-QQxxx-N00 | QSFP+ AOC | 100G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 2.5 (QSFP28)1.0 (each SFP28) | 100m | 0~70 |
| TR-VC13T-N00 | QSFP28 PSM4 | 100G | 1310nm DFB | PIN | -5.5 | 2 | -10.2 | 2 | 3.5 | 2km | 0~70 |
200G QSFP-DD
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
| T-FX4FNS-N00 | QSFP56 SR4 | 200G | 850nm VCSEL | PIN | -6.5 | 4 | -8.4 | 4 | 5.5 | 100m | 0~70 |
| T-FX4FNT-H00 | QSFP56 FR4 | 200G | EML CWDM4 | PIN | -4.2 | 4.7 | -8.2 | 4.7 | 6.5 | 2km | 15~65 |
| C-FXT4FNMxxx-N00 | QSFP56 200G to QSFP28 2*100G AOC | 200G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A |
8 (200G side) 4 (100G side) |
20m | 0~70 |
400G QSFP-DD SR8
| P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
| T-DQ8FNS-N00 | QSFP-DD SR8 | 400G | 850nm VCSEL | PIN | -6 | 4 | -7.9 | 4 | 12 | 100m | 0-70 |
| T-DP4CNH-N00 | QSFP-DD DR4 | 400G | 1310nm EML | PIN | -2.9 | 4 | -5.9 | 4 | 12 | 500m | 0~70 |
| T-DP4CNT-N00 | QSFP-DD DR4+ | 400G | 1310nm EML | PIN | -2.4 | 4 | -6.4 | 4.5 | 12 | 2km | 0~70 |
| T-DQ4CNT-N00 | QSFP-DD FR4 | 400G | EML CWDM4 | PIN | -3.3 | 3.5 | -7.3 | 3.5 | 12 | 2km | 0~70 |
| T-DQ4CNL-N00 | QSFP-DD LR4 | 400G | EML CWDM4 | PIN | -1.4 | 4.5 | -7.7 | -4.5 | 12 | 10km | 0~70 |
| C-DQ8FNMxxx-H00 | QSFP-DD AOC | 400G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 12.0 (each QSFP-DD) | 100m | 0~70 |
| T-DQ4CNE-N00 | QSFP-DD ER4 | 400G | EML LWDM4 | APD | 0.4 | 1.5 | -12.6 | -2.5 | 12.0 | 30km 40km (w/ FEC) | 0~70 |
Features
prev :
Original RTXM500-320 Optical Module Optical 200G QSFP56 LR4 Optical Transceivernext :
Original FTCC1112E2PCL Optical Module 200GBASE-FR4 2km QSFP56 Optical Transceiver
Compatible 200G QSFP56 LR4 10km with Hot-pluggable QSFP56 for 200G Ethernet 200GBASE-LR4 Fibre Channel 5G Network single-mode fibers
Designed for 200G Ethernet 200GBASE-LR4 links over duplex single-mode fibers,200G QSFP56 LR4 10km optical module (GQS-SPO201-LR4C) supports transmission distance up to 10km using LWDM wavelengths of 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm
Compatible 400G Ethernet And Fiber Channel 400G-ER8 40km SMF Optical Transceiver Industrial-Temperature For Data Centers 5G Network Optical Module
QSFP-DD optical module, QSFP-DD optical fiber module, QSFP-DD 200G optical module, QSFP-DD 200G optical fiber module, QSFP-DD 400G optical module, QSFP-DD 400G optical fiber module; currently QSFP28 optical module has four electrical channels. Each channel operates at 10Gbps or 25Gbps and supports 40G and 100G Ethernet applications.
Compatible 400G QSFP-DD FR8 PAM4 2km optical module Hot-pluggable QSFP-DD Duplex LC for 400G Ethernet 400GBASE-FR8 and 5G Network
Designed for 400G Ethernet 400GBASE-FR8 links over duplex single mode fibers, theTOPSTAR 400G QSFP-DD FR8 optical module (coming soon) supports transmission distance up to 2km using LWDM wavelengths (1273.55nm, 1277.89nm, 1282.26nm, 1286.66nm, 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm).
Compatible 200G QSFP56 FR4 2km Designed for 200G Ethernet 200GBASE-FR4 and Fibre Channel 5G Network transceiver module
QSFP-DD optical module, QSFP-DD optical fiber module, QSFP-DD 200G optical module, QSFP-DD 200G optical fiber module, QSFP-DD 400G optical module, QSFP-DD 400G optical fiber module; currently QSFP28 optical module has four electrical channels. Each channel operates at 10Gbps or 25Gbps and supports 40G and 100G Ethernet applications.
Compatible 200G QSFP56 ER4 40km 5G Network single-mode fibers transceiver module Duplex LC for 200G Ethernet 200GBASE-ER4 Fibre Channel
QSFP-DD optical module, QSFP-DD optical fiber module, QSFP-DD 200G optical module, QSFP-DD 200G optical fiber module, QSFP-DD 400G optical module, QSFP-DD 400G optical fiber module; currently QSFP28 optical module has four electrical channels. Each channel operates at 10Gbps or 25Gbps and supports 40G and 100G Ethernet applications.
Compatible Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver
Compatible Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver Data Rate (max):425 Gb/s，Protocol:400G Ethernet Compliant，Low End Case Temperature (°C):0，High End Case Temperature (°C):70，Diagnostics:Digital，Transmitter:8x LWDM DFB Laser，Receiver:PIN，Voltage Supply:3.3，Connector:LC，Wavelength:1310nm Band
Used Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver
Used Finisar FTCD1323E1PCL 400GBASE-LR8 QSFP-DD Optical Transceiver Distance:10 km，Data Rate (max):425 Gb/s，Protocol:400G Ethernet Compliant，Low End Case Temperature (°C):0，High End Case Temperature (°C):70，Diagnostics:Digital，Transmitter:8x LWDM DFB Laser，Receiver:PIN，Voltage Supply:3.3，Connector:LC，Wavelength:1310nm Band

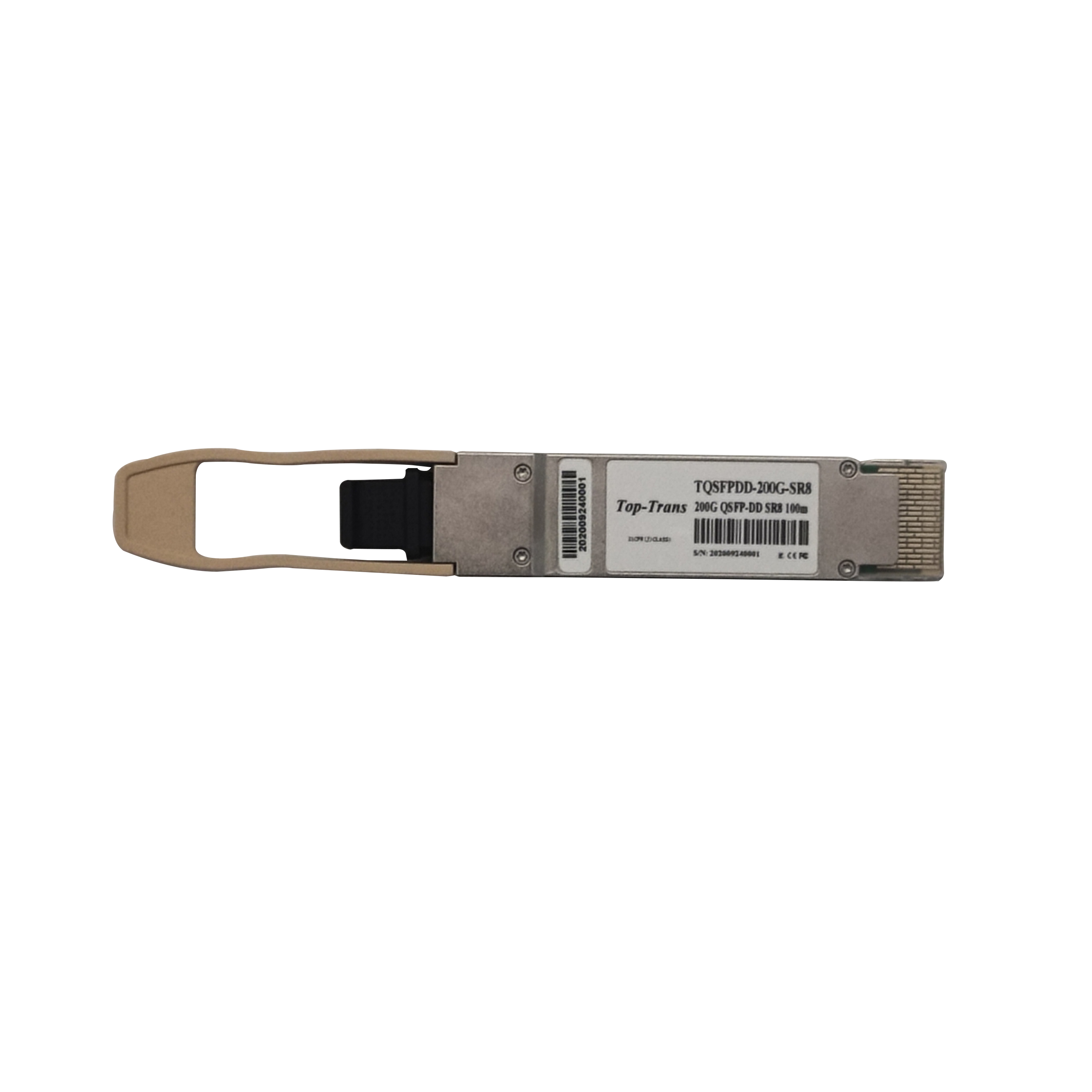

HOT-Pluggable TOP QSFP-DD 200G SR8 100m Optical Transceiver
HOT-Pluggable TOP QSFP-DD 200G SR8 100m Optical Transceiver The Topstar Technologies TOP-QSFP-200G-DD-SR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x100 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnect applications. It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm.
