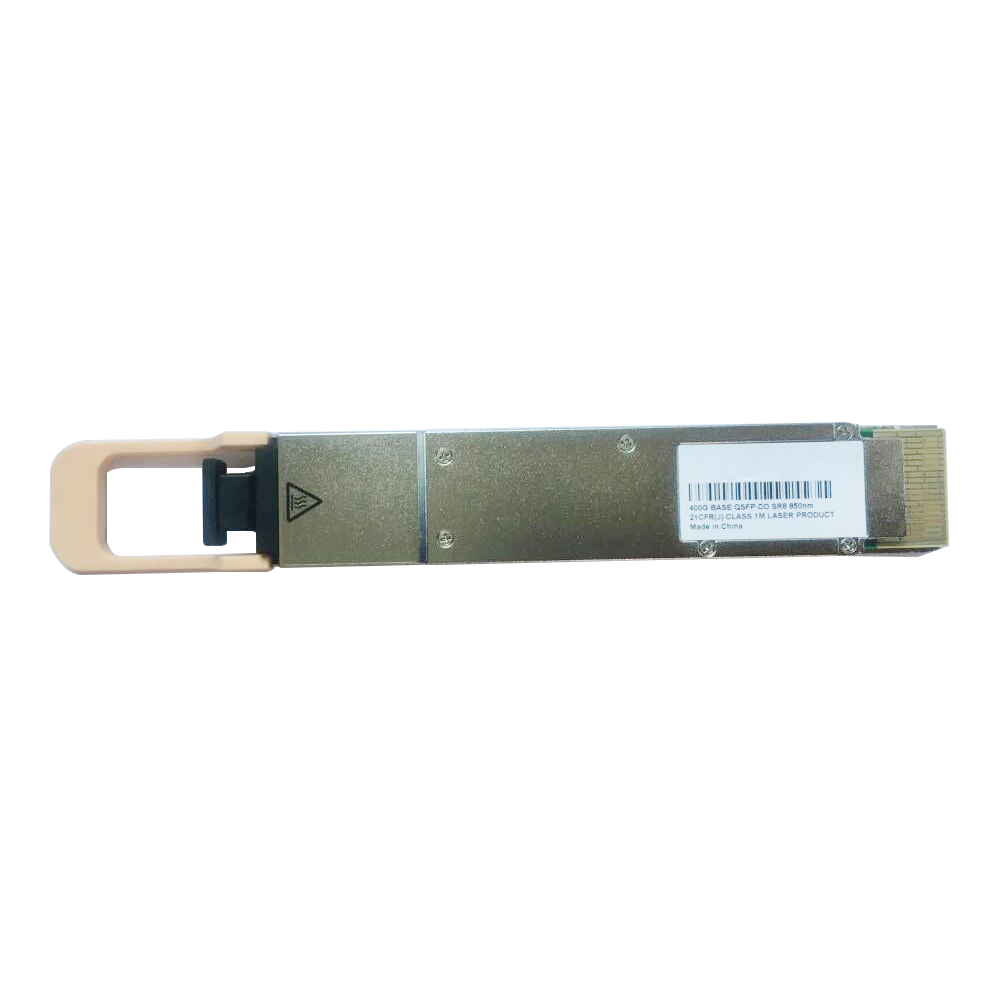

Original FTCD8613E2PCM Optical Module 400GBASE-SR8 QSFP-DD Optical Transceiver

FTCD8613E2PCM QSFP-DD SR8 transceiver modules are designed for use in Gigabit Ethernet links on up to 70m on OM3 MMF or 100m on OM4 MMF. They are compliant with the QSFP-DD MSA and portions of IEEE P802.3bs. Digital diagnostic functions are available via the I2C interface, as defined by the CMIS 4.0. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

  • item no.:

    400GBASE-SR8 100m
  • brand:

    Top-Trans
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    400G
  • Distance:

    100m
  • Wavelength:

    CWDM4
  • Connector:

    MPO
product details

INNOLIGHT DATA CENTER

10G SFP+

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-PX13L-N00 SFP+ LR 10G 1310nm DFB PIN -8.2 0.5 - -14.4 <1w 10km 0-70
TR-PX15E-N00 SFP+ ER 10G 1550nm EML PIN -3 3 - -15.8 <1.5w 40km 0~70
TR-PX15Z-N00 SFP+ ZR 10G 1550nm EML APD 0 4 - -24 <1.8w 80km 0~70

25G SFP28

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TF-PYxxx-N00 SFP28 AOC 25G 850nm VCSEL PIN N/A N/A N/A N/A 1.0 (each SFP28) 100m 0-70
TR-PY85S-N00 SFP28 SR 25G 850nm VCSEL PIN -8.4 2.4 -10.3 2.4 1 100m 0~70
TR-PY13L-N00 SFP28 LR 25G 1310nm DFB PIN -7 2 -13.3 2 1 10km 0~70
TR-PY13E-N00 SFP28 ER 25G 1310nm EML APD -3 6 -21 -4 1.5 40km 0~70
TR-PB85S-N00 SFP28 32GFC SR 28G 850nm VCSEL PIN -6.2 2 -10.3 2 1 100m 0~70
TR-PB13L-N00 SFP28 32GFC LR 28G 1310nm DFB PIN -5 2 -13.3 2 1.2 10km 0~70

40G QSFP

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-QQ85S-N00 QSFP+ eSR4 40G 850nm VCSEL PIN -7.6 1 -9.5 2.4 1.5 100m 0-70
TR-QQ85X-N00 SFP28 SR 40G 850nm VCSEL PIN -7.3 1 -9.9 2.4 1.5 300m 0~70
TR-QQ13T-N00 QSFP+ IR4 40G DFB CWDM PIN -7 2.3 -11.7 2.3 3.5 10km 0~70
TR-QQ13L-N00 QSFP+ LR4 40G DFB CWDM PIN -7 2.3 -21 -4 1.5 40km 0~70
TR-QQ13E-N00 QSFP+ ER4 40G DFB CWDM APD -2.7 4.5 -21.2 -4.5 3.5 40km 0~70
TR-IQ13C-N00 QSFP+ PSM IR4 40G 1310nm DFB PIN -5.5 1.5 -11.5 1.5 3.5 10km 0~70
TR-IQ13L-N00 QSFP+ PSM LR4 40G 1310nm DFB PIN -5.5 1.5 -12.6 1.5 3.5 10km 0~70
TF-QQxxx-N00 QSFP+ AOC 40G 850nm VCSEL PIN N/A N/A N/A N/A 1.5 (each QSFP+) 100m 0~70
TR-QQ13Y-N00 QSFP+ LX4(MMF/SMF) 40G DFB CWDM PIN -5 / -7 3.5 / 2.3 -7 / -11.7 3.5 / 2.3 3.5 150m / 2km 0~70
TF-QPQXxxx-N00 QSFP+ to 4x SFP+ AOC 40G 850nm VCSEL PIN N/A N/A N/A N/A 1.5 (QSFP+)0.8 (each SFP+) 100m 0~70

100G QSFP28

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-FC85S-N00 QSFP28 SR4 100G 850nm VCSEL PIN -8.4 2.4 -10.3 2.4 2.5 100m 0-70
TR-FC13R-N00 QSFP28 LR4 Ethernet 100G 1296-1309nm LWDM DFB PIN -4.3 4.5 -10.6 4.5 4 10km 0~70
TR-FC13T-N00 QSFP28 CWDM4 100G DFB CWDM PIN -6.5 2.5 -11.5 2.5 3.5 10km 0~70
TR-FC13D-N00 QSFP28 ER4 Lite 100G 1296-1309nm LWDM EML APD -2.5 6.5 -16.65 / -20.5 -3.5 4.5 30km / 40km (w/ FEC) 0~70
TR-FC13D-NSN QSFP28 ER4 Lite Dual Rates 100G / 112G 1296-1309nm LWDM EML APD -0.7 6.5 -14.85 / -18.7 -3.5 4.5 30km / 40km (w/ FEC) 0~70
TP-VC13Txxxx-N00 QSFP28 PSM4 Pigtail 100G 1310nm DFB PIN -5.5 2 -10.5 2 3.5 2km 0~70
TF-FCxxx-N00 QSFP28 AOC 100G 850nm VCSEL PIN N/A N/A N/A N/A N/A 10km 0~70
TF-QQxxx-N00 QSFP+ AOC 100G 850nm VCSEL PIN N/A N/A N/A N/A 2.5 (QSFP28)1.0 (each SFP28) 100m 0~70
TR-VC13T-N00 QSFP28 PSM4 100G 1310nm DFB PIN -5.5 2 -10.2 2 3.5 2km 0~70

200G QSFP-DD

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
T-FX4FNS-N00 QSFP56 SR4 200G 850nm VCSEL PIN -6.5 4 -8.4 4 5.5 100m 0~70
T-FX4FNT-H00 QSFP56 FR4 200G EML CWDM4 PIN -4.2 4.7 -8.2 4.7 6.5 2km 15~65
C-FXT4FNMxxx-N00 QSFP56 200G to QSFP28 2*100G AOC 200G 850nm VCSEL PIN N/A N/A N/A N/A 8 (200G side)
4 (100G side)
20m 0~70

400G QSFP-DD SR8

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
T-DQ8FNS-N00 QSFP-DD SR8 400G 850nm VCSEL PIN -6 4 -7.9 4 12 100m 0-70
T-DP4CNH-N00 QSFP-DD DR4 400G 1310nm EML PIN -2.9 4 -5.9 4 12 500m 0~70
T-DP4CNT-N00 QSFP-DD DR4+ 400G 1310nm EML PIN -2.4 4 -6.4 4.5 12 2km 0~70
T-DQ4CNT-N00 QSFP-DD FR4 400G EML CWDM4 PIN -3.3 3.5 -7.3 3.5 12 2km 0~70
T-DQ4CNL-N00 QSFP-DD LR4 400G EML CWDM4 PIN -1.4 4.5 -7.7 -4.5 12 10km 0~70
C-DQ8FNMxxx-H00 QSFP-DD AOC 400G 850nm VCSEL PIN N/A N/A N/A N/A 12.0 (each QSFP-DD) 100m 0~70
T-DQ4CNE-N00 QSFP-DD ER4 400G EML LWDM4 APD 0.4 1.5 -12.6 -2.5 12.0 30km 40km (w/ FEC) 0~70



Features

  • Hot-pluggable QSFP-DD form factor
  • Power dissipation <9W
  • RoHS compliant
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 100m on OM4 fiber with KP4 FEC
  • 8x50G PAM4 VCSEL transmitter
  • 8x50G PAM4 retimed 400GAUI-8 electrical interface aligned with IEEE 802.3bs
  • MPO-16 APC connector
  • I2C management interface
