1000base SX SFP 850nm 550m over mmf SFP is designed for GE/1 x FC optical interface for data communications with multi mode fiber (MMF). It operates at 1.25Gbps for GE. Compatible CISCO GLC-SX-MMD design is optimized for high performance and cost effective to supply customers the best solutions for datacom applications.
item no.:
TOP-SFP-1.25G-MMDlead time:
2-5 Working Days After Payment Receivedproduct orgin:
Chinabrand:
Top-Transshipping port:
ShenzhenWarranty:
3 YearsCondition:
CompatibleTemperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°CData Rate:
1.25 GDistance:
550 mWavelength:
850 nmConnector:
Dual LC
SFP 1.25g 850nm 550m Compatible Cisco SFP-SX-MM LC Connector Optical Modules
1000Base SX SFP 850nm 550m Over MMF is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.
Product Features
Transceiver unit with independent
VCSEL laser transmitter and PIN photo-detector
Up to 1.25Gbps data rate operation
Up to 550M transmission distance at 1.25Gbps
Standard serial ID information compliant with SFP MSA
SFP MSA package with duplex LC connector
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature:Commercial: 0°C to +70°C,Extended: -10°C to +80°C,Industrial: -40°C to +85°C
Applications
Switch/Router
SAN/Server
Other optical transmission systems

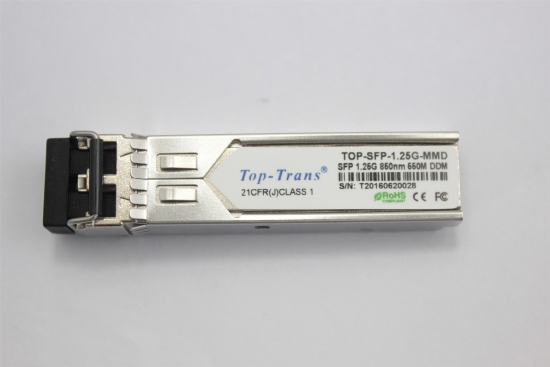

Below is the picture of Compatible CISCO GLC-SX-MMD
Professional Service
Compatible GLC-SX-MMD Optical Modules are fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
OEM& ODM
Customized label and package. Both OEM and ODM service are offered.
