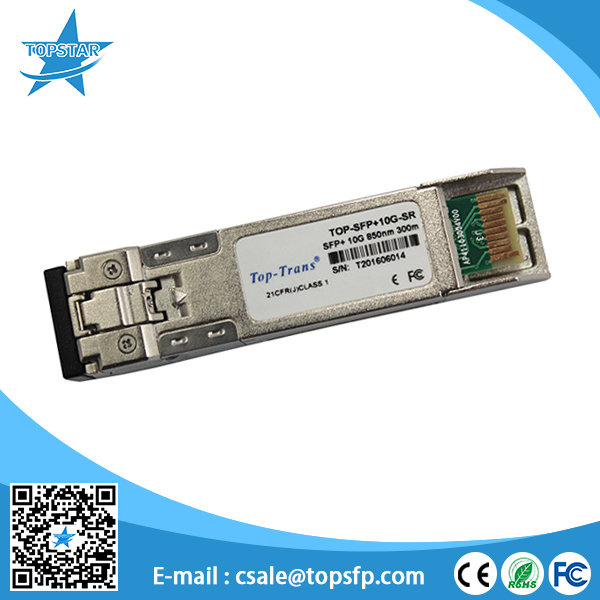

Brocade XBR-000218 Compatible With SFP+10G SR 850nm 300m optical transceivers for Switch DCX 8510

10G SFP+
new products

TOP-SFP+-10G-SR Compatible With Brocade 57-1000114-01
TOP-SFP+-10G-SR Compatible With Brocade 57-1000114-01

Brocade XBR-000218 Compatible With SFP+10G SR 850nm 300m optical transceivers for Switch DCX 8510

TOP-SFP+-10G-SR Compatible With Brocade DCX 8510,6520,6510,optical transceivers are designed for 10Gb/s serial optical interfaces for data communications with multimode fiber (MMF) Please read and check it.

  • item no.:

    TOP-SFP+-10G-SR

  • brand:

    Brocade

  • Warranty:

    3 Years

  • Temperature:

    0~70℃

  • Data Rate:

    10G

  • Distance:

    300m

  • Wavelength:

    850nm

  • Connector:

    LC duplex
contact now
Datasheet
product details

Brocade XBR-000218 Compatible With SFP+10G SR 850nm 300m optical transceivers for Switch DCX 8510


PRODUCT FEATURES

  • Hot pluggable
  • 10Gb/s serial optical interface
  • Up to 300m on 50/125um MMF(2000MHZ.KM)
  • Compliant with SFP+ MSA
  • SFP MSA package with duplex LC connector
  • Digital Diagnostic Monitor Interface
  • Very low EMI and excellent ESD protection
  • High transmission margin
  • +3.3V single power supply
  • Below <1W power consumption
  • SFP mechanical interface
  • Wide data-rate range

APPLICATIONS


  • 10G Base-SR/SW
  • 10G Fiber Channel
  • Other optical links
STANDARD

  • SFP+ MSA Compliant
  • SFF-8472 reversion 9.5 compliant
  • IEEE802.3-2005 compliant
  • Telcordia GR-468-CORE compliant
  • FCC 47 CFR Part 15,Class B compliant
  • FDA 21 CFR 1040.10 and 1040.11,class1 compliant
  • RoHS compliant

Professional Service



1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment

2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.

4.Customized label and package , OEM and ODM service offered .

tags : Brocade 6520 Brocade DCX Brocade 57-1000114-01 Brocade 6510 10G 850nm 300m Brocade 8510
