10G CWDM XFP LR Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 10km on SMF. The transceiver module comprises a transmitter with un-cooled CWDM DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
item no.:
TOP-XFP-CWDM-LR-XXlead time:
4-5working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
ex-wWarranty:
3 YearsCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
10kmWavelength:
1270-1450nmConnector:
LC

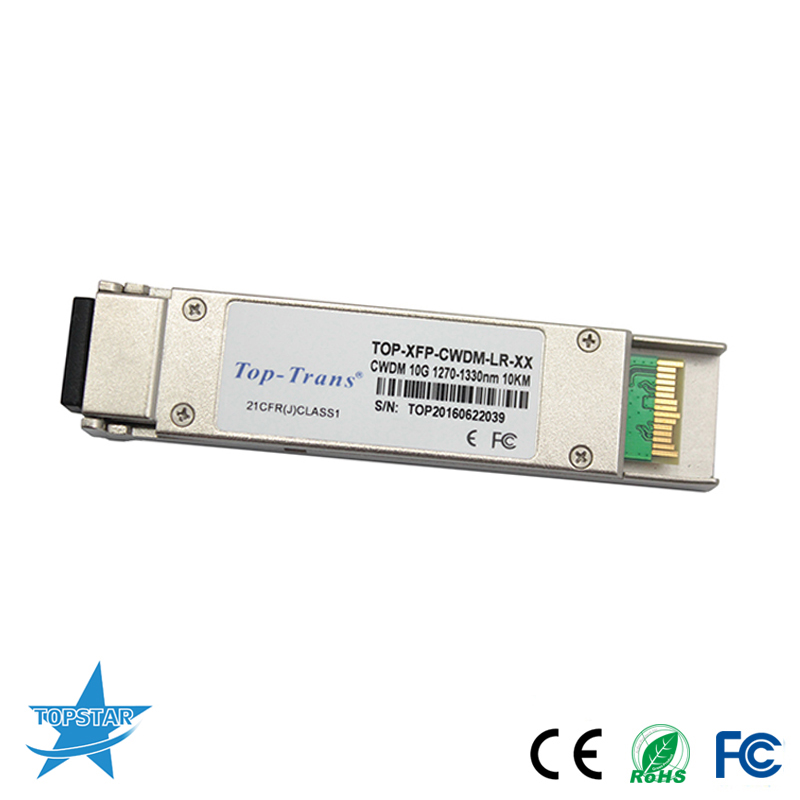

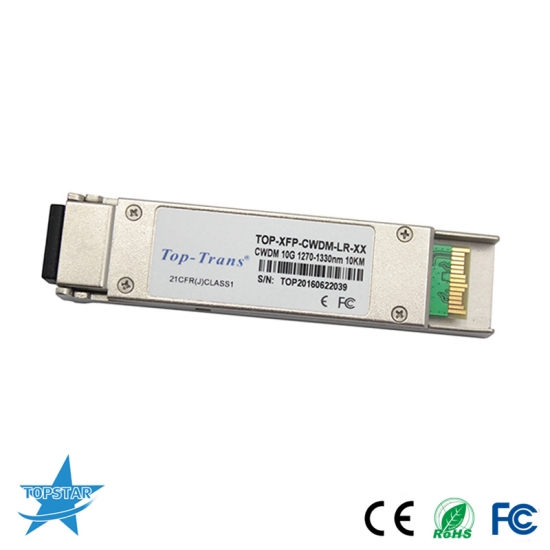

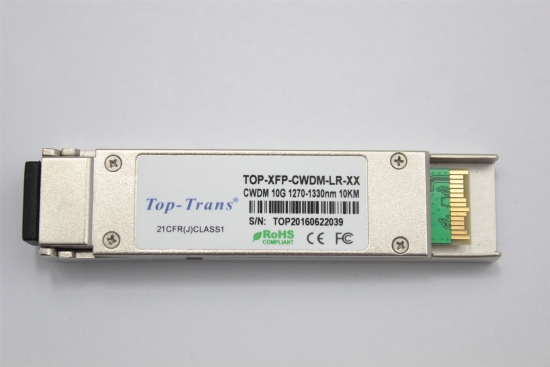

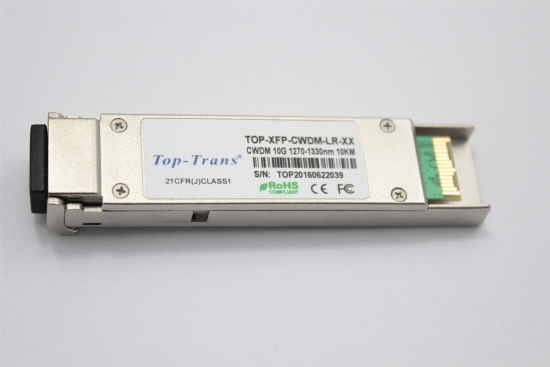

Compatible 10G LR Ethernet XFP CWDM 1270-1450nm 10km Transceiver Module
10G CWDM XFP Transceiver Module (SMF, 1270-1450nm, 10km, LC, DOM)
PRODUCT FEATURES
Supports 9.95Gbps to 11.1Gbps bit rates
4-Wavelengths Un-cooled CWDM DFB laser from1270nm to 1330nm, with Step 20nm
XFP MSA Rev 4.5 Compliant
Maximum link length of 10km with SMF
Very low EMI and excellent ESD protection
High transmission margin
+3.3V single power supply
Below <1.5W power consumption
Temperature range 0°C to 70°C
APPLICATIONS
SDH STM I-64.1 at 9.953Gbps
10GBASE-LR/LW 10G Ethernet
10G Fiber Channel
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered.
