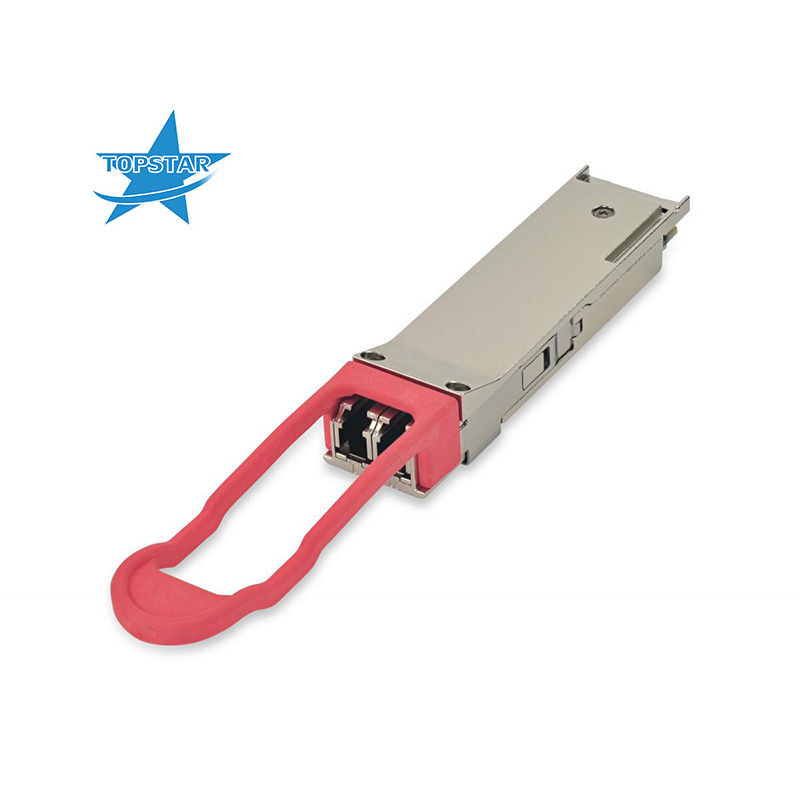

Compatible Finisar FTL4E1QM1C 40GBASE-ER4 and OTU3 Multirate 40km QSFP+ Optical Transceiver

item no.:
40G QSFP LC 40km
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
44.6 Gb/s
Distance:
40km
Wavelength:
1310nm
Connector:
LC

contact now

product details

Product Description：

Distance:40 km
Data Rate (max):44.6 Gb/s
Protocol:OTN OTU3 Compatible 40G Ethernet Compliant
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:4x DFB Laser
Receiver:APD
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

Product Feature：

Hot-pluggable QSFP+ form factor
Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates
Power dissipation < 3.5W
18.5 dB link insertion loss budget
RoHS-6 compliant
Commercial case temperature range 0°C to 70°C
Single 3.3V power supply
Maximum link length of 40km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring
