120G CXP MPO 100m

120G CXP MPO 100m

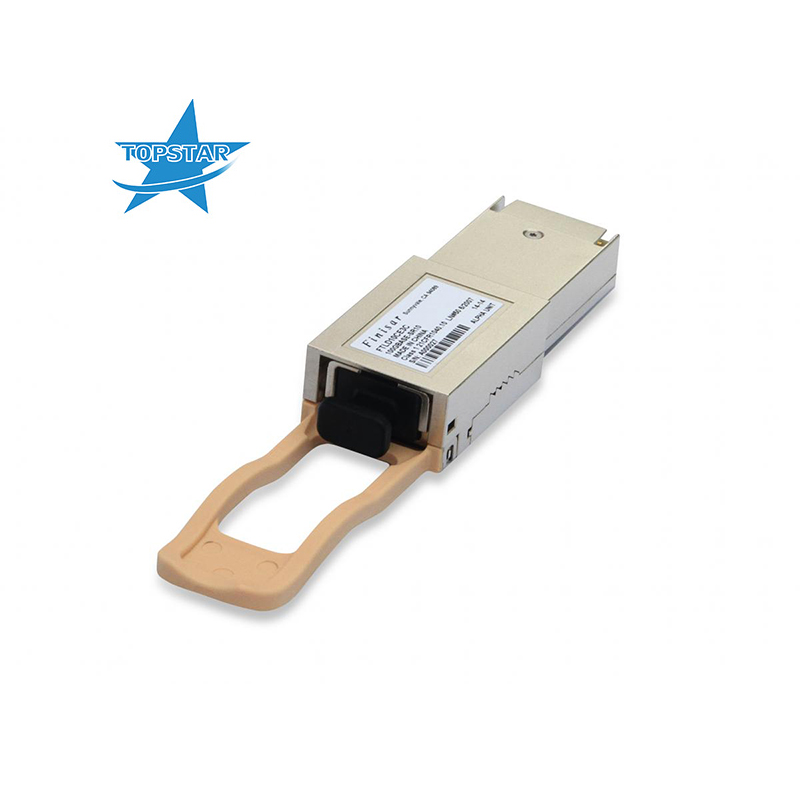

Compatible Finisar FTLD10CD3C 12x11.3G (120G) 300m Gen3 CXP Optical Transceiver

Compatible Finisar FTLD10CD3C 12x11.3G (120G) 300m Gen3 CXP Optical Transceiver

item no.:
120G CXP MPO 100m
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
135.6 Gb/s
Distance:
300m
Wavelength:
850nm
Connector:
MPO (MTP24)

contact now

product details

Product Description:

Distance:300 m
Data Rate (max):135.6 Gb/s
Protocol:10x Fibre Channel Compatible 10 Gigabit Ethernet Compatible 40G Ethernet Compatible 100G Ethernet Compliant IB QDR Compliant IB SDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:12x VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO (MTP24)
Wavelength:850nm Band

Product Feature:

12-channel full-duplex transceiver module
Hot Pluggable CXP footprint
Maximum link length of 300m on OM3 Multimode Fiber (MMF)
Multirate capability: 1.06Gb/s to 11.3Gb/s per channel
Unretimed CPPI electrical interface
Requires 3.3V power supply only
Low power dissipation: <3.5W
Reliable VCSEL array technology
Digital Diagnostics including Tx and Rx optical power monitoring
RoHS-6 Compliant (lead-free)
Commercial operating case temperature range: 0°C to 70°C

tags : Finisar FTLD10CD3C CXP Optical Transceiver 12x11.3G (120G) 300m Gen3 120G CXP MPO 100m
