Compatible Finisar FTLF8526W4BTL 6G 850NM Wireless 300m SFP+ Optical Transceiver

Finisar FTLF8526W4BTL is 6G 850 SFP+, with 1 year warranty. Check datasheet, price and details on www.opticalmodulemanufacturers.com.

  • item no.:

    FTLF8526W4BTL
  • brand:

    Finisar
  • shipping port:

    Shenzhen
  • Warranty:

    1 Year
  • Condition:

    Good
  • Temperature:

    0°C to 70°C
  • Data Rate:

    6G
  • Distance:

    300M
  • Wavelength:

    850nm
  • Connector:

    LC
product details

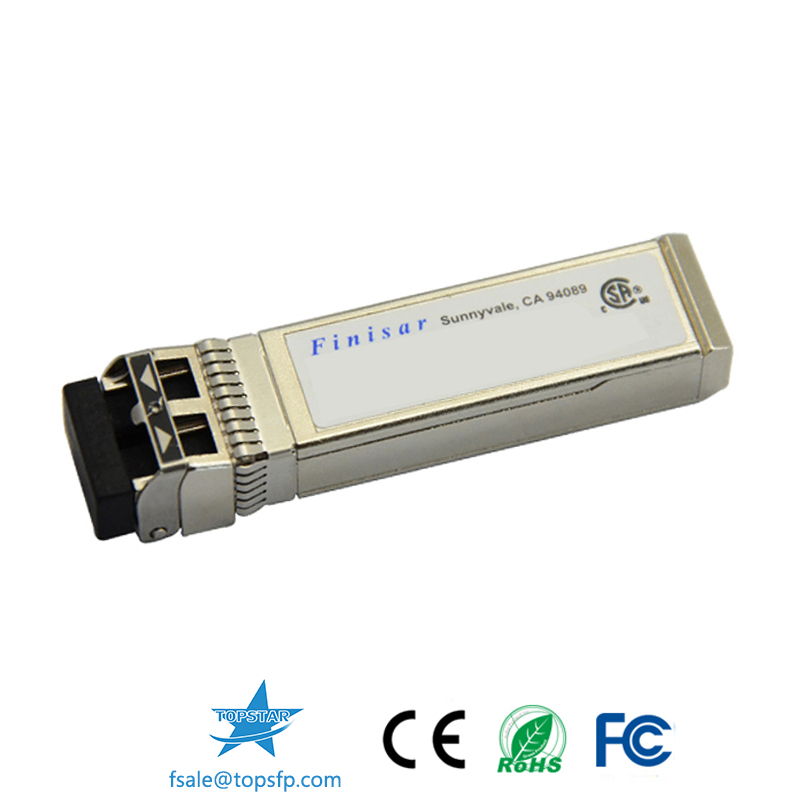

Finisar FTLF8526W4BTL 6G 850NM Wireless 300m SFP+ Optical Transceiver

Finisar FTLF8526W4BTL 6G 850nm SFP+ Transceiver Module. It can be used in Data Center, Enterprise switch line card applications, Storage, IP network and LAN.


Features

Part number Finisar FTLF8526W4BTL
Data Rate 6G
Wavelength 850nm
Distance 300M
Fiber Type Multi-mode Fiber
Connector LC
Warranty 1-year
Form Factor SFP+
Temperature
-5°C to 70°C
Power Supply 3.3V
Package 10pc/CT


Specifications

  • Up to 6.1 Gb/s bi-directional data links
  • Hot-pluggable SFP+ footprint
  • Built-in digital diagnostic functions
  • 850nm Oxide VCSEL laser transmitter
  • Duplex LC connector
  • RoHS compliant and Lead Free
  • 300m on high-bandwidth 50/125μm (OM3) MMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • <0.5W power dissipation
  • Extended operating temperature range: -40°C to 85°C


Application

  • Wireless - CPRI, OBSAI, LTE
