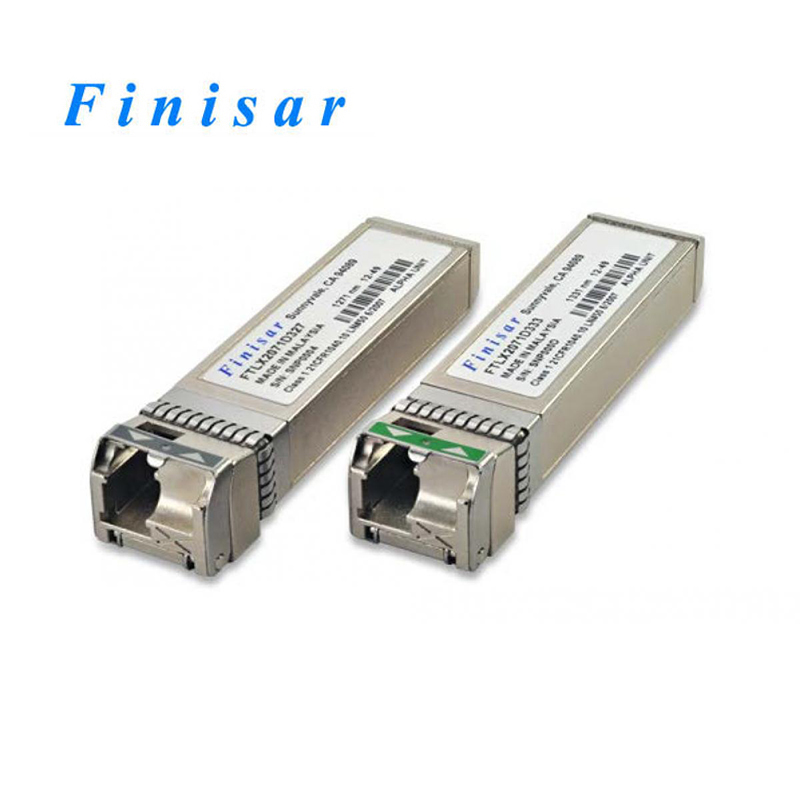

Compatible Finisar FTLX2072D3xx 10Gb/s Bidirectional 10km Gen2 SFP+ Optical Transceiver

Compatible Finisar FTLX2072D3xx 10Gb/s Bidirectional 10km Gen2 SFP+ Optical Transceiver

item no.:
10G SFP+ LC 10km
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
-40-85
Data Rate:
11.3 Gb/s
Distance:
10km
Wavelength:
Bidi 1271/1331nm
Connector:
LC

contact now

product details

Product Description：

Distance:10 km
Data Rate (max):11.3 Gb/s
Protocol:10x Fibre Channel Compliant 10 Gigabit Ethernet Compliant Wireless CPRI Compliant
Low End Case Temperature (°C):-40
High End Case Temperature (°C):85
Diagnostics:Digital
Transmitter:DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:Bidi 1271/1331nm

Product Feature：

Hot-pluggable SFP+ footprint
Bidirectional 10G over single strand single mode fiber
Supports 1.0 to 11.3 Gb/s bit rates
Power dissipation <1W
RoHS-6 compliant (lead-free)
Industrial temperature range -40°C to 85°C
Single 3.3V power supply
Maximum link length of 10km
Uncooled DFB
Receiver limiting electrical interface
Single LC connector
Built-in digital diagnostic functions

Products series:

Topstar are one of the leading Manufacturers and Supplier of Fiber Optical transceivers in Shenzhen. Our main core business as below:

Original SFP module:We are a professional supplier of original (Finisar/ Cisco/ Brocade/ Huawei/ Avago/ Source/ WTD/ JDSU/ INTEL, etc) sfp module, more than 200,000pcs inventory per month in warehouse satisfy your one-stand demand.

tags : Finisar FTLX2072D3xx SFP+ Optical Transceiver 10Gb/s Bidirectional 10km Gen2 10G SFP+ LC 10km
