Compatible Finisar FTLX3971DTCxx 10G SFP+ ER 40km DWDM SFP+ Optical Transceiver

Finisar FTLX3971DTCxx is 10G DWDM 15xx.xxnm 40K SFP+, the Extended temperature range is -40°C to 85°C, with 1 year warranty. Check datasheet, price and details on www.opticalmodulemanufacturers.com.

item no.:
FTLX3971DTCxx
brand:
Finisar
shipping port:
Shenzhen
Warranty:
1 Year
Condition:
Good
Temperature:
-40°C to 85°C
Data Rate:
10G
Distance:
40KM
Wavelength:
15xx.xxnm
Connector:
LC

contact now

Datasheet

product details

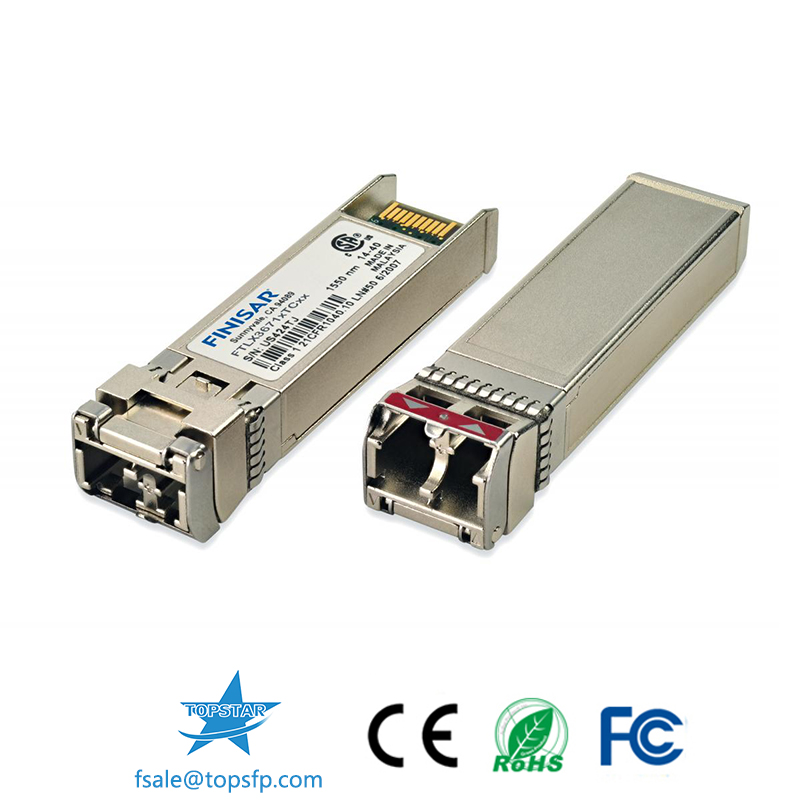

Finisar FTLX3971DTCxx 10G SFP+ ER 40km DWDM SFP+ Optical Transceiver

Finisar FTLX3971DTCxx is the 10G 10KM SFP Transceiver Module. It can be used in Data Center, Enterprise switch line card applications, Storage, IP network and LAN.

Features

Part number	Finisar FTLX3971DTCxx
Data Rate	10G
Wavelength	15xx.xxnm
Distance	40KM
Fiber Type	DWDM SFP
Connector	LC
Warranty	1-year
Form Factor	SFP+
Temperature	-40°C to 85°C
Power Supply	3.3V
Package	10pc/CT

Channel	Product Code	Frequency (THz)	Center Wavelength (nm)	Channel	Product Code	Frequency (THz)	Center Wavelength (nm)
C20	FTLX3971DTC20	192.00	1561.42	C41	FTLX3971DTC41	194.10	1544.53
C21	FTLX3971DTC21	192.10	1560.61	C42	FTLX3971DTC42	194.20	1543.73
C22	FTLX3971DTC22	192.20	1559.79	C43	FTLX3971DTC43	194.30	1542.94
C23	FTLX3971DTC23	192.30	1558.98	C44	FTLX3971DTC44	194.40	1542.14
C24	FTLX3971DTC24	192.40	1558.17	C45	FTLX3971DTC45	194.50	1541.35
C25	FTLX3971DTC25	192.50	1557.36	C46	FTLX3971DTC46	194.60	1540.56
C26	FTLX3971DTC26	192.60	1556.55	C47	FTLX3971DTC47	194.70	1539.77
C27	FTLX3971DTC27	192.70	1555.75	C48	FTLX3971DTC48	194.80	1538.98
C28	FTLX3971DTC28	192.80	1554.94	C49	FTLX3971DTC49	194.90	1538.19
C29	FTLX3971DTC29	192.90	1554.13	C50	FTLX3971DTC50	195.00	1537.40
C30	FTLX3971DTC30	193.00	1553.33	C51	FTLX3971DTC51	195.10	1536.61
C31	FTLX3971DTC31	193.10	1552.52	C52	FTLX3971DTC52	195.20	1535.82
C32	FTLX3971DTC32	193.20	1551.72	C53	FTLX3971DTC53	195.30	1535.04
C33	FTLX3971DTC33	193.30	1550.92	C54	FTLX3971DTC54	195.40	1534.25
C34	FTLX3971DTC34	193.40	1550.12	C55	FTLX3971DTC55	195.50	1533.47
C35	FTLX3971DTC35	193.50	1549.32	C56	FTLX3971DTC56	195.60	1532.68
C36	FTLX3971DTC36	193.60	1548.51	C57	FTLX3971DTC57	195.70	1531.90
C37	FTLX3971DTC37	193.70	1547.72	C58	FTLX3971DTC58	195.80	1531.12
C38	FTLX3971DTC38	193.80	1546.92	C59	FTLX3971DTC59	195.90	1530.33
C39	FTLX3971DTC39	193.90	1546.12	C60	FTLX3971DTC60	196.00	1529.55
C40	FTLX3971DTC40	194.00	1545.32

Details

Finisar's FTLX3971DTCxx optical transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in DWDM links up to 40km of G.652 single mode fiber, for multirate applications from 1.2 through 11.3 Gb/s, carrying 1G-10G Ethernet, 2x-10x Fibre Channel, 10G OTN traffic or CPRI options 2 through 8 traffic. The transceivers are compliant with SFF-8431 and SFF-8432.

Applications

DWDM 40km links for:
