Brand Broadcom model number 9560-16i port 16 interface PCIe 4.0 x8 rate 12Gb/S condition used warranty 1 year
read more
Brand Broadcom Model number 9560-8i port 8 rate 12Gb/s condition new warranty 3 year interface PCIe 4.0 x8 Temperature 0-55℃
read more
Brand NVIDIA/Mellanox Modle number MCX755106AC-HEAT Host Interface PCIe 5.0x16 port dual connector QSFP112 rate 200GbE condition new certification CE,FCC,RoTH Warranty 1 year
read more
Brand NVIDIA/Mellanox Modle Number MCX755106AS-HEAT Port Dual Connector QSFP112 Rate 200GbE Condition New Warranty 1 year Certification CE,FCC,RoTH Inference PCIe 5.0 x 16 Original Israel
read more
Brand NVIDIA/Mellanox Modle number MCX623105AC-VDAT Rate 200Gb Package Single-port QSFP56 Condition New Inference EN adapter card PCI Gen PCIe 4.0 x16 Warranty 1 year
read more
Brand NVIDIA/Mellanox Modle Number MCX623106GC-CDAT Package Dual-port QSFP56 Rate 100Gb PCI Gen PCIe 4.0 x16 Inference EN adapter card Warranty 1 year Certification CE,FCC,RoTH
read more
Brand NVIDIA Modle Number MCX623106TC-CDAT Package Dual-port QSFP56 Rate 100Gb PCI Express Gen PCIe 4.0 x16 Interface EN adapter card Condition New Warranty 1 year
read more

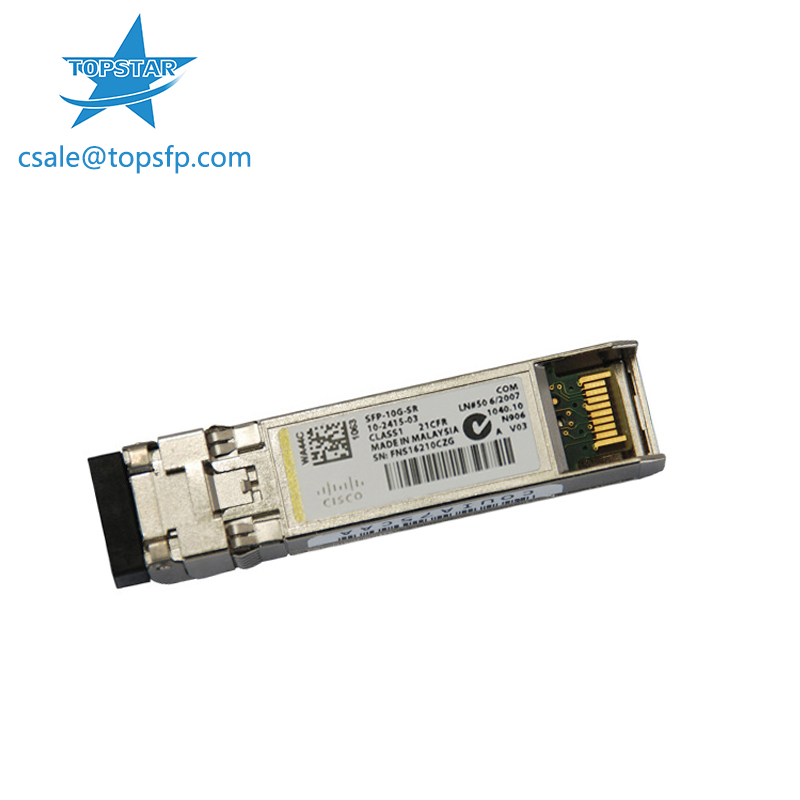

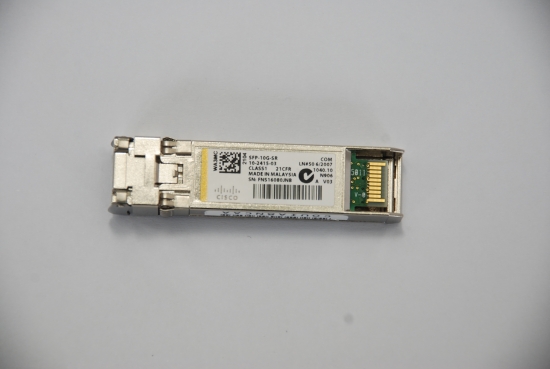

SFP-10G-SR can be used on original Switch N9K-C9396PX; The 10GBASE SFP+ modules (Figure 1) offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications;
The 10GBASE-SR Module supports a link length of 26m on standard Fiber Distributed Data Interface
(FDDI)-grade multimode fiber (MMF). Using 2000MHz*km MMF (OM3), up to 300m link lengths are possible. Using
4700MHz*km MMF (OM4), up to 400m link lengths are possible.
item no.:
SFP-10G-SRlead time:
2-3 working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
ex-wprice range:
1-10/32$Warranty:
1 YearCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
300mWavelength:
850nmConnector:
LCSFP-10G-SR 10-2415-03 10G SFP+ 300m Optical Transceiver for ASR 9000 ASR-9900-RP-SE switch
SFP-10G-SR is supported on a wide range of equipment like Catalyst 4948E-F and Modular Line Card : A9K-MPA-8X10GE
PRODUCT FEATURES
Smallest 10G form factor
Supports 10GBASE Ethernet and OTU2/OTU2e Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch
Provides flexibility of interface choice
Supports “pay-as-you-populate” model
Supports digital optical monitoring capability
Supports the quality identification (ID) feature that enables a switch to identify whether the module is certified and tested
APPLICATIONS
10GBASE-SR/SW Ethernet
SONETOC-192/SDHSTM-64
Other optical links
Professional Service
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
OEM& ODM:
Customized label and package , OEM and ODM service offered
prev :
GLC-FE-100LX Compatible 100BASE-LX10 SFP 1310nm 10km Transceiver Modulenext :
XFP-10G-SM-ZR100 Compatible 10GBASE-ZR XFP 1550nm 100km DOM Transceiver Module
Compatible Juniper 10GBASE-ER X2 1550nm 40km 10G DOM Transceiver Module
The X2 ER Module is 10GB 1550nm 40KM for 10Gbit/s data transmission applications.10GBASE-ER X2 transceiver (SMF, 1550nm, 40km, SC, DDM) on sale, buy the most cost-effective 10G X2 transceiver modules from Topstar !
QSFP-40G-CSR4 Compatible 40GBASE-CSR4 QSFP+ 850nm 400m 10-2837-02 Transceiver Module
The QSFP-40G-CSR4 Compatible N9K-C9396PX, Nexus C92304QC, ASR 9000 Series (Modular Line Card : A9K-MPA-1X40GE),4 channels full-duplex transceiver modules,Transmission data rate up to 10.5Gbps per channel,4 channels 850nm VCSEL array,4 channels PIN photo detector array,Low power consumption <1.5W,Hot Pluggable QSFP form factor,Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF,Single MPO connector receptacle,Built-in digital diagnostic functions,Operating case temperature 0°C to +70°C,3.3V power supply voltage,RoHS 6 compliant
QSFP-40G-LR4-S Compatible 40GBASE-LR4 QSFP+ 1310nm 10km LC DOM 10-3115-01 Transceiver Module
The QSFP-40G-LR4-S Transceiver Module Compatible with Nexus 9300 Series (Switch/Module : N9K-C9396PX; Uplink Module : N9K-M12PQ ),ASR 9000 Series (Modular Line Card : A9K-MPA-1X40GE), please read it and buy it now by our web.
QSFP-40G-ER4 Compatible 40GBASE-ER4 and OTU3 QSFP+ 1310nm 40km LC DOM Transceiver Module
The QSFP-40G-ER4 Transceiver Module Compatible with N9K-C9396PX Nexus C92304QC Nexus 9000 N9K-X9564TX (uplinks), Nexus 9000 N9K-C93120TX Nexus 9000 N9K-X9736PQ. Please read it and buy it now by our web.
CFP CFP-100G-SR10 Compatible 100GBASE-SR10 850nm 150m 10-2787-02 Transceiver Module
The original switches marked “Unique” below, eg: Juniper MX960 & EX 4300 series, Nexus 9396PX & ASR 9000 Series, HP 5900 Series & HP 5406R ZL2 V3(J9996A), Arista 7050S-64, Brocade ICX7750-26Q & ICX6610-48, Avaya VSP 7000 MDA 2, etc.
Top Star TOP-2048MTU-11-2-AS Media Converter 10/100/1000Base-TX 100/1000Base-FX
The Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet.
X2-10GB-LRM Compatible 10GBASE-LRM X2 1310nm 220m DOM 10-2368-01,10-2368-03 Transceiver Module
X2-10GB-LRM is supported on a wide range of Cisco equipment. Such as 7600 WS-X6708-10G-3C,WS-C3560E-12SD, 6500 WS-X6708-10G-3C, 2350-48TD-S,etc.
DS-X2-FC10G-LR Compatible 10G Fibre Channel X2 1310nm 10km DOM Transceiver Module
DS-X2-FC10G-LR Compatible 10G Fibre Channel X2 1310nm 10km DOM Transceiver Module is transmission distance up to 10km over SMF, Low Power Consumption 2.0 W (typ.) And hot pluggable 70-pin connector with XAUI electrical, kindly buy it on our web.
