ONS-XC-10G-L2

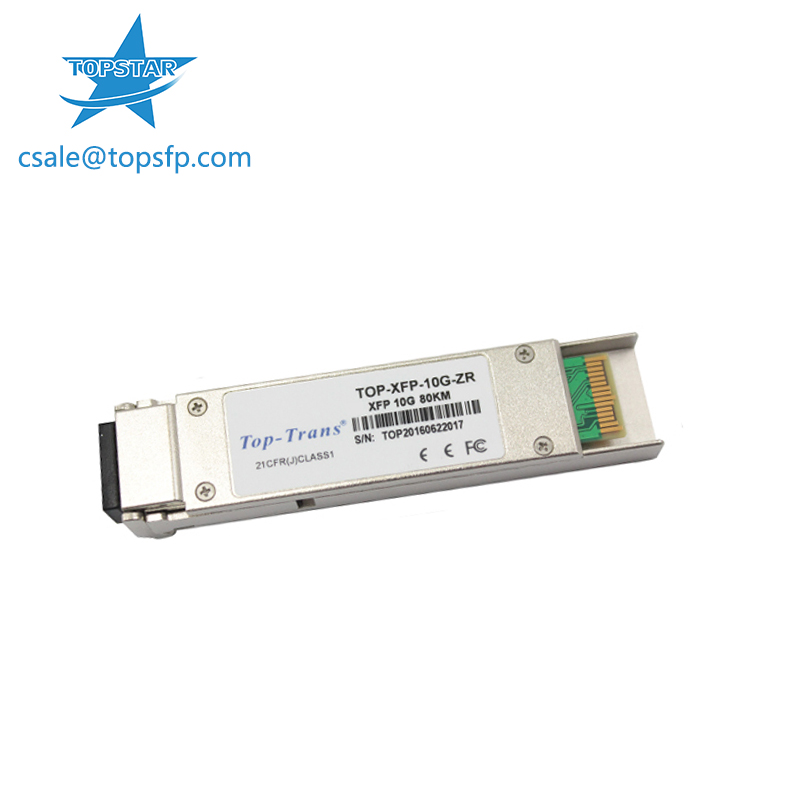

ONS-XC-10G-L2 Compatible 10GBASE-ZR/ZW and OC-192/STM-64 LR-2 XFP 1550nm 80km DOM Transceiver Module

ONS-XC-10G-L2 Compatible 10GBASE-ZR/ZW and OC-192/STM-64 LR-2 XFP 1550nm 80km DOM Transceiver Module can compatible with ASR 9000 Series (Modular Line Card : A9K-8T/4-L), etc.

item no.:
ONS-XC-10G-L2
brand:
Top-Trans
Warranty:
1 Year
Temperature:
0 to 70°C
Data Rate:
10G
Distance:
80km
Wavelength:
1550nm
Connector:
LC duplex

contact now

Datasheet

product details

ONS-XC-10G-L2 Compatible 10GBASE-ZR/ZW and OC-192/STM-64 LR-2 XFP 1550nm 80km DOM Transceiver Module

Features

Hot pluggable
Support9.95Gb/sto11.1Gb/s bit rates
Below<1.8Wpowerdissipation
XFPMSA package with duplex LC connector
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
Cooled 1550nm EML laser and APD Receiver
Up to 80KM for single mode fiber
operating temperature range0°Cto70°C
No reference clock requirement

tags : ONS-XC-10G-L2 10G-ZR/ZW OC-192/STM-64 XFP 1550nm 80km XFP ZR XFP 10G
