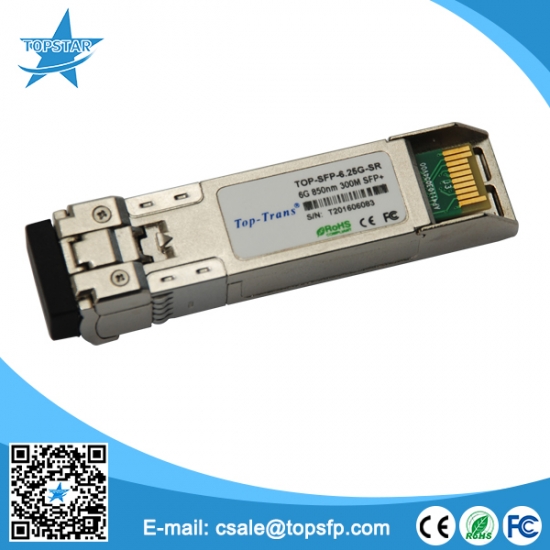

This 850 nm VCSEL 6Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber (Table 1). The specifications and specifications of the product must be disclosed on the Topstar's Website.
item no.:
TOP-SFP-6.25G-SRbrand:
Top-Transpayment:
EXWWarranty:
3 YearsTemperature:
-5℃~70℃Data Rate:
10GDistance:
300mWavelength:
850nmConnector:
Dual LC
Features
Optical interface compliant to IEEE 802.3ae 6GBASE-SR, compliant to CPRI, OBSAI
Electrical interface compliant to SFF-8431
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector
Maximum link length of 300m on 2000MHz/km MMF
Operating case temperature: 0 to 70℃
Low power consumption
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Multi-Rate support from 2G fiber channel to 6G ethernet
Dual LC connector
Compatible with Huawei/ Nokia/ Ericsson
Applications
6GBASE-SR at 6Gbps
6GBASE-SW at 6Gbps
Other optical links
