Tunable 10G DWDM SFP/XFP 80km Long Range C-Band 100GHz Extreme Compatible Optical Modules

The Topstar tunable 10 Gb/s XFP transceiver is an integrated fiber optic transceiver that  provides  a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications(SFF-8477)It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for  SONET/SDH,  IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fiber Channel) applications.



  • item no.:

    Top-XFP-DWDM-ZR-Tu
  • lead time:

    5-6 working days
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • payment:

    ex-w
  • Warranty:

    3 Years
  • Condition:

    New
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    10G
  • Distance:

    80km
  • Wavelength:

    C-band
  • Connector:

    LC
product details

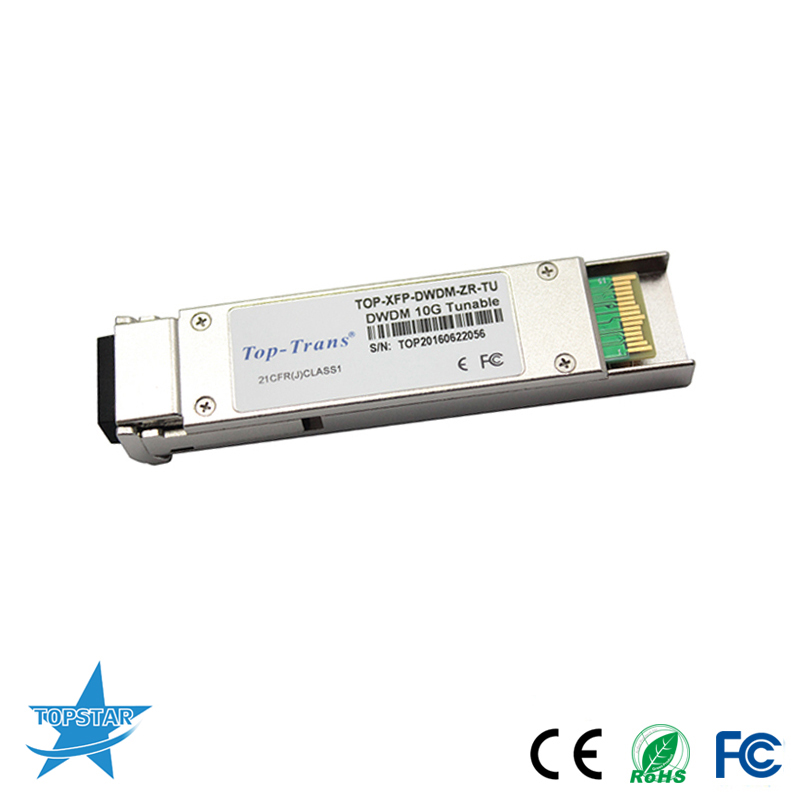

Tunable 10G DWDM SFP/XFP 80km Long Range C-Band 100GHz Extreme Compatible Optical Modules

Multi-Vendor MSA Compatible Top-XFP-DWDM-ZR-Tu XFP Module

DWDM Tunable Optical Transceiver


PRODUCT FEATURES

Supports 9.95Gb/s to 11.3Gb/s bit rates

Monolithically integrated full C-band tunable transmitter

50 GHz ITU channel spacing with integrated wavelength  locker

C-band-tunable Laser and APD receiver

Maximum link length of 80km

Full Duplex LC connector

Hot-pluggable XFP footprint

Supports Line-side and XFI loopback

No Reference Clock required

Built-in digital diagnostic functions

Standard bail release mechanism

Power dissipation <3.5W

Case temperature range:0°C to 70°C


APPLICATIONS

DWDM 10GBASE-ZR/ZW 10G Ethernet

DWDM 80KM 10G Fiber Channel

DWDM SONET OC-192&SDH STM-64


Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


Compatibility:

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.


OEM& ODM:

Customized label and package , OEM and ODM service offered
