High Performance Broadcom Used 9560-16i PCIe 4.0 12Gb/s Storage & Network Interface Card Adapter for Servers
Brand Broadcom model number 9560-16i port 16 interface PCIe 4.0 x8 rate 12Gb/S condition used warranty 1 year
read more
Broadcom 9560-8i Raid Card 8 Ports SCSI SAS/SATA/Nvme LSI Internal PCIE Server Controller Network Adapter RAID Card
Brand Broadcom Model number 9560-8i port 8 rate 12Gb/s condition new warranty 3 year interface PCIe 4.0 x8 Temperature 0-55℃
read more
Mellanox MCX753436MC-HEAB ConnectX-7 Internal 200GbE NDR IB Dual-Port PCI Express Adapter for Server

read more
For NVIDIA MCX755106AC-HEAT ConnectX-7 Adapter NDR 400 Gb/s Dual-port QSFP112 InfiniBand Network Card
Brand NVIDIA/Mellanox Modle number MCX755106AC-HEAT Host Interface PCIe 5.0x16 port dual connector QSFP112 rate 200GbE condition new certification CE,FCC,RoTH Warranty 1 year
read more
Mellanox Connect-7 Internal 200GbE PCI Express Server Adapter Card MCX755106AS-HEAT in Stock
Brand NVIDIA/Mellanox Modle Number MCX755106AS-HEAT Port Dual Connector QSFP112 Rate 200GbE Condition New Warranty 1 year Certification CE,FCC,RoTH Inference PCIe 5.0 x 16 Original Israel
read more
Mellanox MCX623105AC-VDAT 200G Single Port QSFP56 Fiber Optic Adapter 4Gbps Wired LAN Server Use Crypto Secure Boot DC 12V PCIe
Brand NVIDIA/Mellanox Modle number MCX623105AC-VDAT Rate 200Gb Package Single-port QSFP56 Condition New Inference EN adapter card PCI Gen PCIe 4.0 x16 Warranty 1 year
read more
Mellanox Connect-6 Dx MCX623106GC-CDAT External Wired Server Network Adapter-PCIe 4.0 X16-100 Gigabit QSFP56 X 2-in Stock
Brand NVIDIA/Mellanox Modle Number MCX623106GC-CDAT Package Dual-port QSFP56 Rate 100Gb PCI Gen PCIe 4.0 x16 Inference EN adapter card Warranty 1 year Certification CE,FCC,RoTH
read more
NVIDIA ConnectX-6 Dx EN Adapter Card 100GbE Dual-Port QSFP56 Enhanced-SyncE PTP PPS In/Out PCIe 4.0 X16 Secure Boot FHHL Tall
Brand NVIDIA Modle Number MCX623106TC-CDAT Package Dual-port QSFP56 Rate 100Gb PCI Express Gen PCIe 4.0 x16 Interface EN adapter card Condition New Warranty 1 year
read more

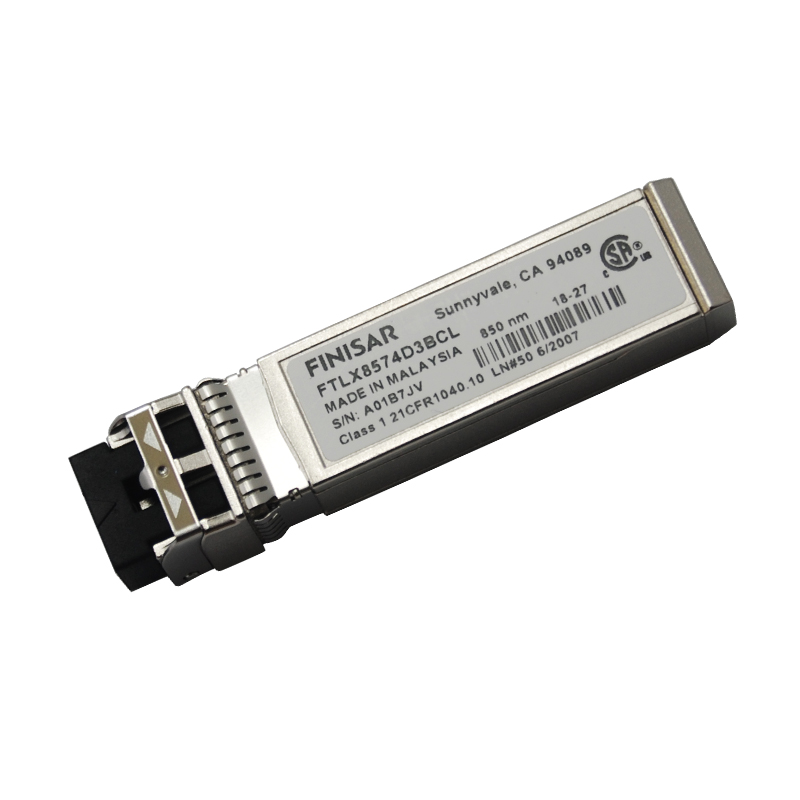

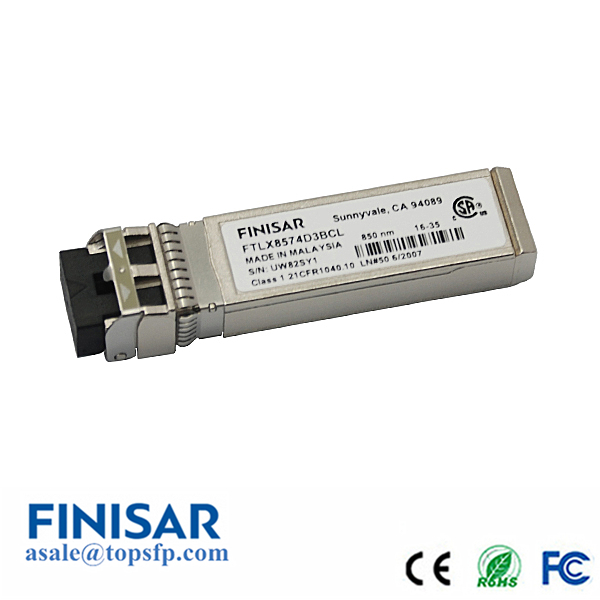

Used Finisar FTLX8574D3BCL 10G 850nm 400m MMD SR optical sfp transceiver

item no.:
10G SFP+ LC 400m
brand:
Finisar
Warranty:
1 Year
Condition:
New
Temperature:
0-70
Data Rate:
10G
Distance:
400m
Wavelength:
850nm
Connector:
LC

contact now

product details

PRODUCT FEATURES

· Hot-pluggable SFP+ footprint

· Supports 9.95 to 10.5 Gb/s bit rates*

· Power dissipation < 1W

· RoHS-6 compliant (lead-free)

· Commercial temperature range

-5°C to 70°C

· Single 3.3Vpower supply

· Maximum link length of 400m on OM4 MMF

· Uncooled 850nm VCSEL laser

· Receiver limiting electrical interface

· Duplex LC connector

· Built-in digital diagnostic functions

Finisar’s FTLX8574D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431¹, SFF-8432², IEEE 802.3-2012 10GBASE-SR/SW³ and 10G Fibre Channel 1200-Mx-SN-I⁴. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF- 8472⁵. The FTLX8574D3BCL is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU⁶. See Finisar Application Note AN-2038⁷ for more details.
