100BASE-LX 155MB 20KM SFP is designed for optical interfaces for data communications with single mode fibre (SMF). 1310nm 20km mini-GBIC is optimized for high performance and cost effective to supply customers with the best solutions for telecom applications.
item no.:
TOP-SFP-155M-20Dlead time:
2-7 Working Days After Payment Receivedproduct orgin:
Chinabrand:
Top-Transshipping port:
ShenzhenWarranty:
3 YearsCondition:
CompatibleTemperature:
0°C to +70°C/ -10°C to +80°C / -40°C to +85°CData Rate:
155 MDistance:
20 kmWavelength:
1310 nmConnector:
Dual LC

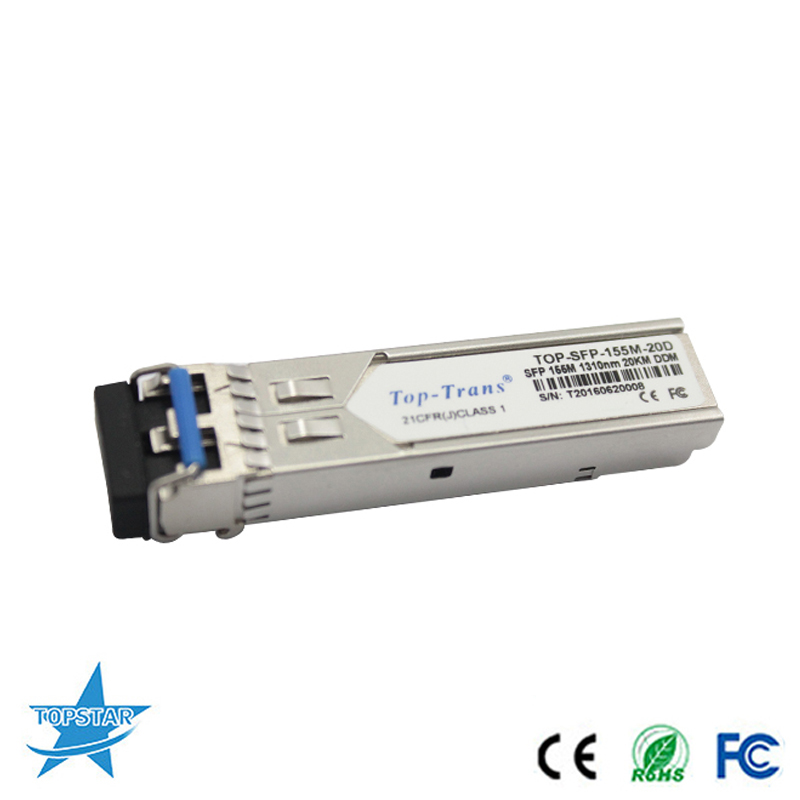

100BASE-LX SFP 155MB 1310nm 20KM Mini-GBIC Transceiver Module
100BASE-LX 155MB 20KM SFP is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.
Product Features
Transceiver unit with independent
1310nm FP Laser diode transmitter
In GaAsPIN photodiode receiver
Upto155Mbps data rate operation
Up to 20KM on 9/125μm SMF
Standard serial ID information compliant with SFP MSA
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
RoHS compliant
Case operating temperature : Commercial: 0°C to +70°C , Extended: -10°C to +80°C, Industrial: -40°C to +85°C
Applications
Switch/Router
SAN/Server
Other optical transmission systems

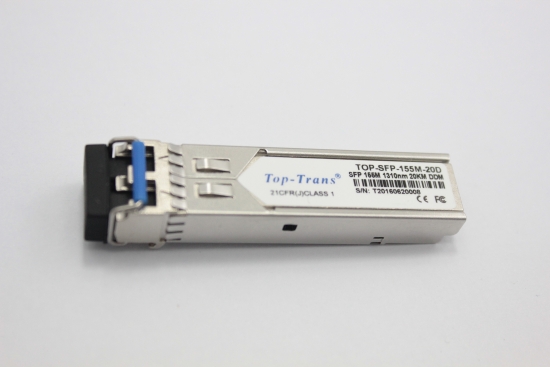

Below is the picture of 1310nm 20km mini-GBIC
Professional Service
155MB 20KM Transceiver Module is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.
OEM& ODM
Customized label and package. Both OEM and ODM service are offered.
