Brocade XBR-000139 57-1000013-01

Brocade XBR-000139 57-1000013-01

Brocade XBR-000139 57-1000013-01 Compatible SFP 4.25G 850nm 550m Fibre Optic For 5300,5100,300 switch

The SFP transceivers are high performance,Brocade XBR-000139 XBR-000141 XBR-000158 57-1000013-01 Compatible SFP 4.25G 850nm 550m Fibre Optic for Brocade DCX,5300,5100,300,Encryption,7800

item no.:
TOP-SFP-4.25G-MMD
brand:
Top-Trans
Warranty:
3 Years
Temperature:
0°C~70°C
Data Rate:
4.25G
Distance:
550m
Wavelength:
850nm
Connector:
Duplex LC

contact now

Datasheet

product details

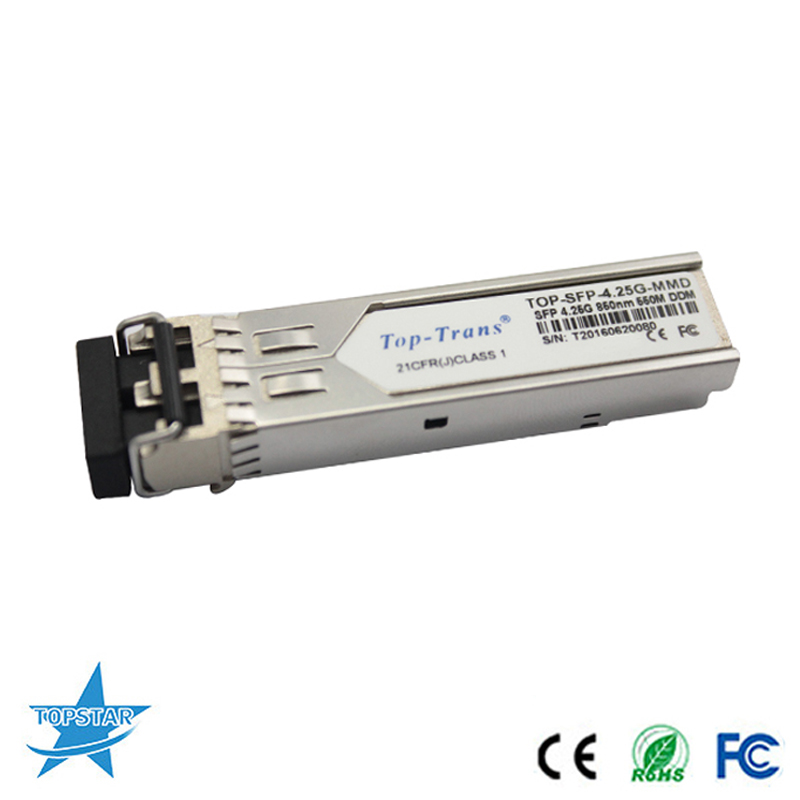

Brocade XBR-000139 57-1000013-01 Compatible SFP 4.25G 850nm 550m Fibre Optic For 5300,5100,300 switch

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 4.25Gbps and 550m transmission distance with MMF.

Features

Support 1000Mbps to 4.25Gbps Multi-rate data links
Single 3.3V supply
Up to 550m on 50/125µm MMF, 300m on 62.5/125µm MMF
Supports 1.0625/2.125/4.25Gb/s Fibre Channel Operation
Gigabit Ethernet compatible
850nm VCSEL laser transmitter
SFP MSA SFF-8074i compliant
Digital Diagnostic SFF-8472 compliant
Compatible with RoHS
Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

OEM& ODM:

Customized label and package , OEM and ODM service offered.

tags : Brocade 5300 Brocade DCX Brocade XBR-000143 Brocade 57-1000014-01 4.25G 850nm 550m Brocade Encryption
