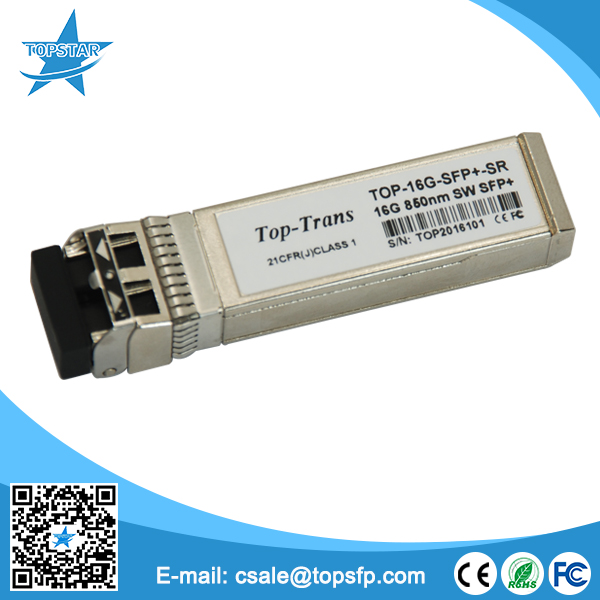

TOP-SFP+-16G-SW Compatible With Brocade 57-0000088-01

SFP+ Compatible With Brocade XBR-000192 XBR-000193 16G 850nm 300m Optical Transceivers For Switch DCX 8510

TOP-SFP+-16G-SW Compatible With Brocade XBR-000192,XBR-000193,57-0000088-01,DCX 8510,6520,6510,6505,7840 Switch,optical transceivers are designed for 16Gb/s serial optical interfaces.Please read more on our web.

item no.:
TOP-SFP+-16G-SW
brand:
Brocade
Warranty:
3 Years
Temperature:
0°C ~ 70°C
Data Rate:
16G
Distance:
300m
Wavelength:
850nm
Connector:
LC duplex

contact now

Datasheet

product details

SFP+ Compatible With Brocade XBR-000192 XBR-000193 16G 850nm 300m Optical Transceivers For Switch DCX 8510

PRODUCT FEATURES

Up to 16.025 Gb/s bi-directional data links
Hot-pluggable SFP+ footprint
Built-in digital diagnostic functions
Built-in CDR with shut off control
850nm Oxide VCSEL laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
35m on 50/125 m MMF
100m on high-bandwidth 50/125um (OM3) MMF
Metal enclosure, for lower EMI
Single 3.3V power supply
Operating temperature range:0°C to 70°C

APPLICATIONS

Topstar’s TOP-SFP+-16G-SR SFP+ transceivers are designed for use in Fibre Channel links up to 16.025 Gb/s data rate over multimode fiber. They are compliant with FC-PI-5 Rev. 6.00a, SFF-8472 Rev 11.0c and SFF-8081h, and compatible with SFF-8432b and applicable portions of SFF-8431 Rev. 4.1d. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5. See Topstar Application Note AN- 2038 for more details6.

Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment

2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.

4.Customized label and package , OEM and ODM service offered .
