Compatible 5G Network 25GE SFP+ 1310nm 10KM For Fibre Channel and 25G Ethernet 25G SFP28 ER industrial optical modules with Hot-Pluggable

25GE SFP+ 1310nm 40KM Optical Transceiver: SFP+ optical transceivers are designed for use in Fibre Channel links up to 25.78 Gb/s data rate and up to 40 km link length.

item no.:
25G SFP28 ER 40KM
brand:
Top-Trans
Warranty:
3 Years
Condition:
New
Temperature:
-40℃～+85℃
Data Rate:
25Gb/s
Distance:
40km
Wavelength:
1310nm
Connector:
duplex LC

contact now

product details

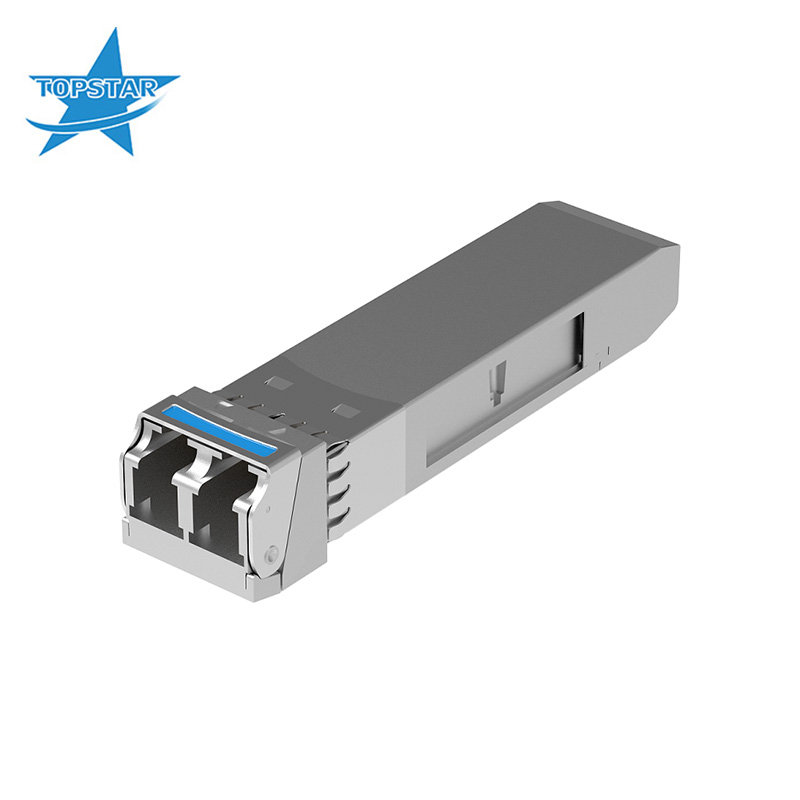

25G SFP28 ER 40KM Optical Transceiver 5G Network Optical Module 25G Ethernet And Fiber Channel SMF Optical Transceiver Industrial-Temperature For Data Centers

Features

Up to 25.78 Gb/s bit rate
Hot-pluggable SFP+ footprint
Built-in digital diagnostic functions
1310nm DFB laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
Up to 40 km on 9/125μm SMF
Metal enclosure, for lower EMI
Single 3.3V power supply
Operating temperature range: 0°C to 70°C/-40°C to 85°C

Applications

25G Ethernet

Specifications

Distance:40 km
Data Rate (max):25.78 Gb/s
Protocol:25G Ethernet Compatible
Operating temperature range: 0°C to 70°C/-40°C to 85°C可选
Diagnostics:Digital
Transmitter:DFB Laser
Receiver:PIN
Voltage Supply:3.3
Connector:LC
Wavelength:1310nm Band

WHY CHOOSE US TOPSTAR

Professional testing equipments: Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner for producing process. Cisco/ Juniper/ Brocade/ Alcatel-lucent/Huawei/ERICSSON/ Datacom etc. guarantee compatibility.
Specialized in developing and producing the most Hi-tech products like: 40G QSFP+/ 100G CFP/CFP2/CFP4 / QSFP28 / 25G SFP28 / 200G QSFP56 /400G QSFP DD/400G OSFP . Every month sales qty transceivers more than 10W pcs .
OEM Compatible transceivers have 3-year warranty , support 3 months unconditional return , 1 year replacement or repair . Brand transceivers have 1 year warranty .
Stocks holds more than 200,000 transceivers at any one time for immediate delivery. Shenzhen sales center, Shenzhen OEM/ODM factory , Shenzhen warehouse , HK warehouse , USA San Francisco branch to support fast service and shipment .
