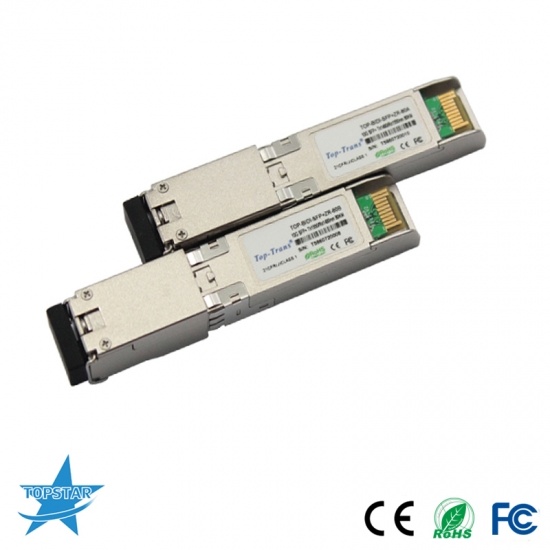

TOP-BIDI-SFP+-ZR-49/55 series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The TOP-BIDI-SFP+-ZR-49/50 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm; The transmitter section uses a EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
item no.:
TOP-BIBI-SFP+-ZR-55lead time:
1-3 working daysproduct orgin:
Chinabrand:
Top-Transshipping port:
Shenzhenpayment:
EXWprice:
$837/PCprice range:
1-6/837$Warranty:
3 YearsCondition:
NewTemperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃Data Rate:
10GDistance:
80kmWavelength:
1550/1490
Fiber optic onu gpon modem 10G Tx1550/Rx1490nm 80km optical communication
PRODUCTS FEATURES
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Cooled 1490nm EML transmitter, 1550nm APD receiver
Cooled 1550nm EML transmitter, 1490nm APD receiver
Applicable for 80km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431
Operating case temperature: Commerical:0 to 70 °C
APPLICATIONS
10.3125Gbps Ethernet
Other optical link
Quality Guarantee:
Top-trans SFP passed quality system verifications: CE, RoHS, FCC.
Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.
Warranty:
If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
Compatibility:
Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.
Shipping:
1. International Express: DHL, FedEx, UPS, TNT and EMS or others according to customers.
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 1 working day after received payment.
Payment Terms:
1. Payment: T/T, Western Union, MoneyGram,HSBC, as well as Cash Payment
2. MOQ: 1pcs
3. Warranty : 1 year
4. Package Informations: According to quantity ,we can provide professional package, 10/20/36 pcs in one anti-static plastic box, retail package. We can also do as your requirement.
prev :
TOPSTAR compatible Finisar Juniper BIDI TOP-SFP+10G-LR 1310nm SMF SFP transceivernext :
Fiber optic cable price 10G Tx1490/Rx1550nm 80km 24-port sfp switch
48 Port SFP Switch 10G Tx1270/Rx1330nm 10km BIDI Bi-directional SFP Mini-GBIC
SFP+10G 10KM 1270 is hot pluggable 3.3VSmall-Form-Factor transceiver module.It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 10kmin9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of TxDisable.TxFault is provided to indicate that degradation of the laser .Loss of signal (LOS)output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
10g Sfp Compatibility Matrix Tx1330/Rx1270nm 10km BIDI Manufacturers WDM
SFP+10G 10KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module.It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 10km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Fiber Optic Switches 10G Tx1270/Rx1330nm 20km BIDI Sfp Transceiver Module
BIDI SFP+ 10G 20KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to 20km in9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of TxDisable. TxFault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
SFP Media Converter 10G Tx1330/Rx1270nm 20km BIDI Cisco Router
SFP+ 10G 20KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 20km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Asr 9010 Router 10G Tx1270/Rx1330nm 40km Patch Cord Cable Sfp Module
SFP+ 10G 40KM 1270 is hot pluggable 3.3VSmall-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472andSFP+MSA. The module data link up to 40km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. TxFault is provided to indicate that degradation of the laser. Loss of signal(LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Switch 10G Tx1330/Rx1270nm 40km Transmissions Wdm Cwdm
SFP+ 10G 40KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+MSA. The module data link up to 40kmin9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. TxFault is provided to indicate that degradation of the laser. Loss of signal (LOS) out put is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Asa Firewall Price 10G Tx1270/Rx1330nm 60km Hollow Fiber Membrane Module
SFP+10G 60KM 1270 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 60km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Compatible Firewall 10G Tx1330/Rx1270nm 60km Single Mode Fiber Optic Cable
SFP+ 10G 60KM 1330 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 60km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
