NVIDIA MMA4Z00-NS400 400G OSFP SR4 850nm MPO-12 APC Flat-Top Transceiver

NVIDIA MMA4Z00-NS400 400Gb/s OSFP SR4 Flat-Top 850nm MPO-12/APC 50m Transceiver

Brand	NVIDIA
Model Number	MMA4Z00-NS400
Data Rate	400Gb/s
Form Factor	OSFP flat-top
Optical Type	SR4 multimode, 850nm VCSEL
Optical Connector	Single MPO-12/APC
Maximum Reach	30m on OM3; 50m on OM4
Protocol	InfiniBand and Ethernet
Condition	New
Warranty	1 year

item no.:
MMA4Z00-NS400
lead time:
5-7days
product orgin:
Thailand
brand:
Mellanox
shipping port:
HongKong
payment:
EXW
price:
$880/piece
market price:
$900
price range:
1-10/880$
color:
Grey
Warranty:
1 Year
Condition:
New
Data Rate:
400G
Distance:
50m
Wavelength:
850nm

contact now

product details

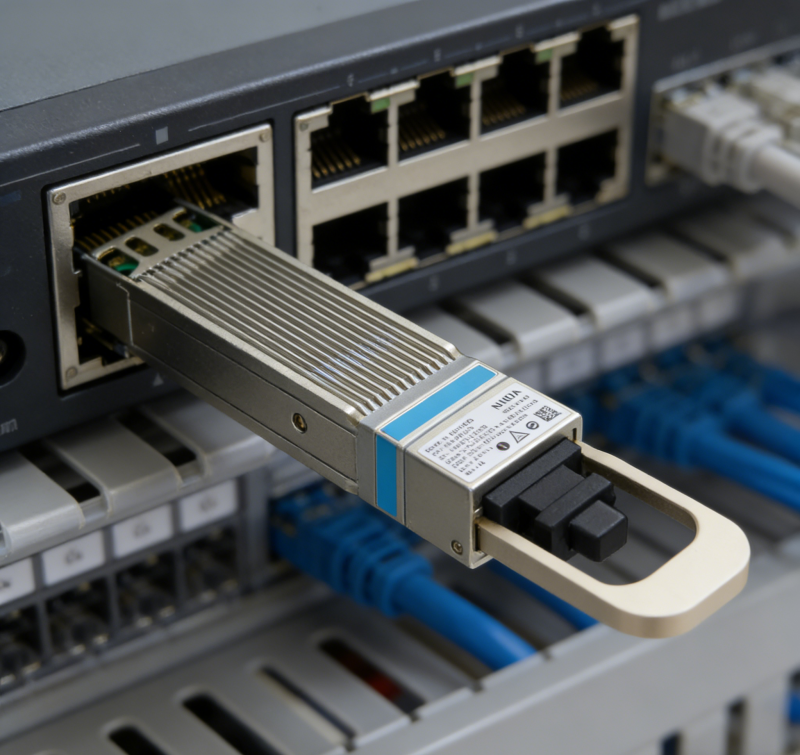

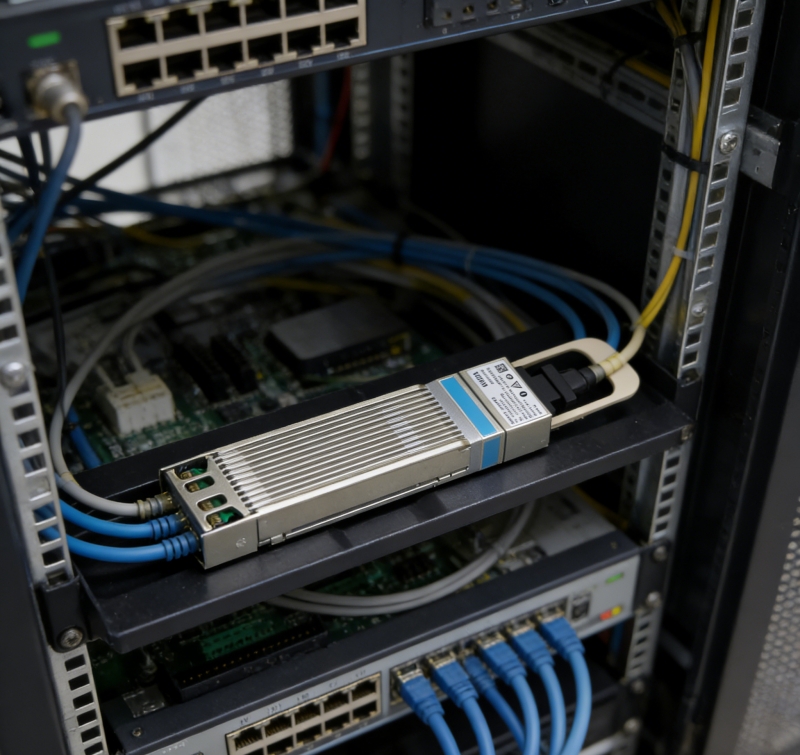

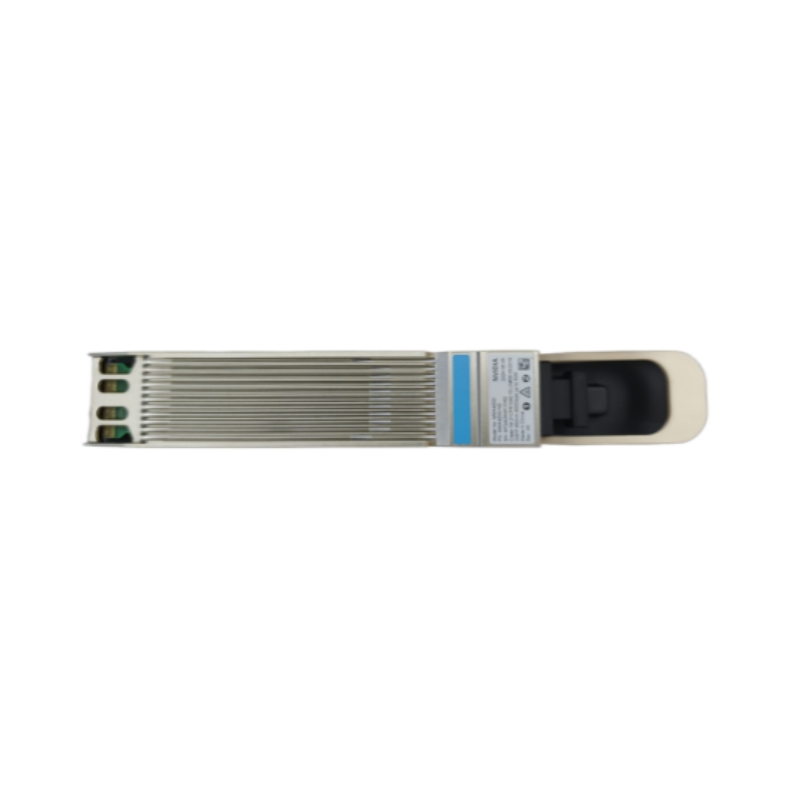

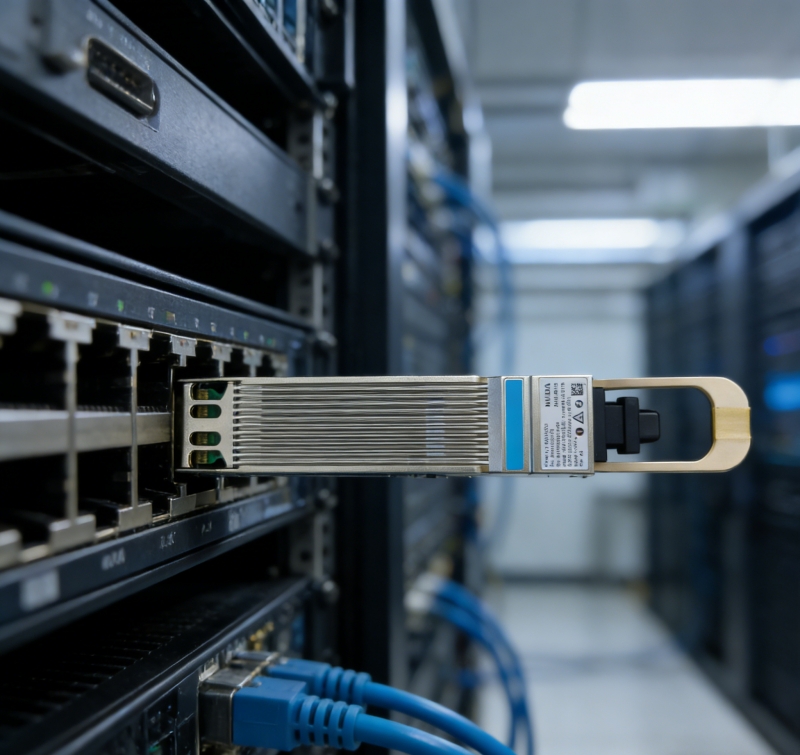

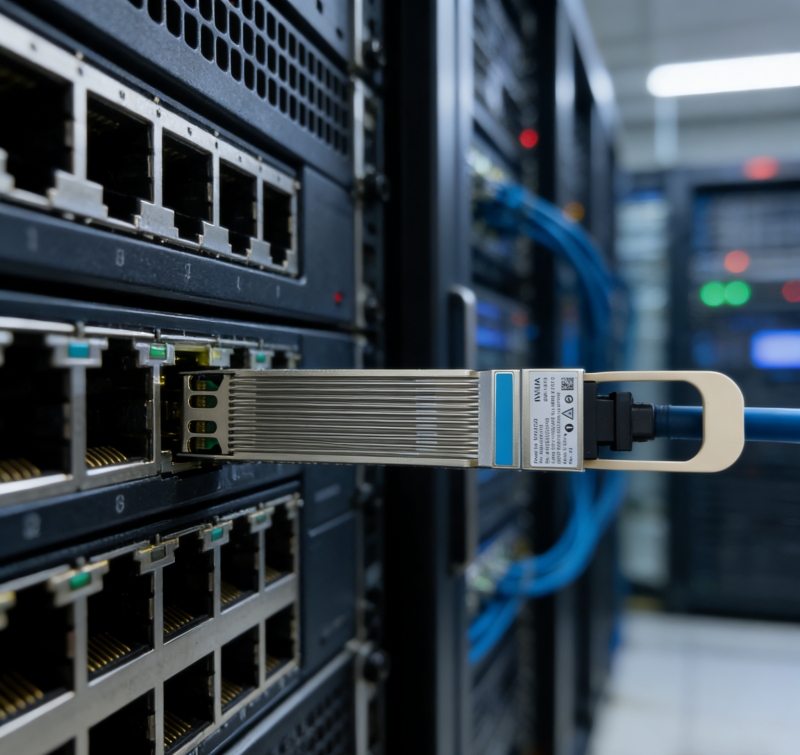

NVIDIA MMA4Z00-NS400 400Gb/s OSFP SR4 Flat-Top Transceiver

The NVIDIA MMA4Z00-NS400 is a single-port 400Gb/s OSFP SR4 multimode transceiver for InfiniBand and Ethernet. It uses four 100G-PAM4 electrical and optical channels, 850nm VCSEL optics, and a single MPO-12/APC connector. The official reach is up to 30m on OM3 multimode fiber and up to 50m on OM4 multimode fiber, assuming the documented link configuration. The flat-top OSFP shell is designed to use the riding heat sink in the relevant ConnectX-7 connector cage.

Official configuration

Model: MMA4Z00-NS400
Rate: 400Gb/s SR4 multimode
Form factor: flat-top OSFP
Connector: single MPO-12/APC
Optics: 850nm VCSEL, 4 x 100G-PAM4
Reach: 30m on OM3 or 50m on OM4
Protocol: InfiniBand and Ethernet

Link-planning checks

Use an MPO-12/APC cable assembly; APC and UPC connector types must not be mixed. Confirm the host OSFP cage, switch or adapter support, fiber grade, polarity, patch-panel count, cooling, and desired operating mode. Share the host model, fiber type, total link distance, existing cable part number, and quantity so that the transceiver and fiber assembly can be reviewed together before ordering.
