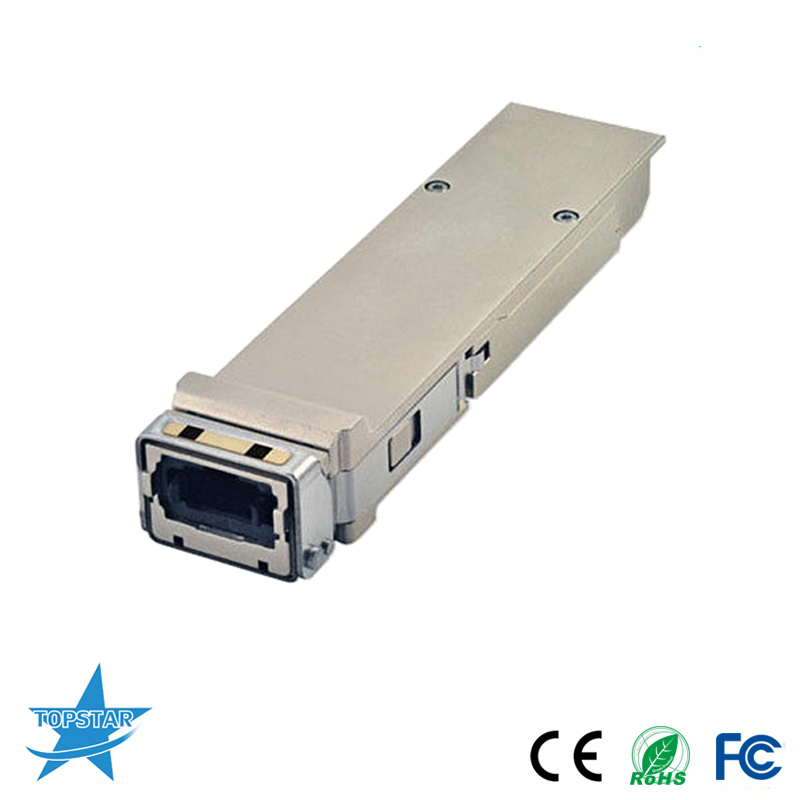

100G CFP4 100GBASE-LR4 100G 10KM Optical Transceiver

The 100G CFP4 100GBASE-LR4 10KM transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.

item no.:
TOP-CFP4-100G-LR4
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Brand new
Temperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃
Data Rate:
100GB
Distance:
10KM
Wavelength:
1310NM
Connector:
MPO/MTP/LC

contact now

Datasheet

product details

100G CFP4 100GBASE-LR4 100G 10KM Optical Transceiver

The 100G CFP4 100GBASE-LR4 10KM Transceiver is compatible with Cisco Huawei Juniper Arista etc. equipments for 5G wireless network solution.

Features

Hot pluggable CFP4 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4 and CFP-MSA-CFP4-HW-Specification
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
MDIO management interface with digital diagnostic monitoring
Power consumption less than 6W
Duplex LC receptacle
RoHS-6 compliant

Applications

100GBE interconnects
High-speed core router connections&Datacom/Telecom switch
Data aggregation and backplane applications
Proprietary protocol and density application

100G CFP4 LR4
