Optical Transceiver Module
100G QSFP28
new products
  • 400G QSFP-DD FR4 2KM
    Compatible Finisar Cisco T-DQ4CNT-N00 TOP-400G QSFP-DD 400Gb/s QSFP-DD FR4 2km SMF Optical Transceiver

    Compatible Finisar Cisco T-DQ4CNT-N00 TOP-400G QSFP-DD 400Gb/s QSFP-DD FR4 2km SMF Optical Transceiver QSFP-DD MSA compliant,4 CWDM lanes MUX/DEMUX design,100G Lambda MSA 400G-FR4 Specification compliant,Up to 2km transmission on single mode fiber (SMF) with FEC,Operating case temperature: 0 to 70oC,8x53.125Gb/s electrical interface (400GAUI-8),Data Rate 106.25Gbps (PAM4) per channel.,Maximum power consumption 12W,Duplex LC connector,RoHS compliant

    read more
  • QSFP+ 40G
    Finisar FTL410QE4C Compatible 40GBASE SR4 40GBASE-SR4 850nm 150m Gen4 QSFP+ Fiber Module

    Finisar's FTL410QE4C 40G SR4 QSFP+ optical transceivers are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and breakout to 4* 10GBASE-SR.

    read more
  • 100GBASE QSFP28 Optical Module
    100G QSFP28 Transceiver 100GBASE-ER4 100GB 40KM 5G Optical Module

    Buy 100Gb/s 100GBASE-ER4 40KM QSFP28 transceiver compatible with Juniper Huawei Brocade, Force10 Networks 100GBASE-ER4 (SMF, 1310nm, 40km) & price list on Topstar, Hot pluggable QSFP28 MSA form factor,Compliant to IEEE 802.3ba 100GBASE-ER4,Up to 40km reach for G.652 SMF,Single +3.3V power supply,Operating case temperature: 0~70oC,Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm),Receiver: 4x25Gb/s PIN ROSA,4x28G Electrical Serial Interface (CEI-28G-VSR),Maximum power consumption 4.0W,Duplex LC receptacle,RoHS-6 compliant

    read more
  • 100GBASE QSFP28
    100G QSFP28 100GBASE-LR4 100GB 10KM 5G Wireless SFP Transceiver

    The 100G QSFP28 100GBASE-LR4 10KM transceiver data sheet (singlemode, 1310nm, 10km) is Compatible with Linksys, Ericsson, DCN, Allied, price list on Topstar , buy it now!

    read more
  • 100G CFP
    100G CFP 1310km 10KM 100Gbase-LR4 5G Wireless SFP Transceiver

    The 100G CFP 1310km 10KM 100Gbase-LR4 transceiver's designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications. Hot Pluggable CFP MSA package,IEEE 802.3ba 100GBASE-LR4 compliant,ITU-T 4I1-9D1F compliant,CFP-MSA-HW-Spec-rev1-40 compliant,Up to 10km for G.652 SMF,Receiver: 4-lane x 25Gb/s PIN ROSAs,Transmitter: 4-lane x 25Gb/s LAN-WDM EA-DFB TOSAs (1295.56,1300.05,1304.58,1309.14nm),10x10G Electrical Serial,Interface (CAUI/OTL4.10),MDIO management interface with Digital Diagnostic,+3.3V power supply,Power consumption less than 12W,Compact size: 144.75 x 82 x 13.6 mm,Operating case temperature: 0 to +70 ℃,Duplex SC or LC Receptacle,ROHs-6 compliant

    read more
  • 100G CFP2
    100G CFP2 100GBASE-SR10 100GBASE optical transceiver

    The 100G CFP2 100GBASE-SR10 transceiver's with 10 channels, designs are optimized for high performance and cost efficiency to provide customers the best solutions for Datacom and Telecom applications.

    read more

100G QSFP28 100GBASE-LR4 100GB 10KM 5G Wireless SFP Transceiver

The 100G QSFP28 100GBASE-LR4 10KM transceiver data sheet (singlemode, 1310nm, 10km) is Compatible with Linksys, Ericsson, DCN, Allied, price list on Topstar , buy it now!
  • item no.:

    TOP-QSFP28-100G-LR4
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Brand new
  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃
  • Data Rate:

    100GB
  • Distance:

    10KM
  • Wavelength:

    1310nm
  • Connector:

    MPO/MTP
product details

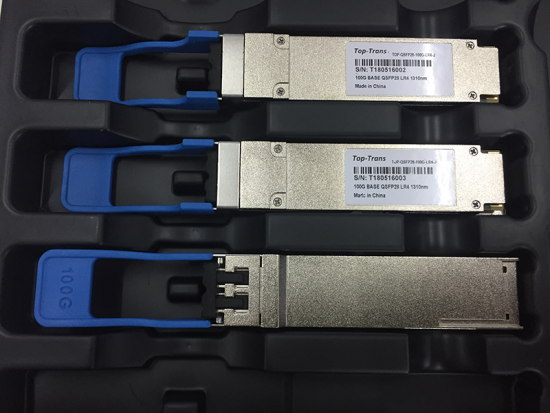

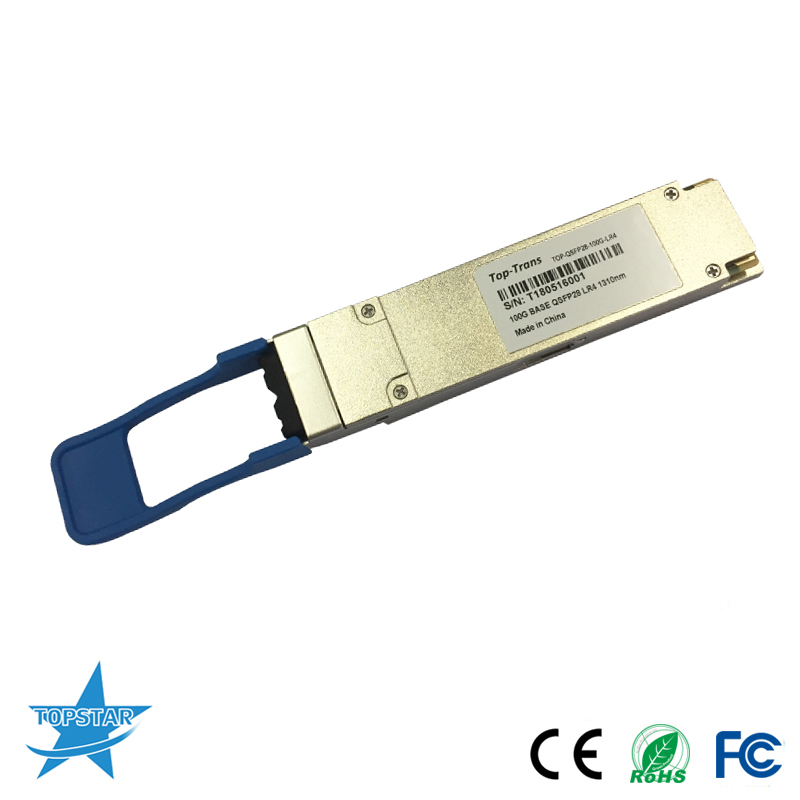

100G QSFP28 100GBASE-LR4 100GB 10KM 5G Wireless SFP Transceiver

The 100G QSFP28 100GBASE-LR4 10KM Transceiver is compatible with Cisco Huawei Juniper Arista etc. equipments for 5G wireless network solution.


Features

Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-LR4
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant


Applications

100GBASE-LR4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections

100G QSFP28 LR4

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

SFP transceiver


Compatibility

Testing in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc devices to guarantee 100% compatible with your equipment.

optical module supplier


OEM& ODM

Customized label and package , OEM and ODM service offered

fiber transceiver manufacturer


Send Us An Inquiry

We will contact you as soon as possible!

related products
  • 100GBASE QSFP28 Optical Module 100G QSFP28 Transceiver 100GBASE-ER4 100GB 40KM 5G Optical Module

    Buy 100Gb/s 100GBASE-ER4 40KM QSFP28 transceiver compatible with Juniper Huawei Brocade, Force10 Networks 100GBASE-ER4 (SMF, 1310nm, 40km) & price list on Topstar, Hot pluggable QSFP28 MSA form factor,Compliant to IEEE 802.3ba 100GBASE-ER4,Up to 40km reach for G.652 SMF,Single +3.3V power supply,Operating case temperature: 0~70oC,Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm),Receiver: 4x25Gb/s PIN ROSA,4x28G Electrical Serial Interface (CEI-28G-VSR),Maximum power consumption 4.0W,Duplex LC receptacle,RoHS-6 compliant

  • 100GBASE QSFP28 Fiber Transceiver 100G QSFP28 CWDM 2KM MPO Multi Mode Fiber Transceiver

    This product is a 100Gb/s transceiver module,which is 10GBASE 100G QSFP28 CWDM 2KM. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

  • 100GBASE QSFP28 100G QSFP28 100GBASE-SR4 100GB 100M SR Transceiver Module

    The 100G QSFP28 100GBASE-SR4 module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

  • Finisar FTLC1152SGPL  QSFP28 100GBASE-IR4 Finisar FTLC1152SGPL compatible 100GBASE-IR4 CWDM QSFP 2KM QSFP28 module

    This product is a 100Gb/s transceiver module designed for optical communication applications compliant with the QSFP MSA,CWDM4 MSA and portions of IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts  them  to 4 output  channels   of electrical data.

  • Finisar FTLC9551REPM QSFP28 100GBASE-SR4 Finisar FTLC9551REPM compatible 100GBASE-SR4 OTU4&128G 100m QSFP

    This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.

  • Finisar FTLC1152SGPL  QSFP28 100GBASE-IR4 Finisar FTLC1151RDPL compatible 100GBASE-LR4 10km 100G QSFP28 CWDM4 Optical Transceiver

    This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

  • Finisar FTLC1151RDPL  100GBASE-LR4 QSFP28 Compatible Finisar FTLC1151RDPL Compatible 100GBASE-LR4 QSFP28 10km Optical Module

    This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

  • 100G QSFP28 4WDM 10km Compatible 100G QSFP28 4WDM 10km optical transceiver with Hot-pluggable For Fibre Channel and 100G Ethernet SMF 5G Network transceiver module

    T100G QSFP28 4WDM 10km industrial optical transceiver (GQS-SPO101-4LR4T) is designed for 100G Ethernet and CPRI/eCPRI links reach up to 10km (w/ FEC) on duplex single-mode fibers., 4 channels full-duplex transceiver module,Hot-pluggable QSFP28 form factor,4 channels uncooled CWDM DFB transmitter and PIN ROSA,Compliant with QSFP28 MSA, 4WDM4-10 MSA, and CPRI/eCPRI,Data rate up to 103Gbps,4 CWDM wavelengths of 1271nm, 1291nm, 1311nm, and 1331nm,Reach up to 10km on SMF with FEC,Low power consumption < 3.5W,Duplex LC receptacles,Operating case temperature range -40 to 85°C (I-temp),Single 3.3V power supply,RoHS-6 compliant (lead free)
