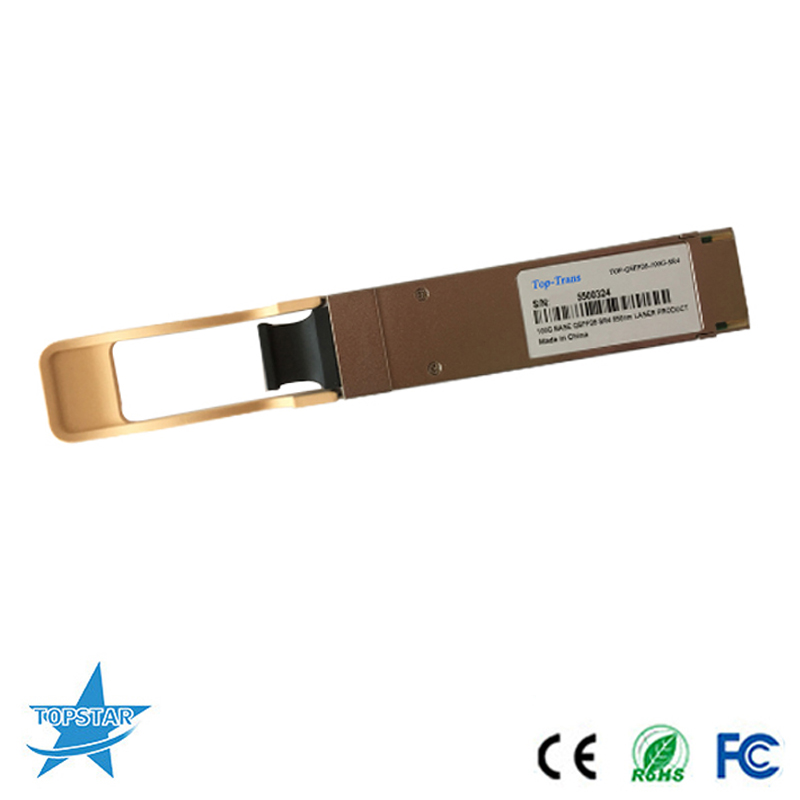

100G QSFP28 CWDM 2KM MPO Multi Mode Fiber Transceiver

This product is a 100Gb/s transceiver module,which is 10GBASE 100G QSFP28 CWDM 2KM. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

item no.:
TOP-QSFP-100G-CWDM4
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Brand new
Temperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃
Data Rate:
100GB
Distance:
2KM
Wavelength:
CWDM
Connector:
MPO/MTP

contact now

Datasheet

product details

100G QSFP28 CWDM 2KM MPO Multi Mode Fiber Transceiver

The 100G QSFP28 100GBASE 2KM Transceiver is compatible with Cisco Huawei Juniper Arista etc. equipments for 5G wireless network solution.

Features

4 channels full-duplex transceiver modules
Transmission data rate up to 26Gbps per channel
4 x 26Gb/s DFB-based CWDM uncooled transmitter
4 channels PIN ROSA

Internal CDR circuits on both receiver and transmitter channels
Low power consumption <3.5W
Hot Pluggable QSFP form factor
Up to reach 2km for G.652 SMF[with KR4 FEC]
Duplex LC receptacles
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant(lead free)
