Finisar FTLC9551REPM compatible 100GBASE-SR4 OTU4&128G 100m QSFP

100G QSFP28
new products

Finisar FTLC9551REPM QSFP28 100GBASE-SR4
Finisar FTLC9551REPM QSFP28 100GBASE-SR4 Finisar FTLC9551REPM QSFP28 100GBASE-SR4 Finisar FTLC9551REPM QSFP28 100GBASE-SR4

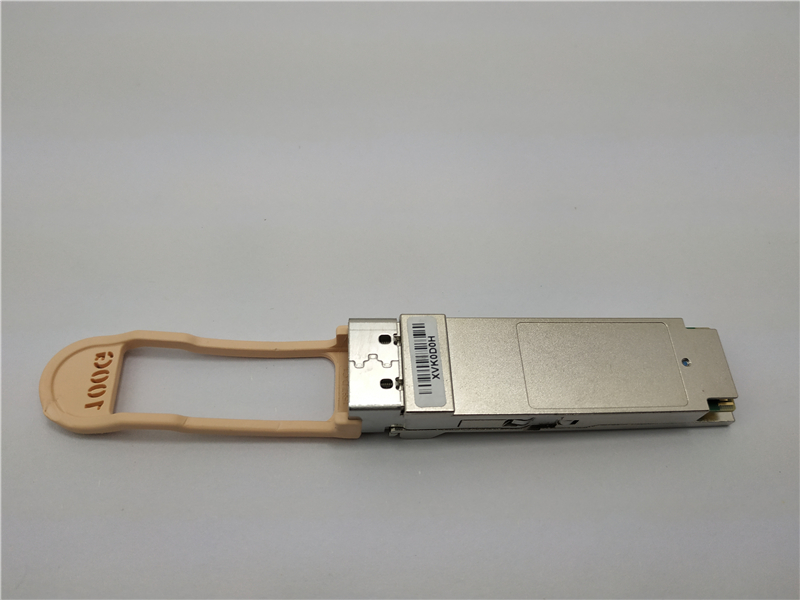

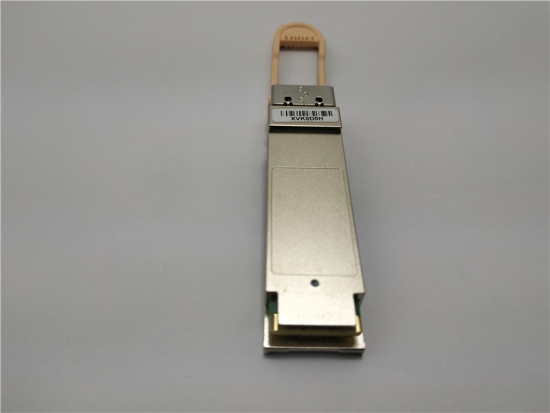

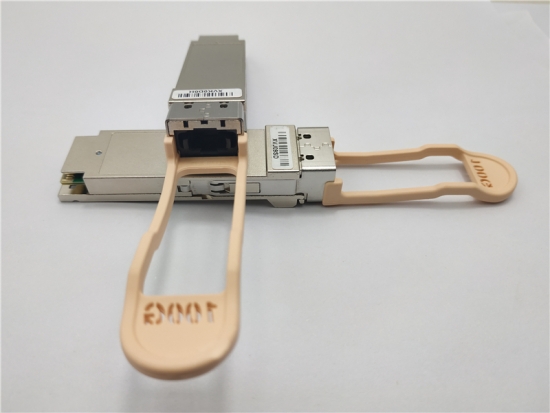

Finisar FTLC9551REPM compatible 100GBASE-SR4 OTU4&128G 100m QSFP

This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.

  • item no.:

    TOP-QSFP28-100G-SR4

  • lead time:

    1-3 working days

  • product orgin:

    China

  • brand:

    Top-Trans

  • payment:

    EXW

  • price range:

    1-6/229$

  • Warranty:

    3 Years

  • Temperature:

    0℃~70℃

  • Data Rate:

    100G

  • Distance:

    100m

  • Wavelength:

    850nm

  • Connector:

    MPO
contact now
Datasheet
product details

Finisar FTLC9551REPM compatible 100GBASE-SR4 OTU4&128G 100m QSFP

Finisar FTLC9551REPM 100G SR


Features


4 independent full-duplex channels

Up to 25Gb/s data rate per channel

QSFP28  MSA compliant

Compliant to IEEE 802.3bm 100GBASE-SR4

Up to 100m OM4 MMF transmission

Operating case temperature: 0 to 70oC

Single 3.3V power supply

Maximum power consumption 3.5W

MTP/MPO optical connector

RoHS-6 compliant



Applications


Rack to Rack

Data Center

Infiniband QDR, DDR and SDR

100G Ethernet



Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.




OEM& ODM:

Customized label and package , OEM and ODM service offered.


tags : Finisar FTLC9551REPM QSFP 100GBASE-SR4 OTU4&128G 100m QSFP Finisar 100GBASE-SR4 Finisar OTU4&128G 100m 100GBASE-SR4 100m
