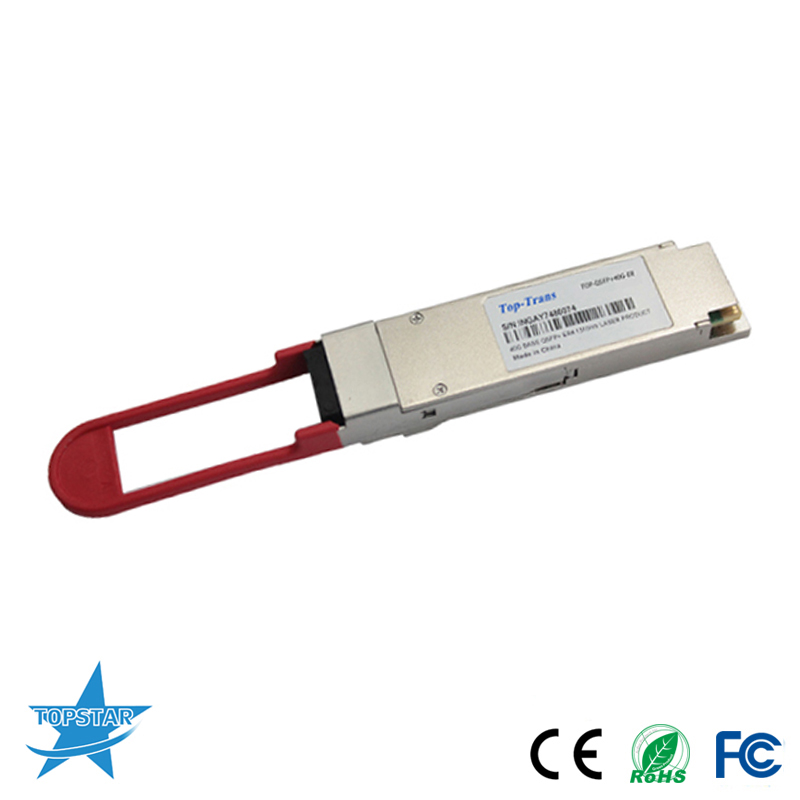

5G Wireless Transceiver 40GBASE-ER4 QSFP+ 40G CWDM 40km Fiber Module

The 40G 40GBASE-ER4 ER4 40KM QSFP+ transceiver is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications.

item no.:
TOP-QSFP+-40G-ER
brand:
Top-Trans
shipping port:
Shenzhen
Warranty:
3 Years
Condition:
Brand new
Temperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃
Data Rate:
40GB
Distance:
40KM
Wavelength:
CWDM
Connector:
MPO/MTP

contact now

Datasheet

product details

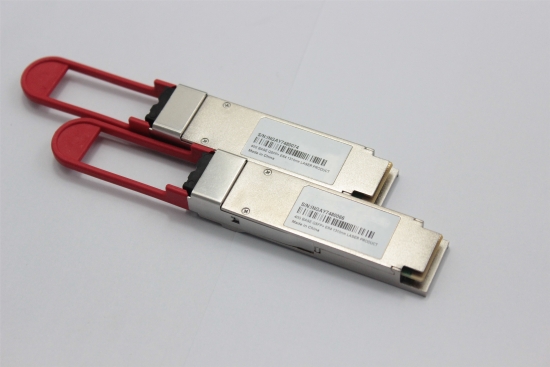

5G Wireless Transceiver 40GBASE-ER4 QSFP+ 40G CWDM 40km Fiber Module

The 40G QSFP+ 40GBASE-ER4 40KM Transceiver is compatible with Cisco Huawei Juniper Arista etc. equipments for 5G wireless network solution.

Features

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
QSFP+ MSA compliant
Compliant with QDR/DDR Infiniband data rates
Up to 11.2Gb/s data rate per wavelength
4 CWDM lanes MUX/DEMUX design
Up to 30km transmission on singl e mode fiber (SMF)
Operating case temperature: 0 to 70oC
Maximum power consumption 3.5W
LC duplex connector
RoHS compliant
