SFP Programmer Write 25G 850nm 300m Optical Transceiver Module ISP Network

The 25G SFP28 SR 850nm transceiver modules (25G SFP SR/LR, LC connector) for one-lane 25G/100G Data Center cabling networks, price list on opticalmodulemanufacturers.com , but it now!

item no.:
TOP-SFP+-25G-SR
lead time:
1-3 working days
product orgin:
China
brand:
Top-Trans
shipping port:
Shenzhen
payment:
EXW
price:
$93
Warranty:
3 Years
Temperature:
0℃~70℃/ -5℃~85℃/ -20℃~85℃
Data Rate:
25G
Distance:
300m
Wavelength:
850nm
Connector:
Dual LC

contact now

Datasheet

product details

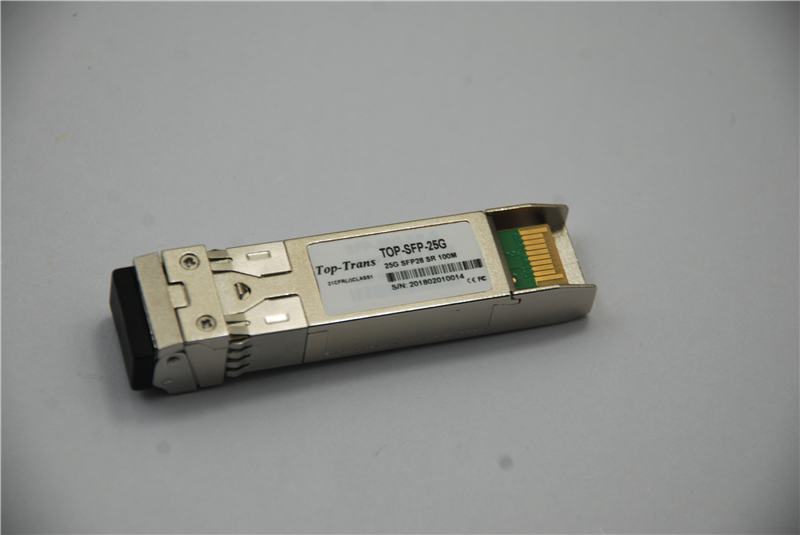

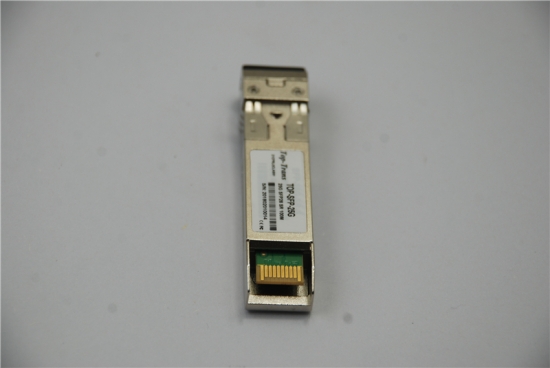

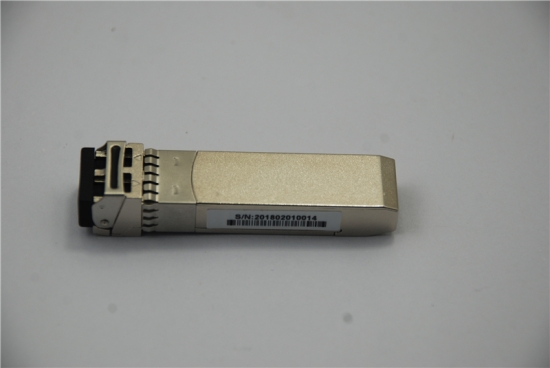

SFP Programmer Write 25G 850nm 300m Optical Transceiver Module ISP Network

SFP28 25G 850nm 300M SR

Features

Hot-pluggable SFP28 form factor
Supports 25Gbps data rate
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
850nm VCSEL laser and PIN photo-detector
Internal CDR on both Transmitter and Receiver channel
Duplex LC receptacle
Single 3.3V power supply
Power dissipation < 1W
Digital diagnostics functions are available via the I2C interface
RoHS-6 compliant
Commercial case temperature range: 0°C to 70°C

Applications

25GBASE-SR Ethernet
32G Fiber Channel

Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.

4.Customized label and package , OEM and ODM service offered

Product Part Number:TOP-SFP28-25G-SR

Description: 25Gbps, 850nm; SFP28, OM4,MMF 100m, DDM 0ºC ~ +70ºC
