Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m Transceiver

40GB QSFP+
new products

40GBASE QSFP+ Transceiver
40GBASE QSFP+ Transceiver 40GBASE QSFP+ Transceiver

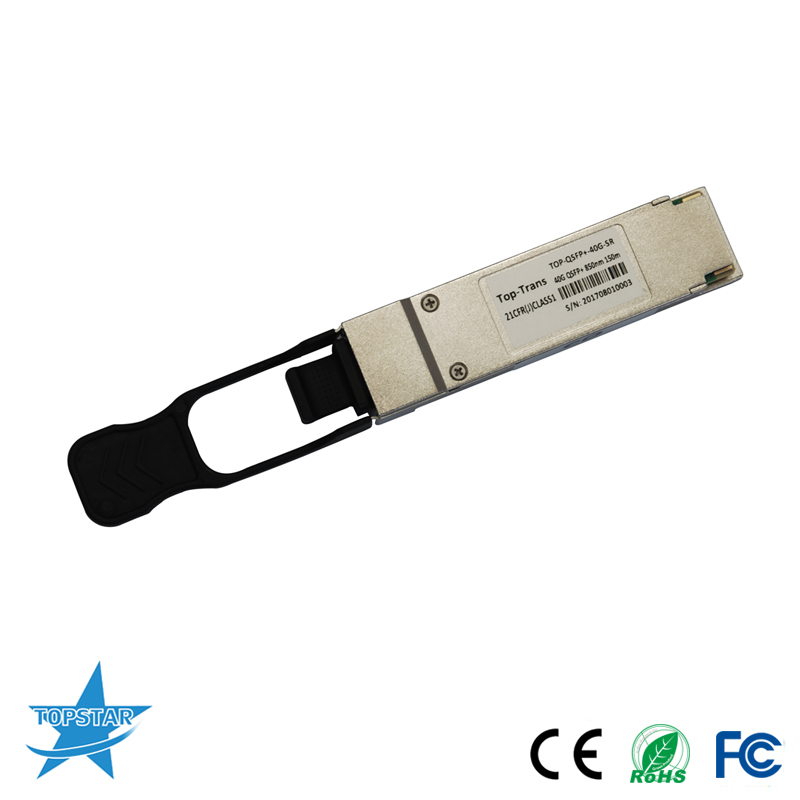

Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150m Transceiver

The 40G 40GBASE-SR4 QSFP+ is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications, which can compatible with Cisco Huawei Juniper Arista etc. equipments.

  • item no.:

    TOP-QSFP+-40G-SR

  • brand:

    Top-Trans

  • shipping port:

    Shenzhen

  • Warranty:

    3 Years

  • Condition:

    Brand new

  • Temperature:

    0℃~70℃/ -5℃~85℃/ -20℃~85℃

  • Data Rate:

    40GB

  • Distance:

    300M

  • Wavelength:

    850nm

  • Connector:

    MPO/MTP
contact now
Datasheet
product details

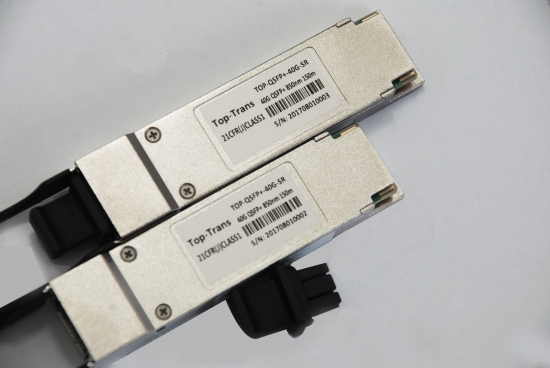

 QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 300m Transceiver

The 40G QSFP+ 40GBASE-SR4 Transceiver is compatible equipments for 5G wireless network solution.


Features

  • 4 channels full-duplex transceiver modules
  • Transmission data rate up to 10.5Gbps per channel
  • 4 channels 850nm VCSEL array
  • 4 channels PIN photo detector array
  • Low power consumption <1.5W
  • Hot Pluggable QSFP form factor
  • Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
  • Single MPO connector receptacle
  • Built-in digital diagnostic functions
  • Operating case temperature 0°C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant

Applications
  • 40GBASE-SR4 40G Ethernet
  • Datacom/Telecom switch & router connections
  • Data Aggregation and Backplane Applications
  • Proprietary Protocol and Density Applications
  • Infiniband transmission at 4ch SDR, DDR and QDR



40g qsfp

Professional Service

Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.

SFP transceiver




OEM& ODM

Customized label and package, OEM and ODM service offered

fiber transceiver manufacturer


tags : Cisco QSFP-40G-SR4 40GBASE-SR4 QSFP+ QSFP+ 850nm 150m Transceiver Cisco QSFP+ Transceiver
