Compatible SFP-GE-T 1000Base Copper Modules 1G RJ45 SFP

BASE-T SFP
new products

SFP-GE-T
SFP-GE-T SFP-GE-T SFP-GE-T SFP-GE-T

Compatible SFP-GE-T 1000Base Copper Modules 1G RJ45 SFP

Compatible SFP-GE-T transceivers are high performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable and support CAT 6. 1000Base Copper Modules support 1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. 1G RJ45 SFP module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

  • item no.:

    Top-SFP-T

  • lead time:

    2-7 Working Days After Payment Received

  • product orgin:

    China

  • brand:

    Top-Trans

  • shipping port:

    Shenzhen

  • Warranty:

    3 Years

  • Condition:

    Compatible

  • Temperature:

    0°C to 70°C

  • Data Rate:

    1000 M

  • Distance:

    100 M

  • Wavelength:

    N/A

  • Connector:

    RJ45
contact now
Datasheet
product details

Compatible Cisco SFP-GE-T 1000Base Copper Modules 1G RJ45 SFP

Compatible SFP-GE-T is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.


Product Features

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

Extended case temperature range (0°C to +70°C )

Fully metallic enclosure for low EMI

Low power dissipation (1.05 W typical)

Compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

1000 BASE-T operation in host systems with SERDES interface

10/100/1000Mbps compliant in host systems with SGMII interface


Applications

1.25 Gigabit Ethernet over Cat 5 cable

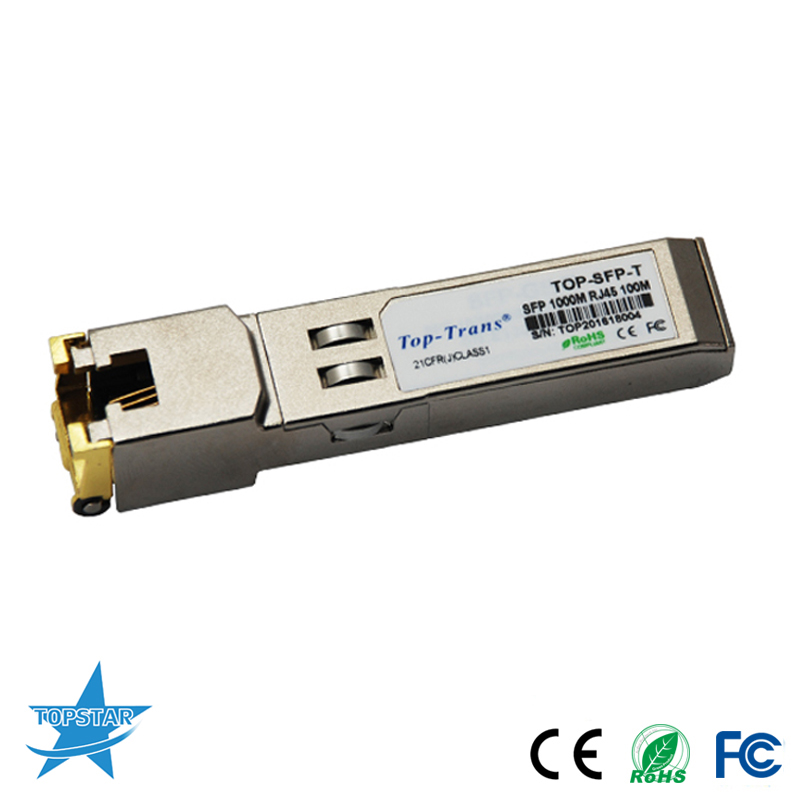

Below is the picture of 1000Base Copper Modules


SFP-GE-T


Professional Service

1G RJ45 SFP is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.





OEM& ODM

Customized label and package. Both OEM and ODM service are offered.

tags : Copatible SFP-GE-T 1000Base Copper Modules 1G RJ45 SFP
