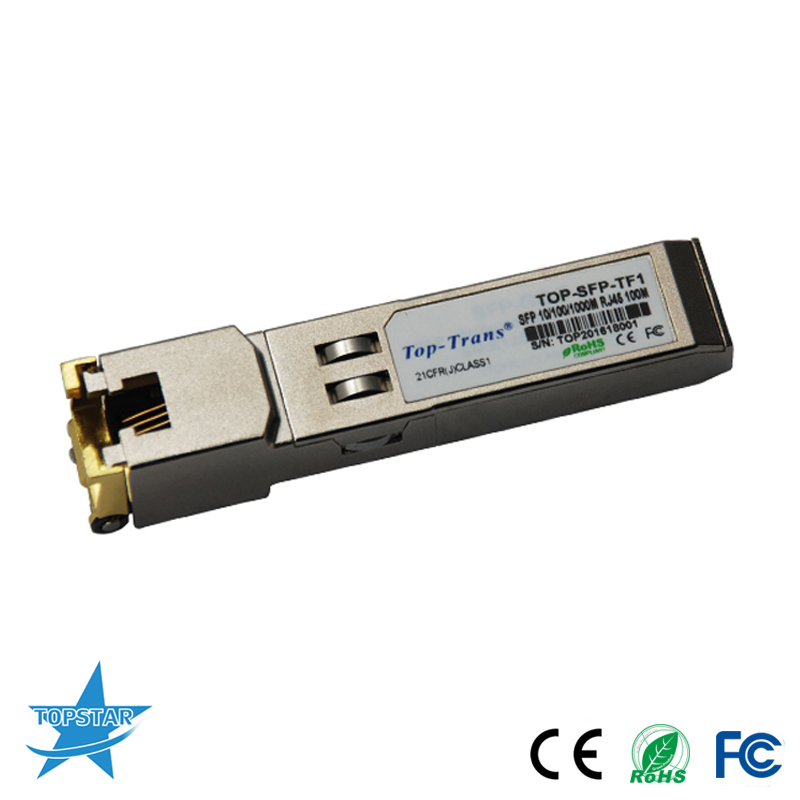

SFP Copper RJ45 Module 10/100/1000 Mbps Modules Ethernet to SFP

SFP Copper RJ45 Module is high performance, cost-effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps (or 10/100/1000Mbps Modules) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.Ethernet to SFP,The module provides standard serial ID information compliant with SFP MSA, which can be accessed with an address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.


  • item no.:

    Top-SFP-TF1
  • lead time:

    2-7 Working Days After Payment Received
  • product orgin:

    China
  • brand:

    Top-Trans
  • shipping port:

    Shenzhen
  • Warranty:

    3 Years
  • Condition:

    Compatible
  • Temperature:

    0°C to 85°C
  • Data Rate:

    1000/100/10 M
  • Distance:

    100 M
  • Wavelength:

    N/A
  • Connector:

    RJ45
product details

SFP Copper RJ45 Module 10/100/1000 Mbps Modules Ethernet to SFP

SFP Copper RJ45 Module is compatible with Cisco Huawei Juniper Arista etc. types of equipment for the network solution.


Product Features

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

Extended case temperature range (0°C to +85°C )

Fully metallic enclosure for low EMI

Low power dissipation (1.05 W typical)

A compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

1000 BASE-T operation in host systems with SERDES interface

10/100/1000Mbps compliant in host systems with SGMII interface

1Gigabit Ethernet over Cat 5 cable

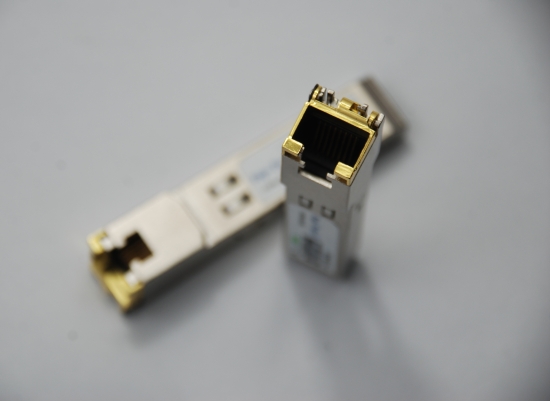

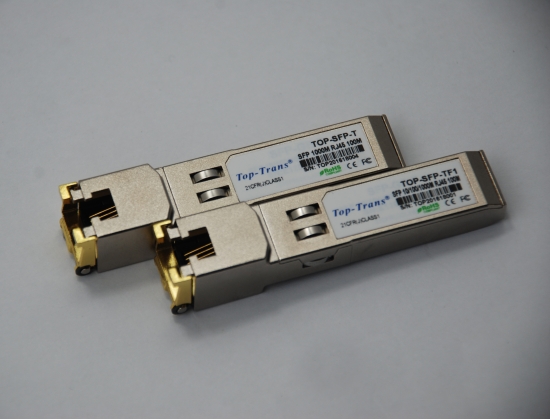

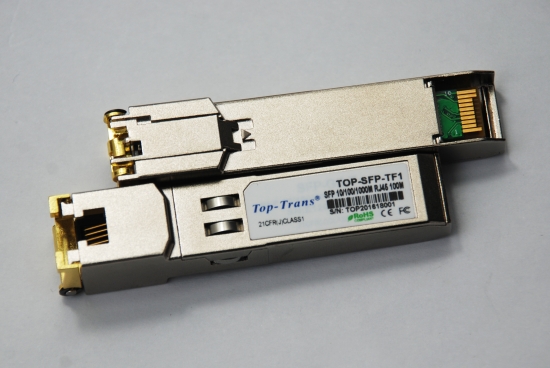

Below is the picture of 10/100/1000 Mbps Modules

10/100/1000 Mbps Modules


Professional Service

Ethernet to SFP is fully tested in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner, etc. The specialist will test the modules before every shipment.



Compatibility

Tested in Cisco/ Brocade/ Juniper/ Dell/ Arista/ HPE/ H3C etc. devices to guarantee 100% compatibility with your target equipment.


OEM& ODM

Customized label and package. Both OEM and ODM service are offered.

Send Us An Inquiry

We will contact you as soon as possible!
