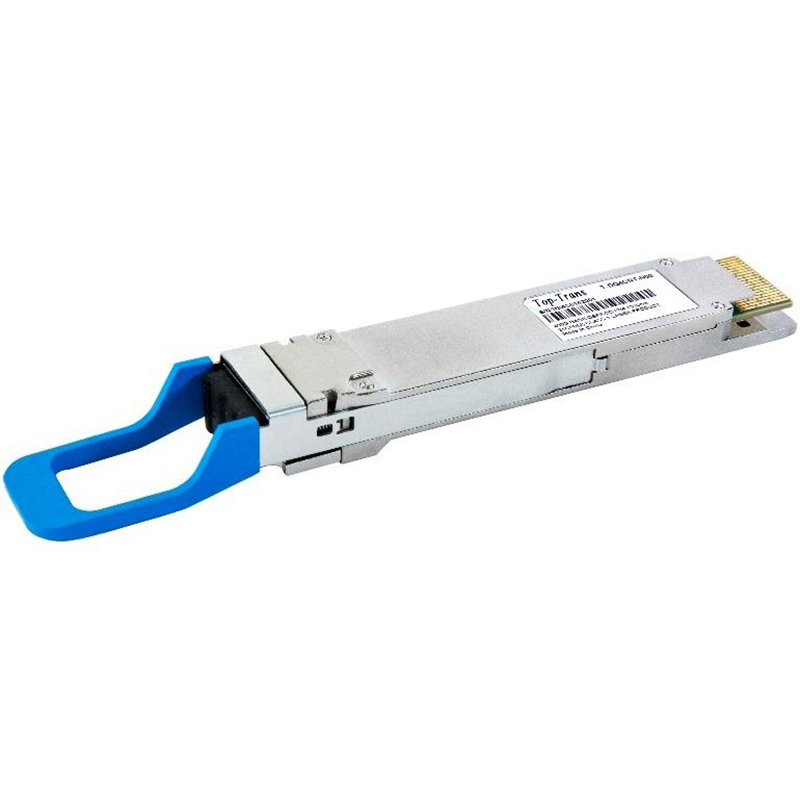

read moreRTXM500-310 200G QSFP56 FR4 transceiver modules are designed for use in 200 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP MSA and IEEE 802.3bs.The optical transceiver is RoHS compliant.
item no.:
200G QSFP56 FR4 2kmbrand:
Top-TransWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
200GDistance:
2kmWavelength:
CWDM4Connector:
LCINNOLIGHT DATA CENTER
10G SFP+
P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
TR-PX13L-N00 | SFP+ LR | 10G | 1310nm DFB | PIN | -8.2 | 0.5 | - | -14.4 | <1w | 10km | 0-70 |
TR-PX15E-N00 | SFP+ ER | 10G | 1550nm EML | PIN | -3 | 3 | - | -15.8 | <1.5w | 40km | 0~70 |
TR-PX15Z-N00 | SFP+ ZR | 10G | 1550nm EML | APD | 0 | 4 | - | -24 | <1.8w | 80km | 0~70 |
25G SFP28
P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
TF-PYxxx-N00 | SFP28 AOC | 25G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 1.0 (each SFP28) | 100m | 0-70 |
TR-PY85S-N00 | SFP28 SR | 25G | 850nm VCSEL | PIN | -8.4 | 2.4 | -10.3 | 2.4 | 1 | 100m | 0~70 |
TR-PY13L-N00 | SFP28 LR | 25G | 1310nm DFB | PIN | -7 | 2 | -13.3 | 2 | 1 | 10km | 0~70 |
TR-PY13E-N00 | SFP28 ER | 25G | 1310nm EML | APD | -3 | 6 | -21 | -4 | 1.5 | 40km | 0~70 |
TR-PB85S-N00 | SFP28 32GFC SR | 28G | 850nm VCSEL | PIN | -6.2 | 2 | -10.3 | 2 | 1 | 100m | 0~70 |
TR-PB13L-N00 | SFP28 32GFC LR | 28G | 1310nm DFB | PIN | -5 | 2 | -13.3 | 2 | 1.2 | 10km | 0~70 |
40G QSFP
P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
TR-QQ85S-N00 | QSFP+ eSR4 | 40G | 850nm VCSEL | PIN | -7.6 | 1 | -9.5 | 2.4 | 1.5 | 100m | 0-70 |
TR-QQ85X-N00 | SFP28 SR | 40G | 850nm VCSEL | PIN | -7.3 | 1 | -9.9 | 2.4 | 1.5 | 300m | 0~70 |
TR-QQ13T-N00 | QSFP+ IR4 | 40G | DFB CWDM | PIN | -7 | 2.3 | -11.7 | 2.3 | 3.5 | 10km | 0~70 |
TR-QQ13L-N00 | QSFP+ LR4 | 40G | DFB CWDM | PIN | -7 | 2.3 | -21 | -4 | 1.5 | 40km | 0~70 |
TR-QQ13E-N00 | QSFP+ ER4 | 40G | DFB CWDM | APD | -2.7 | 4.5 | -21.2 | -4.5 | 3.5 | 40km | 0~70 |
TR-IQ13C-N00 | QSFP+ PSM IR4 | 40G | 1310nm DFB | PIN | -5.5 | 1.5 | -11.5 | 1.5 | 3.5 | 10km | 0~70 |
TR-IQ13L-N00 | QSFP+ PSM LR4 | 40G | 1310nm DFB | PIN | -5.5 | 1.5 | -12.6 | 1.5 | 3.5 | 10km | 0~70 |
TF-QQxxx-N00 | QSFP+ AOC | 40G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 1.5 (each QSFP+) | 100m | 0~70 |
TR-QQ13Y-N00 | QSFP+ LX4(MMF/SMF) | 40G | DFB CWDM | PIN | -5 / -7 | 3.5 / 2.3 | -7 / -11.7 | 3.5 / 2.3 | 3.5 | 150m / 2km | 0~70 |
TF-QPQXxxx-N00 | QSFP+ to 4x SFP+ AOC | 40G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 1.5 (QSFP+)0.8 (each SFP+) | 100m | 0~70 |
100G QSFP28
P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
TR-FC85S-N00 | QSFP28 SR4 | 100G | 850nm VCSEL | PIN | -8.4 | 2.4 | -10.3 | 2.4 | 2.5 | 100m | 0-70 |
TR-FC13R-N00 | QSFP28 LR4 Ethernet | 100G | 1296-1309nm LWDM DFB | PIN | -4.3 | 4.5 | -10.6 | 4.5 | 4 | 10km | 0~70 |
TR-FC13T-N00 | QSFP28 CWDM4 | 100G | DFB CWDM | PIN | -6.5 | 2.5 | -11.5 | 2.5 | 3.5 | 10km | 0~70 |
TR-FC13D-N00 | QSFP28 ER4 Lite | 100G | 1296-1309nm LWDM EML | APD | -2.5 | 6.5 | -16.65 / -20.5 | -3.5 | 4.5 | 30km / 40km (w/ FEC) | 0~70 |
TR-FC13D-NSN | QSFP28 ER4 Lite Dual Rates | 100G / 112G | 1296-1309nm LWDM EML | APD | -0.7 | 6.5 | -14.85 / -18.7 | -3.5 | 4.5 | 30km / 40km (w/ FEC) | 0~70 |
TP-VC13Txxxx-N00 | QSFP28 PSM4 Pigtail | 100G | 1310nm DFB | PIN | -5.5 | 2 | -10.5 | 2 | 3.5 | 2km | 0~70 |
TF-FCxxx-N00 | QSFP28 AOC | 100G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | N/A | 10km | 0~70 |
TF-QQxxx-N00 | QSFP+ AOC | 100G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 2.5 (QSFP28)1.0 (each SFP28) | 100m | 0~70 |
TR-VC13T-N00 | QSFP28 PSM4 | 100G | 1310nm DFB | PIN | -5.5 | 2 | -10.2 | 2 | 3.5 | 2km | 0~70 |
200G QSFP-DD
P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
T-FX4FNS-N00 | QSFP56 SR4 | 200G | 850nm VCSEL | PIN | -6.5 | 4 | -8.4 | 4 | 5.5 | 100m | 0~70 |
T-FX4FNT-H00 | QSFP56 FR4 | 200G | EML CWDM4 | PIN | -4.2 | 4.7 | -8.2 | 4.7 | 6.5 | 2km | 15~65 |
C-FXT4FNMxxx-N00 | QSFP56 200G to QSFP28 2*100G AOC | 200G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A |
8 (200G side) 4 (100G side) |
20m | 0~70 |
400G QSFP-DD SR8
P/N | Product Description | Data Rate(Gbit/s) | TX | RX | TX_Min (dBm) | TX_Max (dBm) | RX_Min (dBm) | RX_Max (dBm) | Power Consumption | Reach |
Temperature (deg C) |
T-DQ8FNS-N00 | QSFP-DD SR8 | 400G | 850nm VCSEL | PIN | -6 | 4 | -7.9 | 4 | 12 | 100m | 0-70 |
T-DP4CNH-N00 | QSFP-DD DR4 | 400G | 1310nm EML | PIN | -2.9 | 4 | -5.9 | 4 | 12 | 500m | 0~70 |
T-DP4CNT-N00 | QSFP-DD DR4+ | 400G | 1310nm EML | PIN | -2.4 | 4 | -6.4 | 4.5 | 12 | 2km | 0~70 |
T-DQ4CNT-N00 | QSFP-DD FR4 | 400G | EML CWDM4 | PIN | -3.3 | 3.5 | -7.3 | 3.5 | 12 | 2km | 0~70 |
T-DQ4CNL-N00 | QSFP-DD LR4 | 400G | EML CWDM4 | PIN | -1.4 | 4.5 | -7.7 | -4.5 | 12 | 10km | 0~70 |
C-DQ8FNMxxx-H00 | QSFP-DD AOC | 400G | 850nm VCSEL | PIN | N/A | N/A | N/A | N/A | 12.0 (each QSFP-DD) | 100m | 0~70 |
T-DQ4CNE-N00 | QSFP-DD ER4 | 400G | EML LWDM4 | APD | 0.4 | 1.5 | -12.6 | -2.5 | 12.0 | 30km 40km (w/ FEC) | 0~70 |
Features
