Optical Transceiver Module
400G 200G OSFP / QSFP-DD
new products
  • XBR-G6MIDR12PTPOD-32G software license
    Brocade XBR-G6MIDR12PTPOD-32G BR-MIDRMFEB-01-Z software license for HD-G620-24-32G switch

    Brand Brocade License PN XBR-G6MIDR12PTPOD-32G License Inside PN  BR-MIDRMFEB-01-Z Place of origin Malaysia Form Factor F/S Inside SFP:8pcs 32G 850nm SW Active Brocade HD-G630-48-32G switch Low End Case Temperature (°C) 0°C High End Case Temperature (°C) 70°C Diagnostics Digital Transmitter VCSEL Receiver PIN Voltage Supply 3.3--5v Connector Dual LC Warranty 1 year Condition new DDMI Yes Time of delivery  Within 24 hours Package Brocade original package

    read more
  • G720-64-32G-F Fiber Optical Switch
    24/64 ports Brocade G720 Switch G720-64-32G-F Fiber Optical Switch

    The Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation, this switch delivers a fixed-port building block designed to maximize the performance of flash and NVMe environments to meet demanding workloads. With Brocade Gen 7 technology, the Brocade G720 delivers far more than just speed and latency improvements. It can eliminate the pain of managing your data center, with autonomous SAN technology to deliver a network that can self-learn, self-optimize, and self-heal without intervention.

    read more
  • QDD-400G-ZRP-S
    Compatible QDD-400G-ZRP-S 400G ZRP Optical Transceivers

    Product Description This MSA compliant QSFP-DD transceiver provides 400GBase-ZR Open ZR+ throughput over Single-mode fiber (SMF) using a coherent wavelength and using an LC connector. It is built to MSA standards and is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty. ProLabs’ transceivers are RoHS compliant and lead-free. TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which is intended to foster fair and open international trade. TAA requires that the U.S. Government may acquire only “U.S. – made or designated country end products.

    read more
  • SFP 1.25G FR 15km
    Compatible Mikrotik XS+2733LC15D SFP 1.25G FR Single Mode 1270nm+ 1330nm 15km Optical Transceivers

    Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Units are tested and compatible with RB260GS,RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN, and CCR1036-12G-4S. Units are compatible with non-MikroTik SFP devices as well. Details Product code XS+2733LC15D Connector Single LC UPC Data Rate 1G / 10G / 25G Distance 15 km Format SFP / SFP+ / SFP28 Mode Single mode Wavelength 1270nm + 1330nm

    read more
  • QSFP+ 10G SR 15km
    Compatible Mikrotik XS+2733LC15D 10G QSFP+ SR Optical Transceivers

    Kit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers

    read more
  • BR6505-24-8G-R/BR6505-24-16GR/BR6505-24-16GR/6505-24-0-R
    12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-24-16GR/BR6510-24-16GR/6505-24-0-R Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01

    12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498

    read more

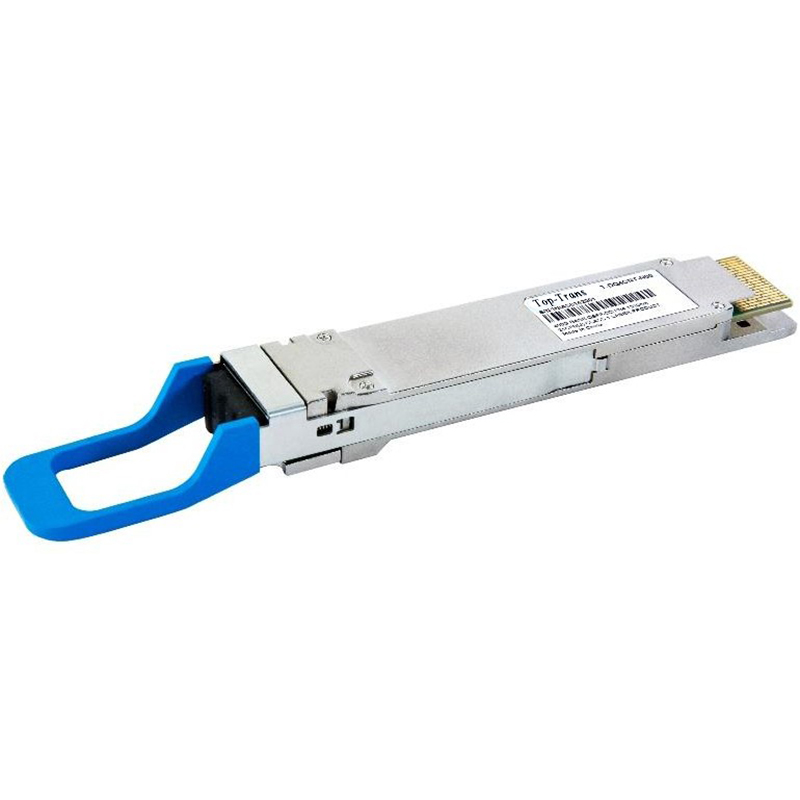

Original RTXM500-320 Optical Module Optical 200G QSFP56 LR4 Optical Transceiver

RTXM500-320 200G QSFP56 LR4 transceiver modules are designed for use in 200 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP MSA and IEEE 802.3bs.The optical transceiver is RoHS compliant.

  • item no.:

    200GBASE-FR4 500m
  • brand:

    Top-Trans
  • Warranty:

    1 Year
  • Condition:

    New
  • Temperature:

    0-70
  • Data Rate:

    200G
  • Distance:

    500m
  • Wavelength:

    CWDM4
  • Connector:

    LC
product details

INNOLIGHT DATA CENTER

10G SFP+

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-PX13L-N00 SFP+ LR 10G 1310nm DFB PIN -8.2 0.5 - -14.4 <1w 10km 0-70
TR-PX15E-N00 SFP+ ER 10G 1550nm EML PIN -3 3 - -15.8 <1.5w 40km 0~70
TR-PX15Z-N00 SFP+ ZR 10G 1550nm EML APD 0 4 - -24 <1.8w 80km 0~70

25G SFP28

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TF-PYxxx-N00 SFP28 AOC 25G 850nm VCSEL PIN N/A N/A N/A N/A 1.0 (each SFP28) 100m 0-70
TR-PY85S-N00 SFP28 SR 25G 850nm VCSEL PIN -8.4 2.4 -10.3 2.4 1 100m 0~70
TR-PY13L-N00 SFP28 LR 25G 1310nm DFB PIN -7 2 -13.3 2 1 10km 0~70
TR-PY13E-N00 SFP28 ER 25G 1310nm EML APD -3 6 -21 -4 1.5 40km 0~70
TR-PB85S-N00 SFP28 32GFC SR 28G 850nm VCSEL PIN -6.2 2 -10.3 2 1 100m 0~70
TR-PB13L-N00 SFP28 32GFC LR 28G 1310nm DFB PIN -5 2 -13.3 2 1.2 10km 0~70

40G QSFP

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-QQ85S-N00 QSFP+ eSR4 40G 850nm VCSEL PIN -7.6 1 -9.5 2.4 1.5 100m 0-70
TR-QQ85X-N00 SFP28 SR 40G 850nm VCSEL PIN -7.3 1 -9.9 2.4 1.5 300m 0~70
TR-QQ13T-N00 QSFP+ IR4 40G DFB CWDM PIN -7 2.3 -11.7 2.3 3.5 10km 0~70
TR-QQ13L-N00 QSFP+ LR4 40G DFB CWDM PIN -7 2.3 -21 -4 1.5 40km 0~70
TR-QQ13E-N00 QSFP+ ER4 40G DFB CWDM APD -2.7 4.5 -21.2 -4.5 3.5 40km 0~70
TR-IQ13C-N00 QSFP+ PSM IR4 40G 1310nm DFB PIN -5.5 1.5 -11.5 1.5 3.5 10km 0~70
TR-IQ13L-N00 QSFP+ PSM LR4 40G 1310nm DFB PIN -5.5 1.5 -12.6 1.5 3.5 10km 0~70
TF-QQxxx-N00 QSFP+ AOC 40G 850nm VCSEL PIN N/A N/A N/A N/A 1.5 (each QSFP+) 100m 0~70
TR-QQ13Y-N00 QSFP+ LX4(MMF/SMF) 40G DFB CWDM PIN -5 / -7 3.5 / 2.3 -7 / -11.7 3.5 / 2.3 3.5 150m / 2km 0~70
TF-QPQXxxx-N00 QSFP+ to 4x SFP+ AOC 40G 850nm VCSEL PIN N/A N/A N/A N/A 1.5 (QSFP+)0.8 (each SFP+) 100m 0~70

100G QSFP28

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
TR-FC85S-N00 QSFP28 SR4 100G 850nm VCSEL PIN -8.4 2.4 -10.3 2.4 2.5 100m 0-70
TR-FC13R-N00 QSFP28 LR4 Ethernet 100G 1296-1309nm LWDM DFB PIN -4.3 4.5 -10.6 4.5 4 10km 0~70
TR-FC13T-N00 QSFP28 CWDM4 100G DFB CWDM PIN -6.5 2.5 -11.5 2.5 3.5 10km 0~70
TR-FC13D-N00 QSFP28 ER4 Lite 100G 1296-1309nm LWDM EML APD -2.5 6.5 -16.65 / -20.5 -3.5 4.5 30km / 40km (w/ FEC) 0~70
TR-FC13D-NSN QSFP28 ER4 Lite Dual Rates 100G / 112G 1296-1309nm LWDM EML APD -0.7 6.5 -14.85 / -18.7 -3.5 4.5 30km / 40km (w/ FEC) 0~70
TP-VC13Txxxx-N00 QSFP28 PSM4 Pigtail 100G 1310nm DFB PIN -5.5 2 -10.5 2 3.5 2km 0~70
TF-FCxxx-N00 QSFP28 AOC 100G 850nm VCSEL PIN N/A N/A N/A N/A N/A 10km 0~70
TF-QQxxx-N00 QSFP+ AOC 100G 850nm VCSEL PIN N/A N/A N/A N/A 2.5 (QSFP28)1.0 (each SFP28) 100m 0~70
TR-VC13T-N00 QSFP28 PSM4 100G 1310nm DFB PIN -5.5 2 -10.2 2 3.5 2km 0~70

200G QSFP-DD

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
T-FX4FNS-N00 QSFP56 SR4 200G 850nm VCSEL PIN -6.5 4 -8.4 4 5.5 100m 0~70
T-FX4FNT-H00 QSFP56 FR4 200G EML CWDM4 PIN -4.2 4.7 -8.2 4.7 6.5 2km 15~65
C-FXT4FNMxxx-N00 QSFP56 200G to QSFP28 2*100G AOC 200G 850nm VCSEL PIN N/A N/A N/A N/A 8 (200G side)
4 (100G side)
20m 0~70

400G QSFP-DD SR8

P/N Product Description Data Rate(Gbit/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature
(deg C)
T-DQ8FNS-N00 QSFP-DD SR8 400G 850nm VCSEL PIN -6 4 -7.9 4 12 100m 0-70
T-DP4CNH-N00 QSFP-DD DR4 400G 1310nm EML PIN -2.9 4 -5.9 4 12 500m 0~70
T-DP4CNT-N00 QSFP-DD DR4+ 400G 1310nm EML PIN -2.4 4 -6.4 4.5 12 2km 0~70
T-DQ4CNT-N00 QSFP-DD FR4 400G EML CWDM4 PIN -3.3 3.5 -7.3 3.5 12 2km 0~70
T-DQ4CNL-N00 QSFP-DD LR4 400G EML CWDM4 PIN -1.4 4.5 -7.7 -4.5 12 10km 0~70
C-DQ8FNMxxx-H00 QSFP-DD AOC 400G 850nm VCSEL PIN N/A N/A N/A N/A 12.0 (each QSFP-DD) 100m 0~70
T-DQ4CNE-N00 QSFP-DD ER4 400G EML LWDM4 APD 0.4 1.5 -12.6 -2.5 12.0 30km 40km (w/ FEC) 0~70



Features


  • Hot-pluggable QSFP56 form factor
  • Supports 212.5Gb/s aggregate bit rate
  • 4x50G PAM4 electrical interface (200GAUI-4)
  • 4x50G CWDM transmitter
  • 4x50G retimed electrical interface
  • Maximum power dissipation: 6W
  • RoHS-6 compliant
  • Operating case temperature range: 0°C to 70°C
  • Single 3.3V power supply
  • Duplex LC receptacles
  • I2C management interface




  • Supports 212.5Gb/s aggregate bit rate
    Power dissipation <6W
    Commercial case temperature range of 0°C to 70°C
    Single 3.3V power supply
    Maximum link length of 10km on Single Mode Fiber (SMF)
    Aligned with IEEE 802.3bs
    4x50G PAM4 DFB-based CWDM transmitter
    4x50G PAM4 retimed 200GAUI-4 electrical interface
    Duplex LC receptacles
    I2C management interface
    RoHS compliant
