Brand Brocade License PN XBR-G6MIDR12PTPOD-32G License Inside PN BR-MIDRMFEB-01-Z Place of origin Malaysia Form Factor F/S Inside SFP:8pcs 32G 850nm SW Active Brocade HD-G630-48-32G switch Low End Case Temperature (°C) 0°C High End Case Temperature (°C) 70°C Diagnostics Digital Transmitter VCSEL Receiver PIN Voltage Supply 3.3--5v Connector Dual LC Warranty 1 year Condition new DDMI Yes Time of delivery Within 24 hours Package Brocade original package
read moreThe Brocade G720 Switch is a Gen 7 switch with 64 ports in an ultra-dense 1U design. Delivering unmatched 64G performance and 50% lower latency compared to the previous generation, this switch delivers a fixed-port building block designed to maximize the performance of flash and NVMe environments to meet demanding workloads. With Brocade Gen 7 technology, the Brocade G720 delivers far more than just speed and latency improvements. It can eliminate the pain of managing your data center, with autonomous SAN technology to deliver a network that can self-learn, self-optimize, and self-heal without intervention.
read moreProduct Description This MSA compliant QSFP-DD transceiver provides 400GBase-ZR Open ZR+ throughput over Single-mode fiber (SMF) using a coherent wavelength and using an LC connector. It is built to MSA standards and is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty. ProLabs’ transceivers are RoHS compliant and lead-free. TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which is intended to foster fair and open international trade. TAA requires that the U.S. Government may acquire only “U.S. – made or designated country end products.
read moreKit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Units are tested and compatible with RB260GS,RB2011LS, RB2011LS-IN, RB2011UAS-IN, RB2011UAS-RM, RB2011UAS-2HnD, RB2011UAS-2HnD-IN, and CCR1036-12G-4S. Units are compatible with non-MikroTik SFP devices as well. Details Product code XS+2733LC15D Connector Single LC UPC Data Rate 1G / 10G / 25G Distance 15 km Format SFP / SFP+ / SFP28 Mode Single mode Wavelength 1270nm + 1330nm
read moreKit contains two SFP+ modules that can be used as a pair to achieve operating data rate up to 25 Gbps for distances up to 15km on a single optical cable. SFP/ SFP+/ SFP28 Optical Transceivers
read more12/24 Ports Compatible Brocade BR6510 Gen 5 Fiber Channel 1U Switch BR6510-24-8G-R/BR6510-12-8GR/BR6510-24-8GR Fiber Optical Switch Suitable For 57-1000117-01/57-1000027-01/57-0000080-01/57-0000088-01/57-0000089-01/57-1000487-01/57-0000089-01/57-1000488-01/57-1000262-01/57-1000489-01/XBR-000458/XBR-000258/XBR-000499/XBR-000498

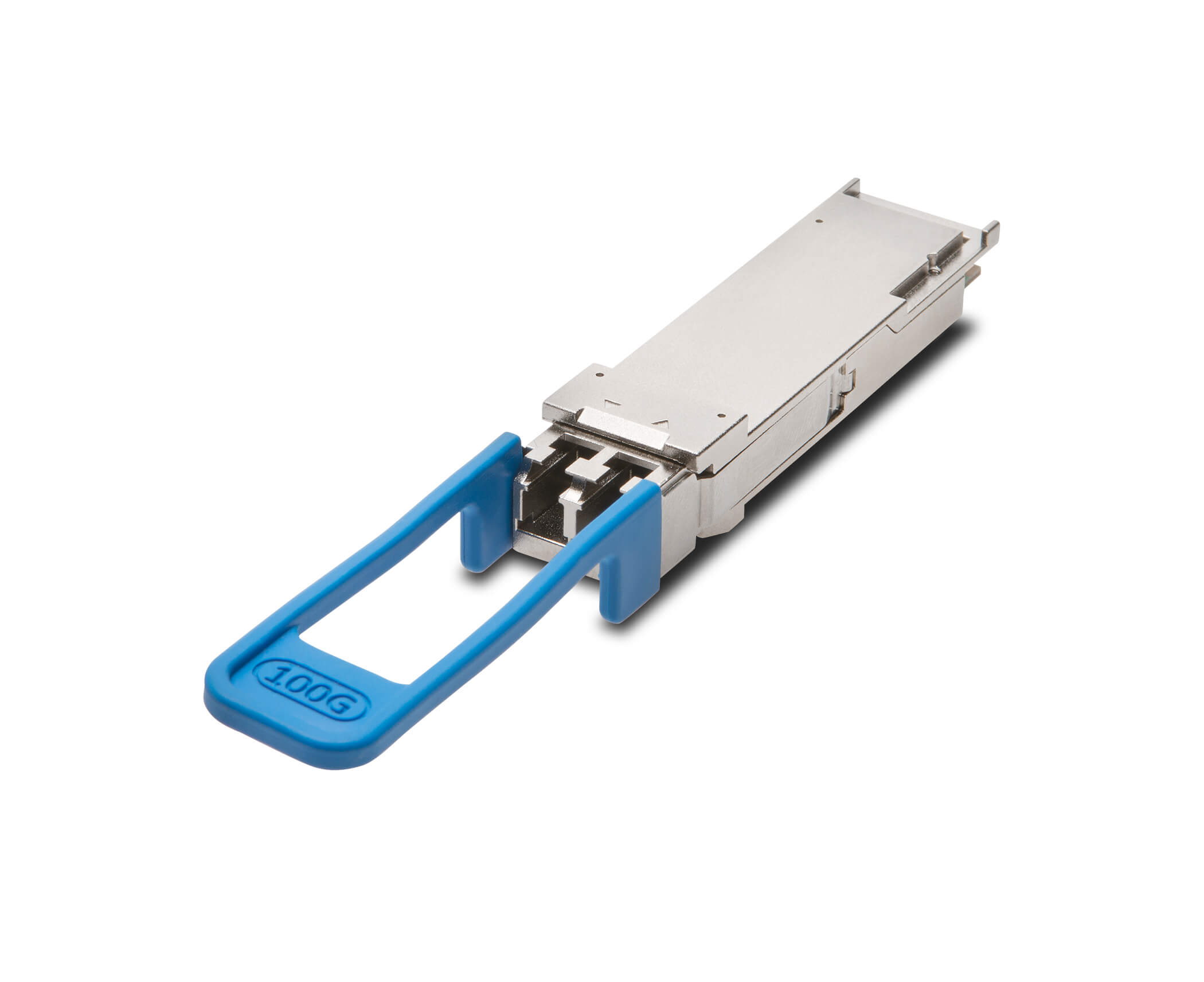

read moreCompatibel Juniper QSFP-100G-LR4-T2 100G-LR4 Ethernet only QSFP28 Module T2 Optical Transceriver
Transceiver Type:QSFP28,Connector:Standard Duplex LC,Monitoring Available:Yes,Digital Optical Monitoring:Yes,Standard: 100GBASE-LR4,Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4),IEEE 802.3ba-2010Transmitter wavelengths (range)
item no.:
100G QSFP LR4 10kmbrand:
Top-TransWarranty:
1 YearCondition:
NewTemperature:
0-70Data Rate:
100GDistance:
10kmWavelength:
DWDMConnector:
LCProduct Description:
Transceiver Type:QSFP28
Connector:Standard Duplex LC
Monitoring Available:Yes
Digital Optical Monitoring:Yes
Standard: 100GBASE-LR4
Standards compliance (Ethernet/OTN Standard, for e.g. 100GBASE-LR4)
IEEE 802.3ba-2010Transmitter wavelengths (range)
1294.53 through 1296.59 nm
1299.02 through 1301.09 nm
1303.54 through 1305.63 nm
1308.09 through 1310.19 nm
Transmitter output power, each lane (minimum):–4.3 dBm
Transmitter output power, each lane (maximum):4.5 dBm
Receiver input power, each lane (minimum)–10.6 dBm
Receiver input power, each lane (maximum)4.5 dBm
Cable type:Single-mode
Distance9/125 SMF cable, 10 km
Operating Temperature (range):0° C to 70° C
Storage temperature–40° C to 85° C
prev :
Compatible Juniper QSFP-100GBASE-CWDM QSFP28, 100GBASE-CWDM4 Optical Transcerivernext :
Compatible Juniper QSFP-100G-LR4-D 100G-LR4 Ethernet and OTN QSFP28 Module Optical TransceriverThe 100G QSFP28 100GBASE-LR4 10KM transceiver data sheet (singlemode, 1310nm, 10km) is Compatible with Linksys, Ericsson, DCN, Allied, price list on Topstar , buy it now!
Buy 100Gb/s 100GBASE-ER4 40KM QSFP28 transceiver compatible with Juniper Huawei Brocade, Force10 Networks 100GBASE-ER4 (SMF, 1310nm, 40km) & price list on Topstar, Hot pluggable QSFP28 MSA form factor,Compliant to IEEE 802.3ba 100GBASE-ER4,Up to 40km reach for G.652 SMF,Single +3.3V power supply,Operating case temperature: 0~70oC,Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm),Receiver: 4x25Gb/s PIN ROSA,4x28G Electrical Serial Interface (CEI-28G-VSR),Maximum power consumption 4.0W,Duplex LC receptacle,RoHS-6 compliant
This product is a 100Gb/s transceiver module,which is 10GBASE 100G QSFP28 CWDM 2KM. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
The 100G QSFP28 100GBASE-SR4 module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
This product is a 100Gb/s transceiver module designed for optical communication applications compliant with the QSFP MSA,CWDM4 MSA and portions of IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.
This product is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
